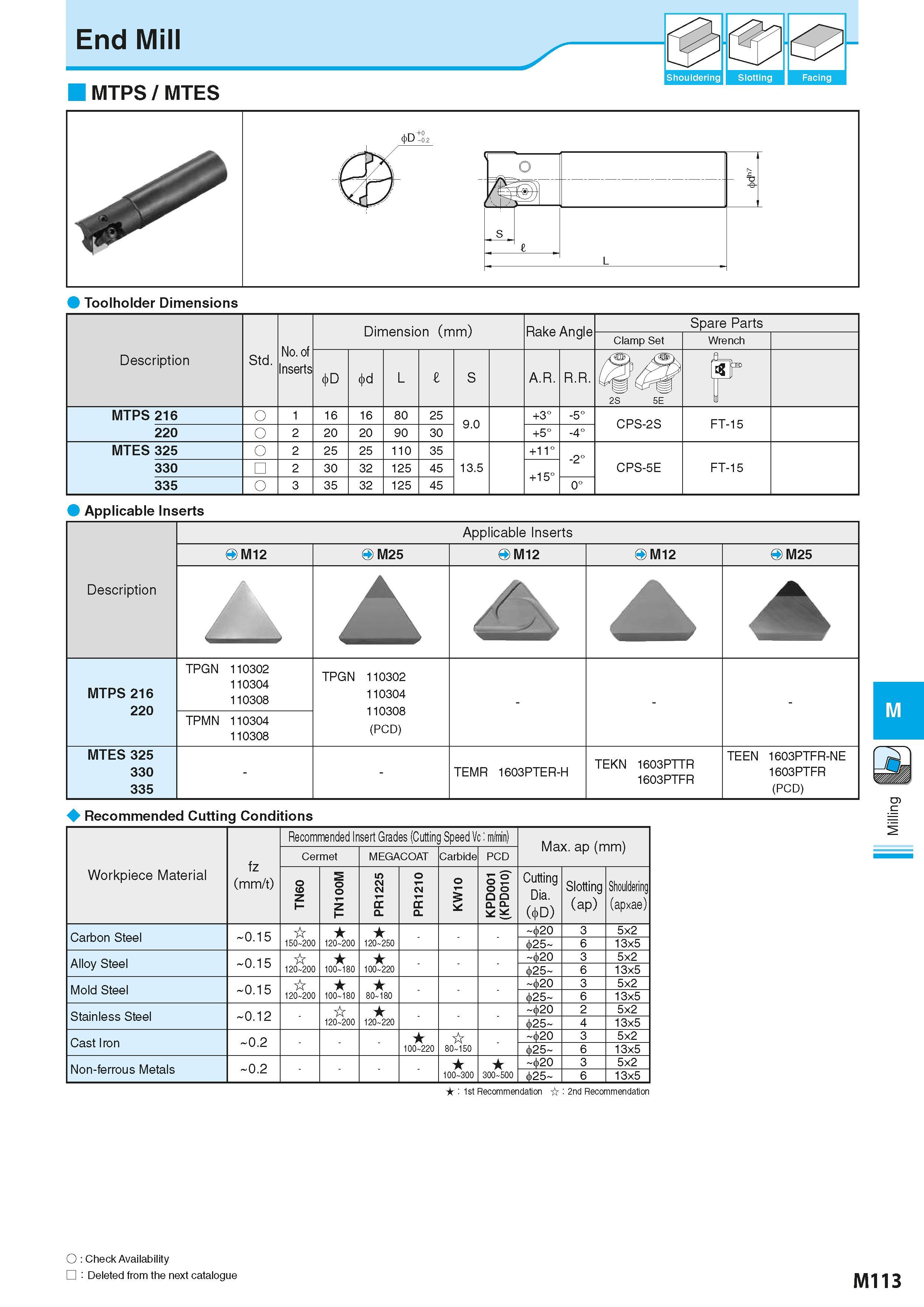

Shouldering Slotting Facing MTPS / MTES ( y o i p -& S e L Toolholder Dimensions Description Обозначение инструмента для заказа Std. No. of Inserts Dimension (mm) Размеры инструмента указаны в мм Rake Angle Spare Parts Clamp Set Wrench D d L 1 S A.R. R.R. 2S 5E MTPS 216 O 1 16 16 80 25 9.0 +3° -5° CPS-2S FT-15 220 O 2 20 20 90 30 +5° -4° MTES 325 O 2 25 25 110 35 13.5 +11° -2° CPS-5E FT-15 330 2 30 32 125 45 +15° 335 O 3 35 32 125 45 0° Applicable Inserts Description Applicable Inserts OM12 OM25 OM12 OM12 OM25 A A A MTPS 216 220 TPGN 110302 110304 110308 TPGN 110302 110304 110308 (PCD) - TPMN 110304 110308 MTES 325 330 335 TEMR 1603PTER-H TEKN 1603PTTR 1603PTFR TEEN 1603PTFR-NE 1603PTFR (PCD) Recommended Cutting Conditions Recommended Insert Grades (Cutting Speed Vc: m/min) Max. ap (mm) fz (mm/t) Cermet MEGACOAT Carbide PCD Workpiece Material TN60 TN100M PR1225 PR1210 KW10 KPD001 (KPD010) Cutting Dia. ( D) Slotting (ap) Shouldering (apxae) Carbon Steel 0.15 - 20 3 5x2 150-200 120-200 120-250 25- 6 13x5 Alloy Steel 0.15 - 20 3 5x2 120-200 100-180 100-220 25- 6 13x5 Mold Steel 0.15 - 20 3 5x2 120-200 100-180 80-180 25- 6 13x5 Stainless Steel 0.12 - 20 2 5x2 120-200 120-220 25- 4 13x5 Cast Iron 0.2 - 20 3 5x2 100-220 80-150 25- 6 13x5 Non-ferrous Metals 0.2 - 20 3 5x2 100-300 300-500 25- 6 13x5 1st Recommendation 2nd Recommendation O Check Availability Deleted from the next catalogue M113
