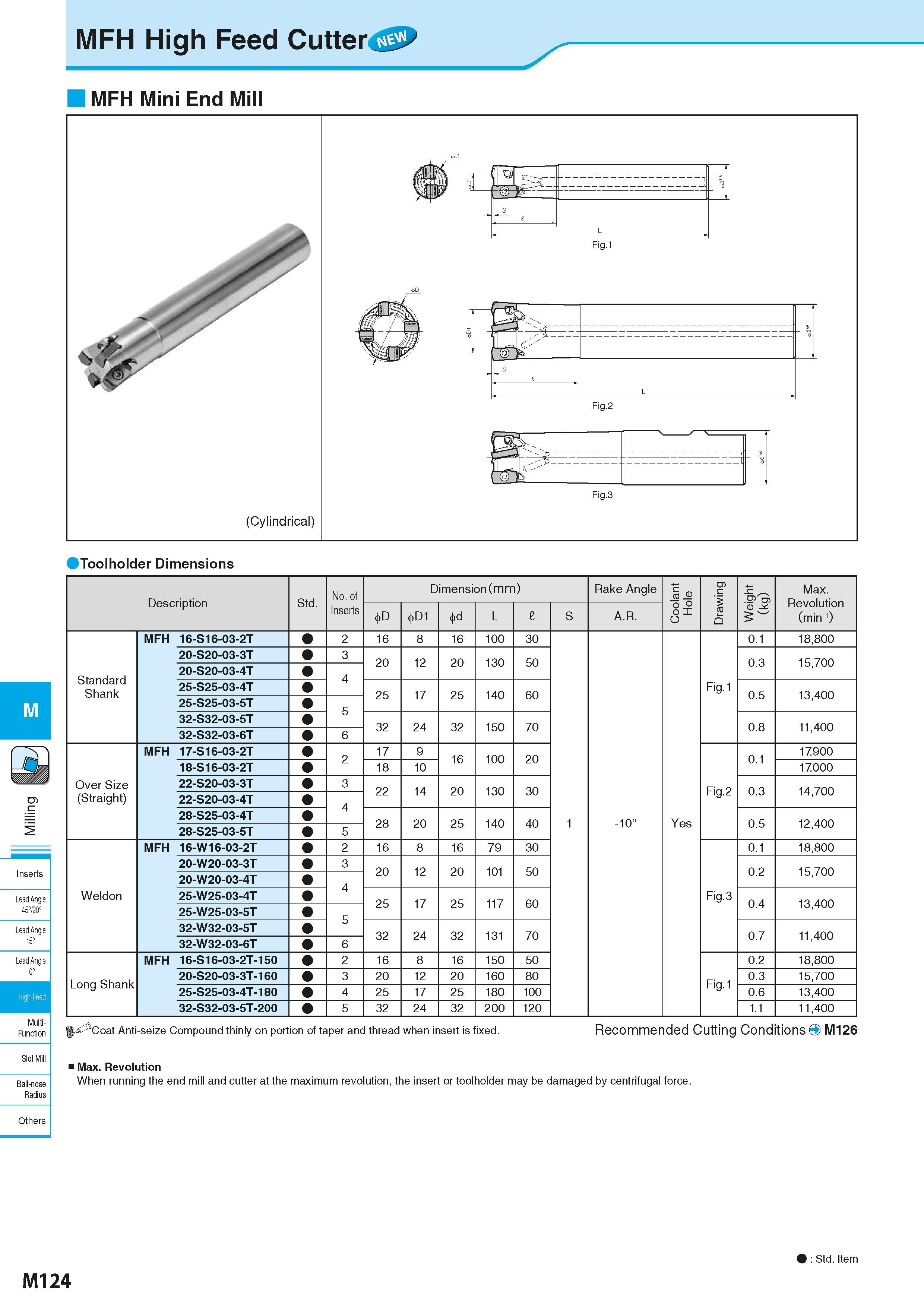

MFH High Feed Cutter 0> MFH Mini End Mill Toolholder Dimensions Std. No. of Dimension (mm) Размеры инструмента указаны в мм Rake Angle Coolant Hole Drawing Weight (kg) Max. Revolution (min-1) Inserts D D1 d L I S A.R. MFH 16-S16-03-2T 2 16 8 16 100 30 0.1 18,800 20-S20-03-3T 3 20 12 20 130 50 0.3 15,700 Standard Shank 20-S20-03-4T 4 25-S25-03-4T 25 17 25 140 60 Fig.1 0.5 13,400 25-S25-03-5T 5 32-S32-03-5T 32 24 32 150 70 0.8 11,400 32-S32-03-6T 6 MFH 17-S16-03-2T 2 17 9 16 100 20 0.1 17900 18-S16-03-2T 18 10 17000 Over Size 22-S20-03-3T 3 22 14 20 130 30 Fig.2 0.3 14,700 (Straight) 22-S20-03-4T 4 28-S25-03-4T 28 20 25 140 40 1 -10° Yes 0.5 12,400 28-S25-03-5T 5 MFH 16-W16-03-2T 2 16 8 16 79 30 0.1 18,800 20-W20-03-3T 3 20 12 20 101 50 0.2 15,700 20-W20-03-4T 4 Weldon 25-W25-03-4T 25 17 25 117 60 Fig.3 0.4 13,400 25-W25-03-5T 5 32-W32-03-5T 32 24 32 131 70 0.7 11,400 32-W32-03-6T 6 MFH 16-S16-03-2T-150 2 16 8 16 150 50 0.2 18,800 Long Shank 20-S20-03-3T-160 3 20 12 20 160 80 Fig.1 0.3 15,700 25-S25-03-4T-180 4 25 17 25 180 100 0.6 13,400 32-S32-03-5T-200 5 32 24 32 200 120 1.1 11,400 Lead Angle 45720° Lead Angle 15° Lead Angle 0° Multi- Function Ball-nose Radius I Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. Recommended Cutting Conditions O M126 Max. Revolution When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. Slot Mi M124 Std. Item
