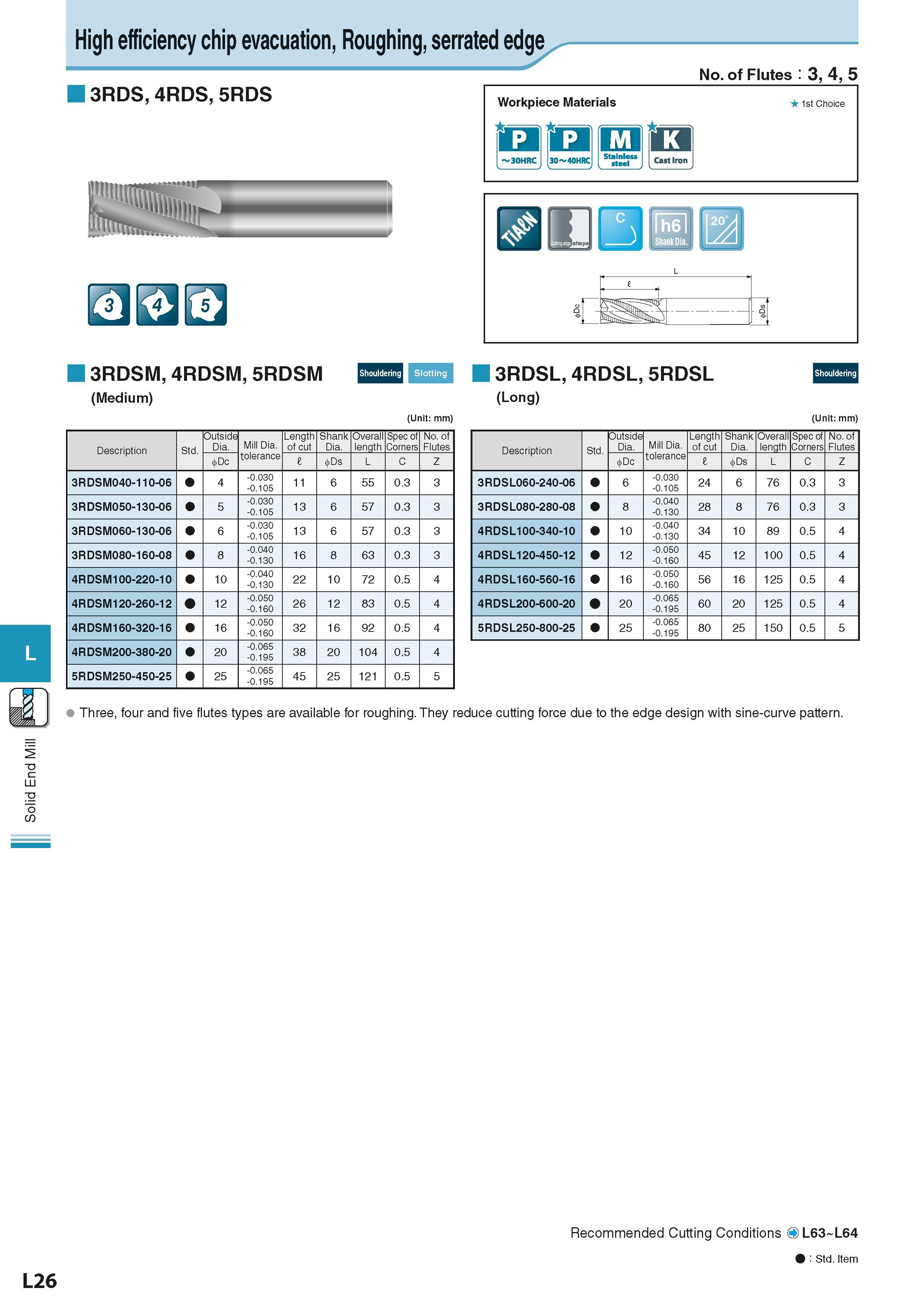

Solid End Mill High efficiency chip evacuation, Roughing, serrated edge 3RDS, 4RDS, 5RDS m No. of Flutes 3, 4, 5 Workpiece Materials Группы обрабатываемых материалов по ISO 1st Choice a i a irai ro I ml 'J1"61 I Cutting adgs.shape I I Shank 013. 1 - Illls -1 3RDSM, 4RDSM, 5RDSM (Medium) Shouldering Slotting (Unit: mm) Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length Spec of Corners No. of Flutes Dc I Ds L C Z 3RDSM040-110-06 4 -0.030 -0.105 11 6 55 0.3 3 3RDSM050-130-06 5 -0.030 -0.105 13 6 57 0.3 3 3RDSM060-130-06 6 -0.030 -0.105 13 6 57 0.3 3 3RDSM080-160-08 8 -0.040 -0.130 16 8 63 0.3 3 4RDSM100-220-10 10 -0.040 -0.130 22 10 72 0.5 4 4RDSM120-260-12 12 -0.050 -0.160 26 12 83 0.5 4 4RDSM160-320-16 16 -0.050 -0.160 32 16 92 0.5 4 4RDSM200-380-20 20 -0.065 -0.195 38 20 104 0.5 4 5RDSM250-450-25 25 -0.065 -0.195 45 25 121 0.5 5 3RDSL, 4RDSL, 5RDSL (Long) (Unit: mm) Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length Spec of Corners No. of Flutes Dc I Ds L C Z 3RDSL060-240-06 6 -0.030 -0.105 24 6 76 0.3 3 3RDSL080-280-08 8 -0.040 -0.130 28 8 76 0.3 3 4RDSL100-340-10 10 -0.040 -0.130 34 10 89 0.5 4 4RDSL120-450-12 12 -0.050 -0.160 45 12 100 0.5 4 4RDSL160-560-16 16 -0.050 -0.160 56 16 125 0.5 4 4RDSL200-600-20 20 -0.065 -0.195 60 20 125 0.5 4 5RDSL250-800-25 25 -0.065 -0.195 80 25 150 0.5 5 Three, four and five flutes types are available for roughing. They reduce cutting force due to the edge design with sine-curve pattern. C L Recommended Cutting Conditions OL63 L64 Std. Item L26
