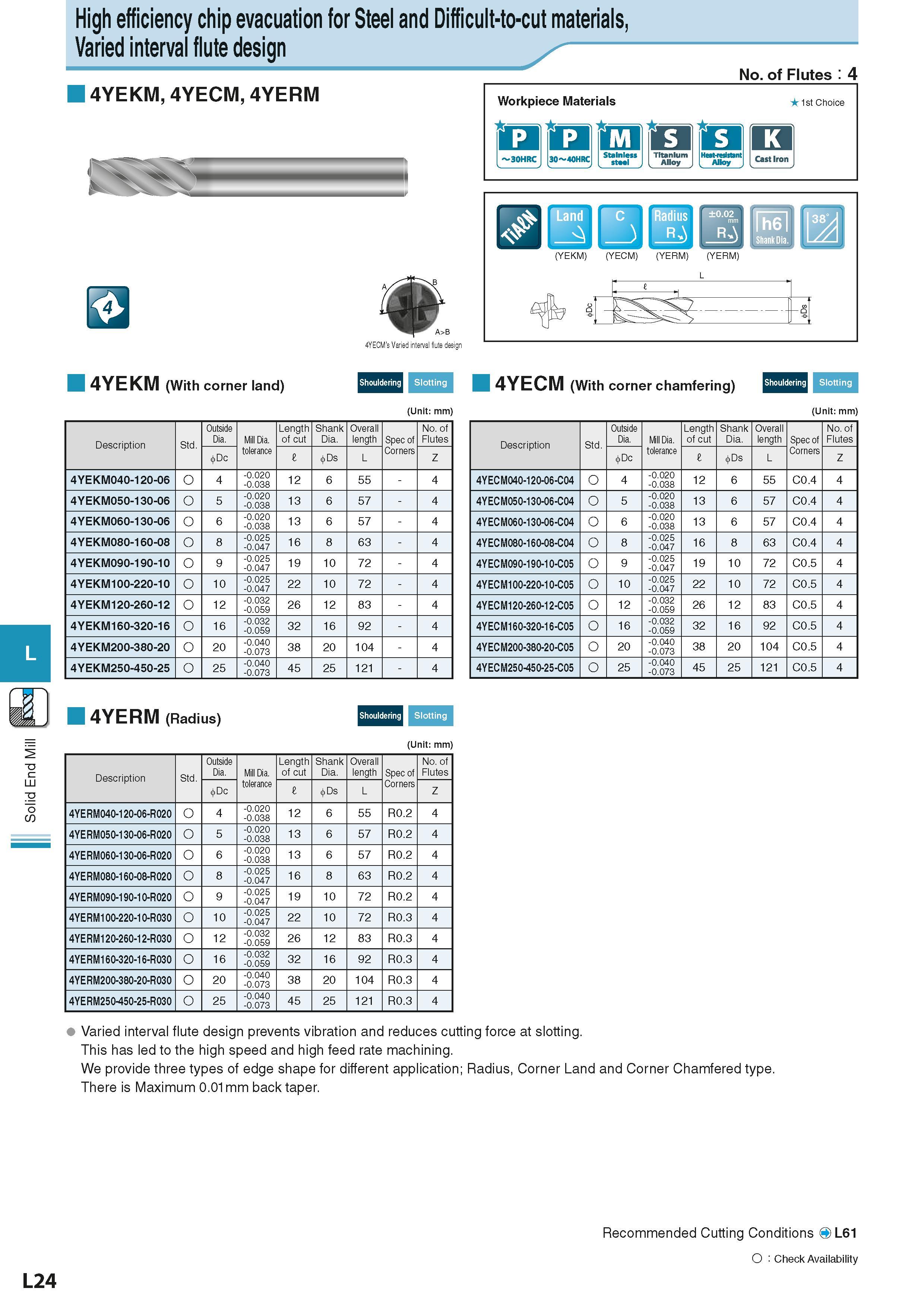

Solid End Mill High efficiency chip evacuation for Steel and Difficult-to-cut materials, Varied interval flute design 4YEKM, 4YECM, 4YERM m A>B 4YECM’s Varied interval flute desigr No. of Flutes 4 Workpiece Materials Группы обрабатываемых материалов по ISO 1st Choice iJ) 11311711 raw Stainless StMl Titanium Alloy Heat-resistant Alloy Land C I I Radius -> (YEKM) (YECM) (YERM) 4YEKM (With corner land) Shouldering Slotting 4YECM (With corner chamfering) Shouldering Slotting (Unit: mm) (Unit: mm) L Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length Spec of Corners No. of Flutes Dc I 4>Ds L Z 4YEKM040-120-06 O 4 -0.020 -0.038 12 6 55 - 4 4YEKM050-130-06 O 5 -0.020 -0.038 13 6 57 - 4 4YEKM060-130-06 O 6 -0.020 -0.038 13 6 57 - 4 4YEKM080-160-08 O 8 -0.025 -0.047 16 8 63 - 4 4YEKM090-190-10 O 9 -0.025 -0.047 19 10 72 - 4 4YEKM100-220-10 O 10 -0.025 -0.047 22 10 72 - 4 4YEKM120-260-12 O 12 -0.032 -0.059 26 12 83 - 4 4YEKM160-320-16 O 16 -0.032 -0.059 32 16 92 - 4 4YEKM200-380-20 O 20 -0.040 -0.073 38 20 104 - 4 4YEKM250-450-25 O 25 -0.040 -0.073 45 25 121 - 4 4YERM (Radius) Shouldering Slotting (Unit: mm) Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length Spec of Corners No. of Flutes Dc I 4>Ds L Z 4YECM040-120-06-C04 O 4 -0.020 -0.038 12 6 55 C0.4 4 4YECM050-130-06-C04 O 5 -0.020 -0.038 13 6 57 C0.4 4 4YECM060-130-06-C04 O 6 -0.020 -0.038 13 6 57 C0.4 4 4YECM080-160-08-C04 O 8 -0.025 -0.047 16 8 63 C0.4 4 4YECM090-190-10-C05 O 9 -0.025 -0.047 19 10 72 C0.5 4 4YECM100-220-10-C05 O 10 -0.025 -0.047 22 10 72 C0.5 4 4YECM120-260-12-C05 O 12 -0.032 -0.059 26 12 83 C0.5 4 4YECM160-320-16-C05 O 16 -0.032 -0.059 32 16 92 C0.5 4 4YECM200-380-20-C05 O 20 -0.040 -0.073 38 20 104 C0.5 4 4YECM250-450-25-C05 O 25 -0.040 -0.073 45 25 121 C0.5 4 Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length Spec of Corners No. of Flutes Dc I 4>Ds L Z 4YERM040-120-06-R020 O 4 -0.020 -0.038 12 6 55 R0.2 4 4YERM050-130-06-R020 O 5 -0.020 -0.038 13 6 57 R0.2 4 4YERM060-130-06-R020 O 6 -0.020 -0.038 13 6 57 R0.2 4 4YERM080-160-08-R020 O 8 -0.025 -0.047 16 8 63 R0.2 4 4YERM090-190-10-R020 O 9 -0.025 -0.047 19 10 72 R0.2 4 4YERM100-220-10-R030 O 10 -0.025 -0.047 22 10 72 R0.3 4 4YERM120-260-12-R030 O 12 -0.032 -0.059 26 12 83 R0.3 4 4YERM160-320-16-R030 O 16 -0.032 -0.059 32 16 92 R0.3 4 4YERM200-380-20-R030 O 20 -0.040 -0.073 38 20 104 R0.3 4 4YERM250-450-25-R030 O 25 -0.040 -0.073 45 25 121 R0.3 4 Varied interval flute design prevents vibration and reduces cutting force at slotting. This has led to the high speed and high feed rate machining. We provide three types of edge shape for different application; Radius, Corner Land and Corner Chamfered type. There is Maximum 0.01mm back taper. L24 Recommended Cutting Conditions OL61 O Check Availability
