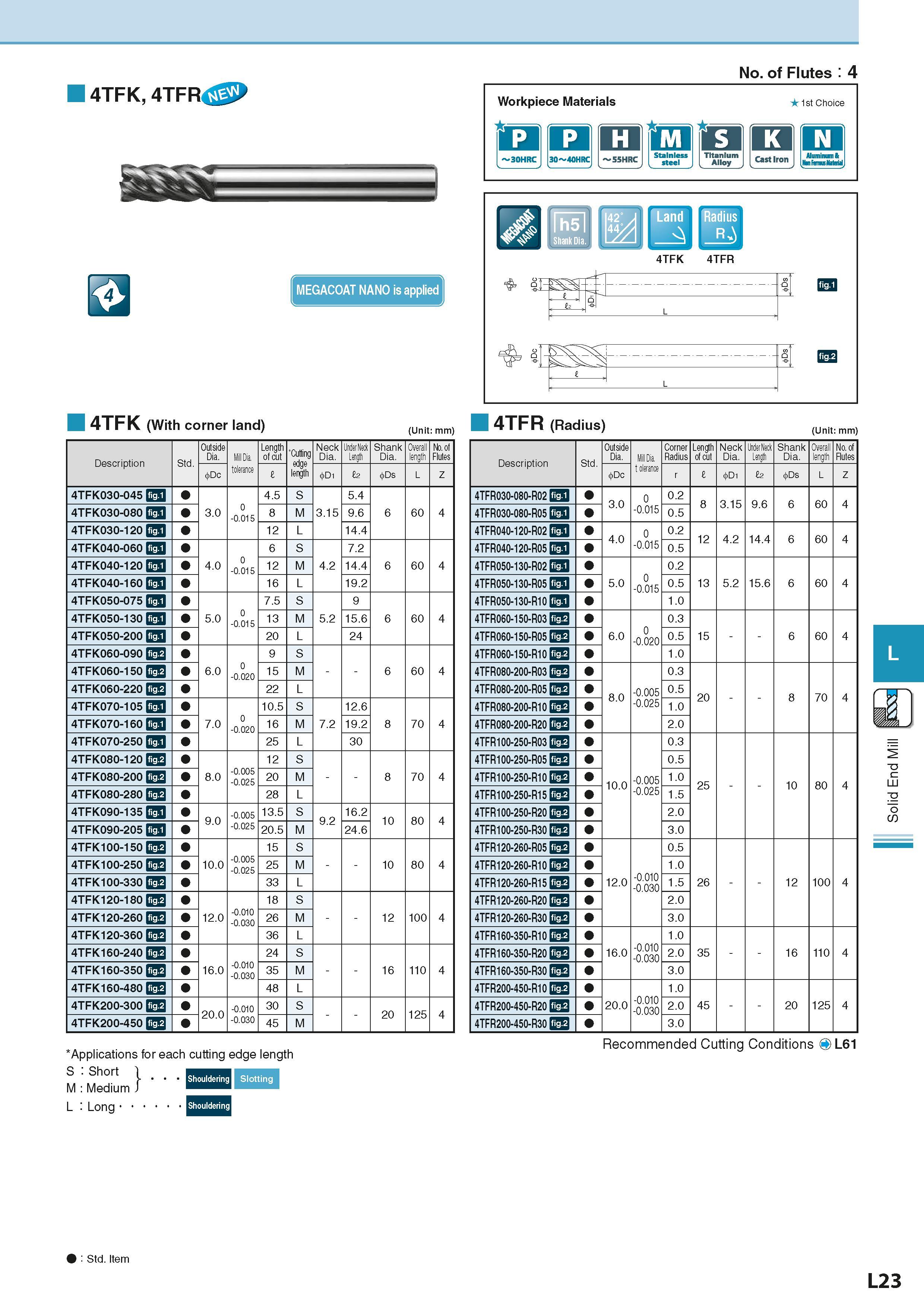

637 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.L23

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. L23 0637 Lab2u

4TFK, 4TFR Sg MEGACOAT NANO is applied No. of Flutes 4 Workpiece Materials Группы обрабатываемых материалов по ISO 1st Choice 30HRC 30 40HRC 55HRC Stainless Titanium steel j I Alloy Land I Radius l R 4TFK 4TFR fig.1 4TFK (With corner land) Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut ‘Cutting edge length Neck Dia. Under Neck Length Shank Dia. Overall length No. of Flutes 4>Dc I D1 £2 4>Ds L Z 4TFK030-045 fig.1 3.0 0 -0.015 4.5 S 3.15 5.4 6 60 4 4TFK030-080 fig.1 8 M 9.6 4TFK030-120 fig.1 12 L 14.4 4TFK040-060 fig.1 4.0 0 -0.015 6 S 4.2 7.2 6 60 4 4TFK040-120 fig.1 12 M 14.4 4TFK040-160 fig.1 16 L 19.2 4TFK050-075 fig.1 5.0 0 -0.015 7.5 S 5.2 9 6 60 4 4TFK050-130 fig.1 13 M 15.6 4TFK050-200 fig.1 20 L 24 4TFK060-090 fig.2 6.0 0 -0.020 9 S 6 60 4 4TFK060-150 fig.2 15 M 4TFK060-220 fig.2 22 L 4TFK070-105 fig.1 7.0 0 -0.020 10.5 S 7.2 12.6 8 70 4 4TFK070-160 fig.1 16 M 19.2 4TFK070-250 fig.1 25 L 30 4TFK080-120 fig.2 8.0 -0.005 -0.025 12 S 8 70 4 4TFK080-200 fig.2 20 M 4TFK080-280 fig.2 28 L 4TFK090-135 fig.1 9.0 -0.005 -0.025 13.5 S 9.2 16.2 10 80 4 4TFK090-205 fig.1 20.5 M 24.6 4TFK100-150 fig.2 10.0 -0.005 -0.025 15 S 10 80 4 4TFK100-250 fig.2 25 M 4TFK100-330 fig.2 33 L 4TFK120-180 fig.2 12.0 -0.010 -0.030 18 S 12 100 4 4TFK120-260 fig.2 26 M 4TFK120-360 fig.2 36 L 4TFK160-240 fig.2 16.0 -0.010 -0.030 24 S 16 110 4 4TFK160-350 fig.2 35 M 4TFK160-480 fig.2 48 L 4TFK200-300 fig.2 20.0 -0.010 -0.030 30 S 20 125 4 4TFK200-450 fig.2 45 M ‘Applications for each cutting edge length S Short 1 M Medium ) L Long Shouldering Slotting Shouldering o i L fig.2 (Unit: mm) 4TFR (Radius) (Unit: mm) Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. Corner Radius Length of cut Neck Dia. Under Neck Length Shank Dia. Overall length No. of Flutes 4>Dc t olerance r I D1 £2 4>Ds L Z 4TFR030-080-R02 fig.1 3.0 0 0.2 8 3.15 9.6 6 60 4 4TFR030-080-R05 fig.1 -0.015 0.5 4TFR040-120-R02 fig.1 4.0 0 0.2 12 4.2 14.4 6 60 4 4TFR040-120-R05 fig.1 -0.015 0.5 4TFR050-130-R02 fig.1 0.2 4TFR050-130-R05 fig.1 5.0 0 -0.015 0.5 13 5.2 15.6 6 60 4 4TFR050-130-R10 fig.1 1.0 4TFR060-150-R03 fig.2 0.3 4TFR060-150-R05 fig.2 6.0 0 -0.020 0.5 15 6 60 4 4TFR060-150-R10 fig.2 1.0 4TFR080-200-R03 fig.2 0.3 4TFR080-200-R05 fig.2 8.0 -0.005 0.5 20 8 70 4 4TFR080-200-R10 fig.2 -0.025 1.0 4TFR080-200-R20 fig.2 2.0 4TFR100-250-R03 fig.2 0.3 4TFR100-250-R05 fig.2 0.5 4TFR100-250-R10 fig.2 10.0 -0.005 1.0 25 10 80 4 4TFR100-250-R15 fig.2 -0.025 1.5 4TFR100-250-R20 fig.2 2.0 4TFR100-250-R30 fig.2 3.0 4TFR120-260-R05 fig.2 0.5 4TFR120-260-R10 fig.2 -0.010 -0.030 1.0 4TFR120-260-R15 fig.2 12.0 1.5 26 12 100 4 4TFR120-260-R20 fig.2 2.0 4TFR120-260-R30 fig.2 3.0 4TFR160-350-R10 fig.2 -0.010 -0.030 1.0 4TFR160-350-R20 fig.2 16.0 2.0 35 16 110 4 4TFR160-350-R30 fig.2 3.0 4TFR200-450-R10 fig.2 -0.010 -0.030 1.0 4TFR200-450-R20 fig.2 20.0 2.0 45 20 125 4 4TFR200-450-R30 fig.2 3.0 Recommended Cutting Conditions OL61 L Std. Item L23 Solid End Mill
