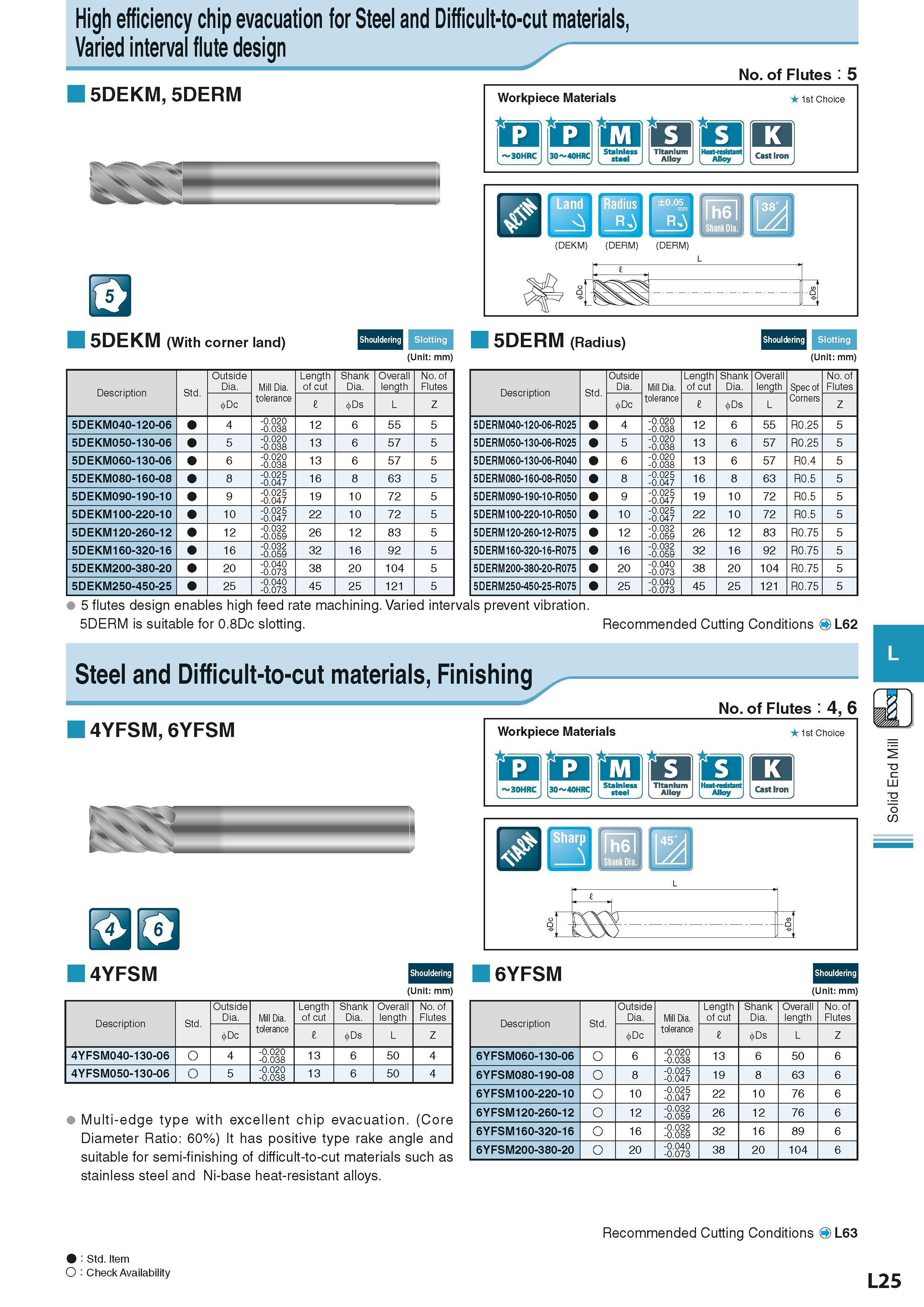

High efficiency chip evacuation for Steel and Difficult-to-cut materials, Varied interval flute design 5DEKM, 5DERM No. of Flutes 5 Workpiece Materials Группы обрабатываемых материалов по ISO 1st Choice Ul Q tea o 1 Kl 30HRC 30 40HRC Stainless steel Titanium Alloy Heat-resistant Alloy v Cast Iron J (DEKM) (DERM) (DERM) 5DEKM (With corner land) Shouldering Slotting (Unit: mm) 5DERM (Radius) Shouldering Slotting (Unit: mm) Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes Dc I Ds L Z 5DEKM040-120-06 N 4 -0.020 -0.038 12 6 55 5 5DEKM050-130-06 N 5 -0.020 -0.038 13 6 57 5 5DEKM060-130-06 N 6 -0.020 -0.038 13 6 57 5 5DEKM080-160-08 N 8 -0.025 -0.047 16 8 63 5 5DEKM090-190-10 N 9 -0.025 -0.047 19 10 72 5 5DEKM100-220-10 N 10 -0.025 -0.047 22 10 72 5 5DEKM120-260-12 N 12 -0.032 -0.059 26 12 83 5 5DEKM160-320-16 N 16 -0.032 -0.059 32 16 92 5 5DEKM200-380-20 N 20 -0.040 -0.073 38 20 104 5 5DEKM250-450-25 N 25 -0.040 -0.073 45 25 121 5 Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length Spec of Corners No. of Flutes Dc I Ds L Z 5DERM040-120-06-R025 N 4 -0.020 -0.038 12 6 55 R0.25 5 5DERM050-130-06-R025 N 5 -0.020 -0.038 13 6 57 R0.25 5 5DERM060-130-06-R040 N 6 -0.020 -0.038 13 6 57 R0.4 5 5DERM080-160-08-R050 N 8 -0.025 -0.047 16 8 63 R0.5 5 5DERM090-190-10-R050 N 9 -0.025 -0.047 19 10 72 R0.5 5 5DERM100-220-10-R050 N 10 -0.025 -0.047 22 10 72 R0.5 5 5DERM120-260-12-R075 N 12 -0.032 -0.059 26 12 83 R0.75 5 5DERM160-320-16-R075 N 16 -0.032 -0.059 32 16 92 R0.75 5 5DERM200-380-20-R075 N 20 -0.040 -0.073 38 20 104 R0.75 5 5DERM250-450-25-R075 N 25 -0.040 -0.073 45 25 121 R0.75 5 5 flutes design enables high feed rate machining. Varied intervals prevent vibration. 5DERM is suitable for 0.8Dc slotting. Steel and Difficult-to-cut materials, Finishing Recommended Cutting Conditions OL62 No. of Flutes 4, 6 4YFSM, 6YFSM Workpiece Materials Группы обрабатываемых материалов по ISO 1st Choice is m 4YFSM -1 6YFSM (Unit: mm) (Unit: mm) L L Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes Dc I Ds L Z 4YFSM040-130-06 O 4 -0.020 -0.038 13 6 50 4 4YFSM050-130-06 O 5 -0.020 -0.038 13 6 50 4 Multi-edge type with excellent chip evacuation. (Core Diameter Ratio: 60%) It has positive type rake angle and suitable for semi-finishing of difficult-to-cut materials such as stainless steel and Ni-base heat-resistant alloys. Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes Dc I Ds L Z 6YFSM060-130-06 O 6 -0.020 -0.038 13 6 50 6 6YFSM080-190-08 O 8 -0.025 -0.047 19 8 63 6 6YFSM100-220-10 O 10 -0.025 -0.047 22 10 76 6 6YFSM120-260-12 O 12 -0.032 -0.059 26 12 76 6 6YFSM160-320-16 O 16 -0.032 -0.059 32 16 89 6 6YFSM200-380-20 O 20 -0.040 -0.073 38 20 104 6 Recommended Cutting Conditions OL63 9 Std. Item O Check Availability L25 Solid End Mill
