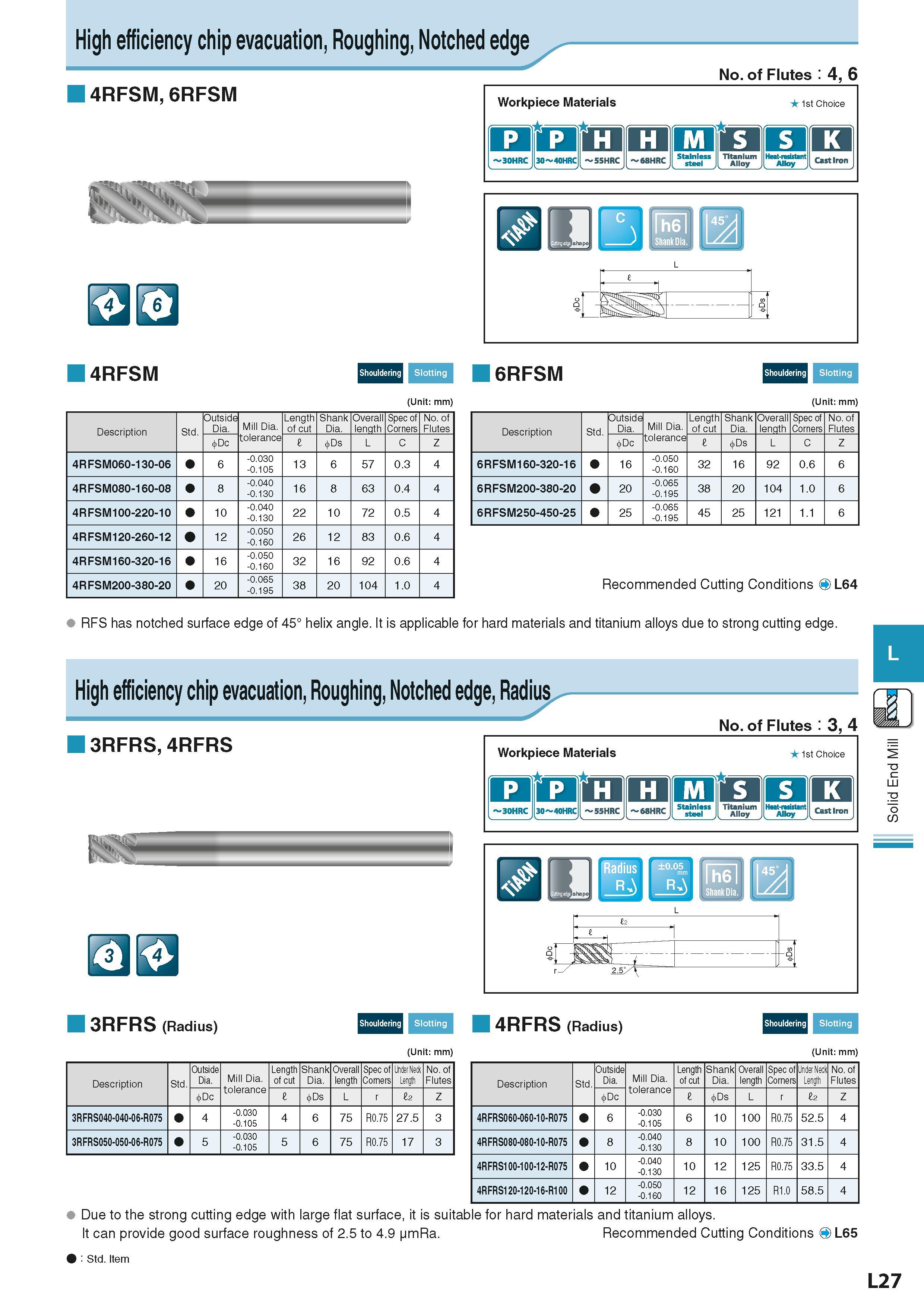

High efficiency chip evacuation, Roughing, Notched edge 4RFSM, 6RFSM No. of Flutes 4, 6 Workpiece Materials Группы обрабатываемых материалов по ISO 1st Choice a a IP nr fliM IP 30HRC 130 40 HRC 1 55HRC 68HRC Stainless steel Titanium Alloy Heat-resistant MU>y . Cast Iron 4RFSM < 1 HI I Cutting adgs.shape I I Shank 013. - 1 - o Shouldering Slotting (Unit: mm) 6RFSM Shouldering Slotting (Unit: mm) Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length Spec of Corners No. of Flutes Dc I 4>Ds L C Z 4RFSM060-130-06 6 O Lfi o O 1- 13 6 57 0.3 4 4RFSM080-160-08 8 -0.040 -0.130 16 8 63 0.4 4 4RFSM100-220-10 10 -0.040 -0.130 22 10 72 0.5 4 4RFSM120-260-12 12 -0.050 -0.160 26 12 83 0.6 4 4RFSM160-320-16 16 -0.050 -0.160 32 16 92 0.6 4 4RFSM200-380-20 20 -0.065 -0.195 38 20 104 1.0 4 Description Std Outside Dia. Mill Dia. Length of cut Shank Dia. Overall length Spec of Corners No. of Flutes Dc tolerance I Ds L C Z 6RFSM160-320-16 16 -0.050 -0.160 32 16 92 0.6 6 6RFSM200-380-20 20 -0.065 -0.195 38 20 104 1.0 6 6RFSM250-450-25 25 -0.065 -0.195 45 25 121 1.1 6 Recommended Cutting Conditions OL64 RFS has notched surface edge of 45° helix angle. It is applicable for hard materials and titanium alloys due to strong cutting edge. High efficiency chip evacuation, Roughing, Notched edge, Radius 3RFRS, 4RFRS No. of Flutes 3, 4 Workpiece Materials Группы обрабатываемых материалов по ISO 1st Choice 30HRC 30 40HRC 55HRC 68HRC St J“ Alloy m 3RFRS (Radius) Shouldering Slotting (Unit: mm) 4RFRS (Radius) Shouldering Slotting (Unit: mm) Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length Spec of Corners Under Neck Length No. of Flutes Dc I Ds L 12 Z 3RFRS040-040-06-R075 4 -0.030 -0.105 4 6 75 R0.75 27.5 3 3RFRS050-050-06-R075 5 -0.030 -0.105 5 6 75 R0.75 17 3 Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length Spec of Corners Under Neck Length No. of Flutes Dc I Ds L 12 Z 4RFRS060-060-10-R075 6 -0.030 -0.105 6 10 100 R0.75 52.5 4 4RFRS080-080-10-R075 8 -0.040 -0.130 8 10 100 R0.75 31.5 4 4RFRS100-100-12-R075 10 -0.040 -0.130 10 12 125 R0.75 33.5 4 4RFRS120-120-16-R100 12 -0.050 -0.160 12 16 125 R1.0 58.5 4 Due to the strong cutting edge with large flat surface, it is suitable for hard materials and titanium alloys. It can provide good surface roughness of 2.5 to 4.9 pmRa. Recommended Cutting Conditions O L65 Std. Item C L L27 Solid End Mill
