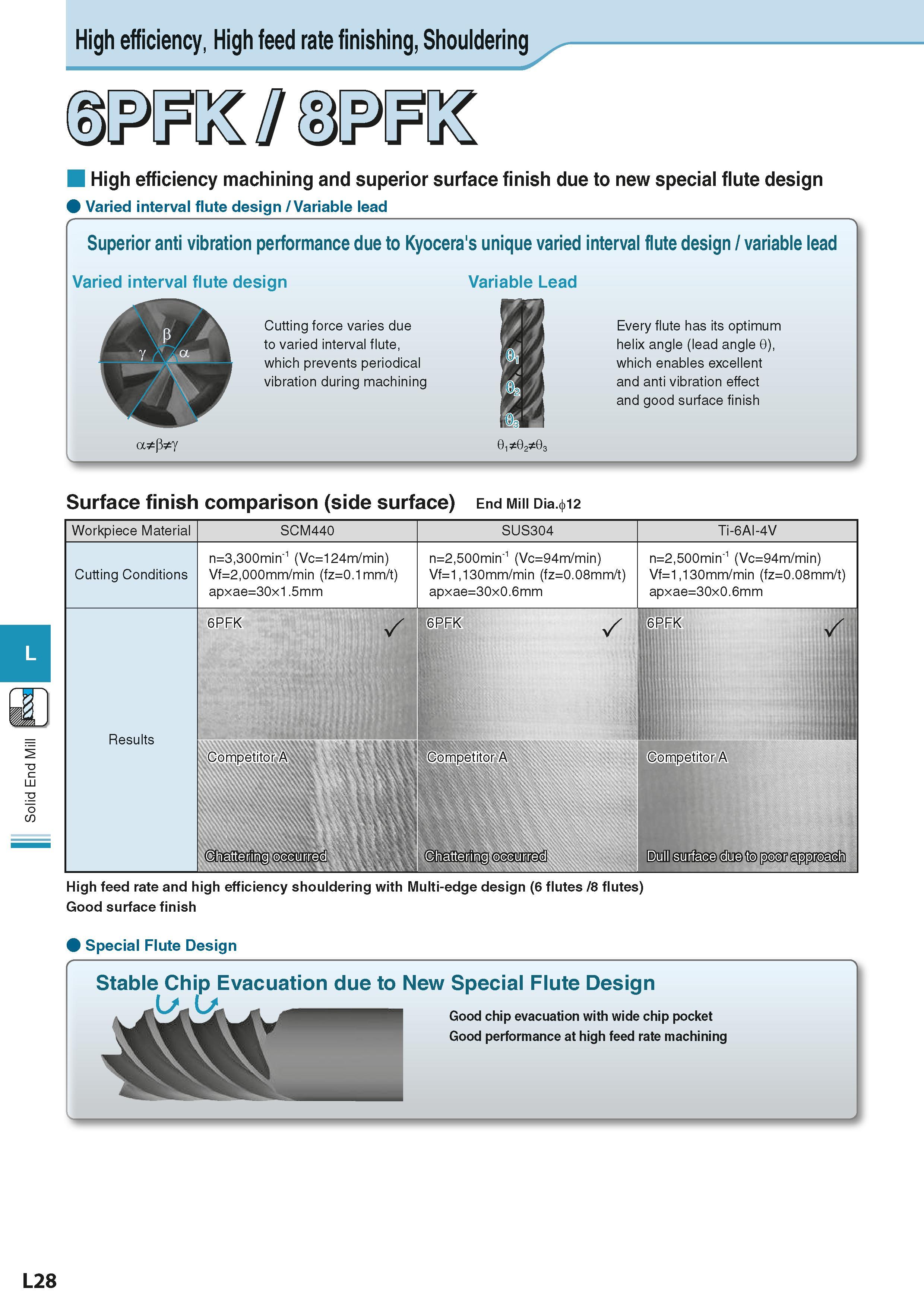

Solid End Mill High efficiency, High feed rate finishing, Shouldering High efficiency machining and superior surface finish due to new special flute design Varied interval flute design / Variable lead Superior anti vibration performance due to Kyocera's unique varied interval flute design / variable lead Varied interval flute design Cutting force varies due to varied interval flute, which prevents periodical vibration during machining a p y Variable Lead Every flute has its optimum helix angle (lead angle 0), which enables excellent and anti vibration effect and good surface finish Wk 01 02 03 Surface finish comparison (side surface) End Mill Dia. 12 Workpiece Material SCM440 SUS304 Ti-6AI-4V Cutting Conditions n=3,300min-1 (Vc=124m/min) Vf=2,000mm/min (fz=0.1mm/t) apxae=30x1.5mm n=2,500min-1 (Vc=94m/min) Vf=1,130mm/min (fz=0.08mm/t) apxae=30x0.6mm n=2,500min-1 (Vc=94m/min) Vf=1,130mm/min (fz=0.08mm/t) apxae=30x0.6mm High feed rate and high efficiency shouldering with Multi-edge design (6 flutes /8 flutes) Good surface finish Special Flute Design r > Stable Chip Evacuation due to New Special Flute Design I 1 ’ 'sKs Good chip evacuation with wide chip pocket Good performance at high feed rate machining L28
