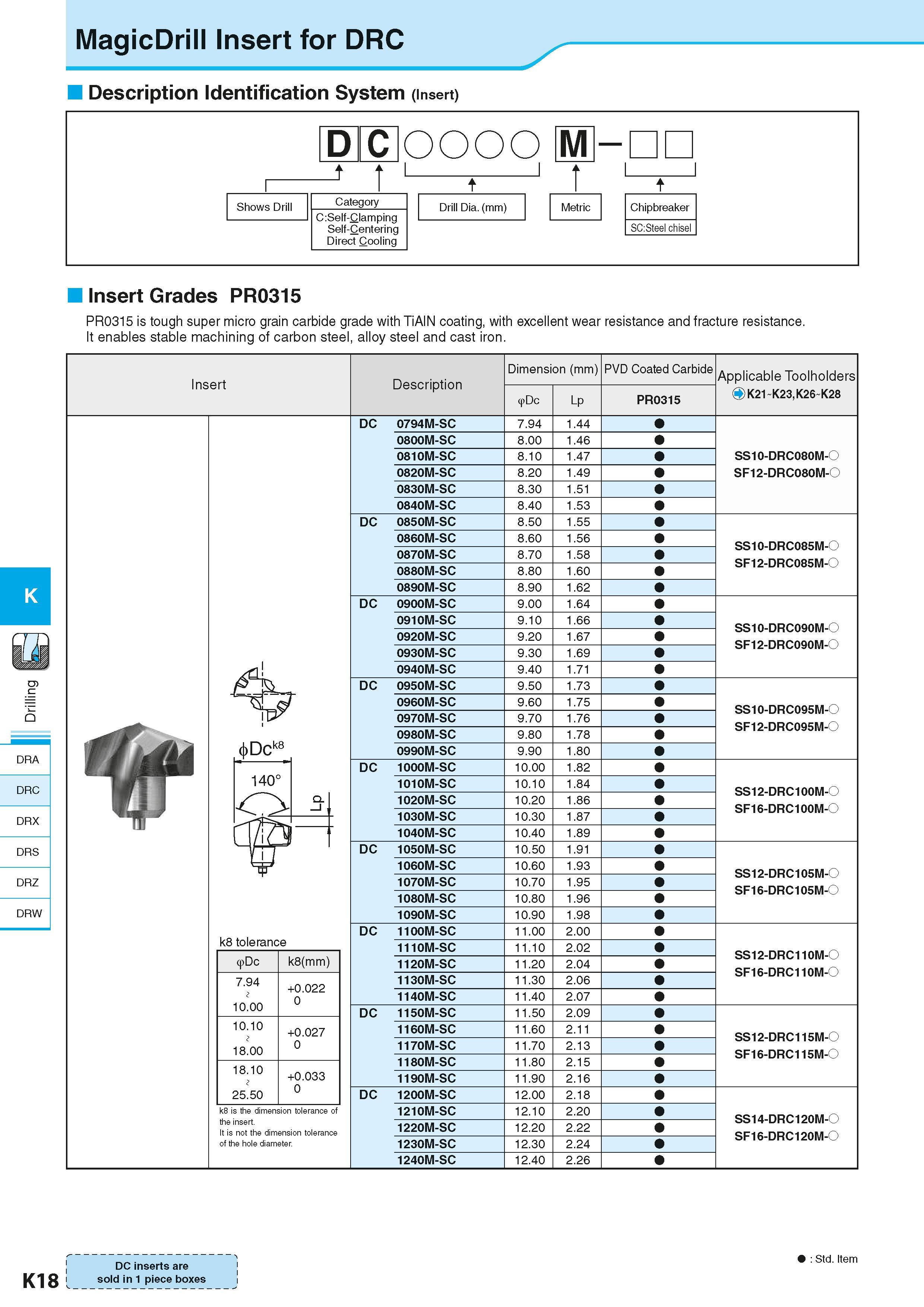

MagicDrill Insert for DRC Description Identification System (Insert) Shows Drill D C OOOO M- t Category C:Self-Clamping Self-Centering Direct Cooling T Drill Dia. (mm) Metric Chipbreaker SC:Steel chisel Insert Grades PR0315 PR0315 is tough super micro grain carbide grade with TiAIN coating, with excellent wear resistance and fracture resistance. It enables stable machining of carbon steel, alloy steel and cast iron. Insert Description Dimension (mm) Размеры инструмента указаны в мм Dc Lp PVD Coated Carbide PR0315 Applicable Toolholders O K21 K23,K26 K28 DRA DRC DRX DRS DRZ DRW DC 0794M-SC k8 tolerance Dc k8(mm) 7.94 10.00 +0.022 0 10.10 18.00 +0.027 0 18.10 25.50 +0.033 0 k8 is the dimension tolerance of the insert. It is not the dimension tolerance of the hole diameter. 0800M-SC 0810M-SC 0820M-SC 0830M-SC 0840M-SC DC 0850M-SC 0860M-SC 0870M-SC 0880M-SC 0890M-SC DC 0900M-SC 0910M-SC 0920M-SC 0930M-SC 0940M-SC DC 0950M-SC 0960M-SC 0970M-SC 0980M-SC 0990M-SC DC 1000M-SC 1010M-SC 1020M-SC 1030M-SC 1040M-SC DC 1050M-SC 1060M-SC 1070M-SC 1080M-SC 1090M-SC DC 1100M-SC 1110M-SC 1120M-SC 1130M-SC 1140M-SC DC 1150M-SC 1160M-SC 1170M-SC 1180M-SC 1190M-SC DC 1200M-SC 1210M-SC 1220M-SC 1230M-SC 1240M-SC 7.94 1.44 8.00 1.46 8.10 1.47 8.20 1.49 8.30 1.51 8.40 1.53 8.50 1.55 8.60 1.56 8.70 1.58 8.80 1.60 8.90 1.62 9.00 1.64 9.10 1.66 9.20 1.67 9.30 1.69 9.40 1.71 9.50 1.73 9.60 1.75 9.70 1.76 9.80 1.78 9.90 1.80 10.00 1.82 10.10 1.84 10.20 1.86 10.30 1.87 10.40 1.89 10.50 1.91 10.60 1.93 10.70 1.95 10.80 1.96 10.90 1.98 11.00 2.00 11.10 2.02 11.20 2.04 11.30 2.06 11.40 2.07 11.50 2.09 11.60 2.11 11.70 2.13 11.80 2.15 11.90 2.16 12.00 2.18 12.10 2.20 12.20 2.22 12.30 2.24 12.40 2.26 SS10-DRC080M-O SF12-DRC080M-O SS10-DRC085M-O SF12-DRC085M-O SS10-DRC090M-O SF12-DRC090M-O SS10-DRC095M-O SF12-DRC095M-O SS12-DRC100M-O SF16-DRC100M-O SS12-DRC105M-O SF16-DRC105M-O SS12-DRC110M-O SF16-DRC110M-O SS12-DRC115M-O SF16-DRC115M-O SS14-DRC120M-O SF16-DRC120M-O K18 DC inserts are sold in 1 piece boxes Std. Item
