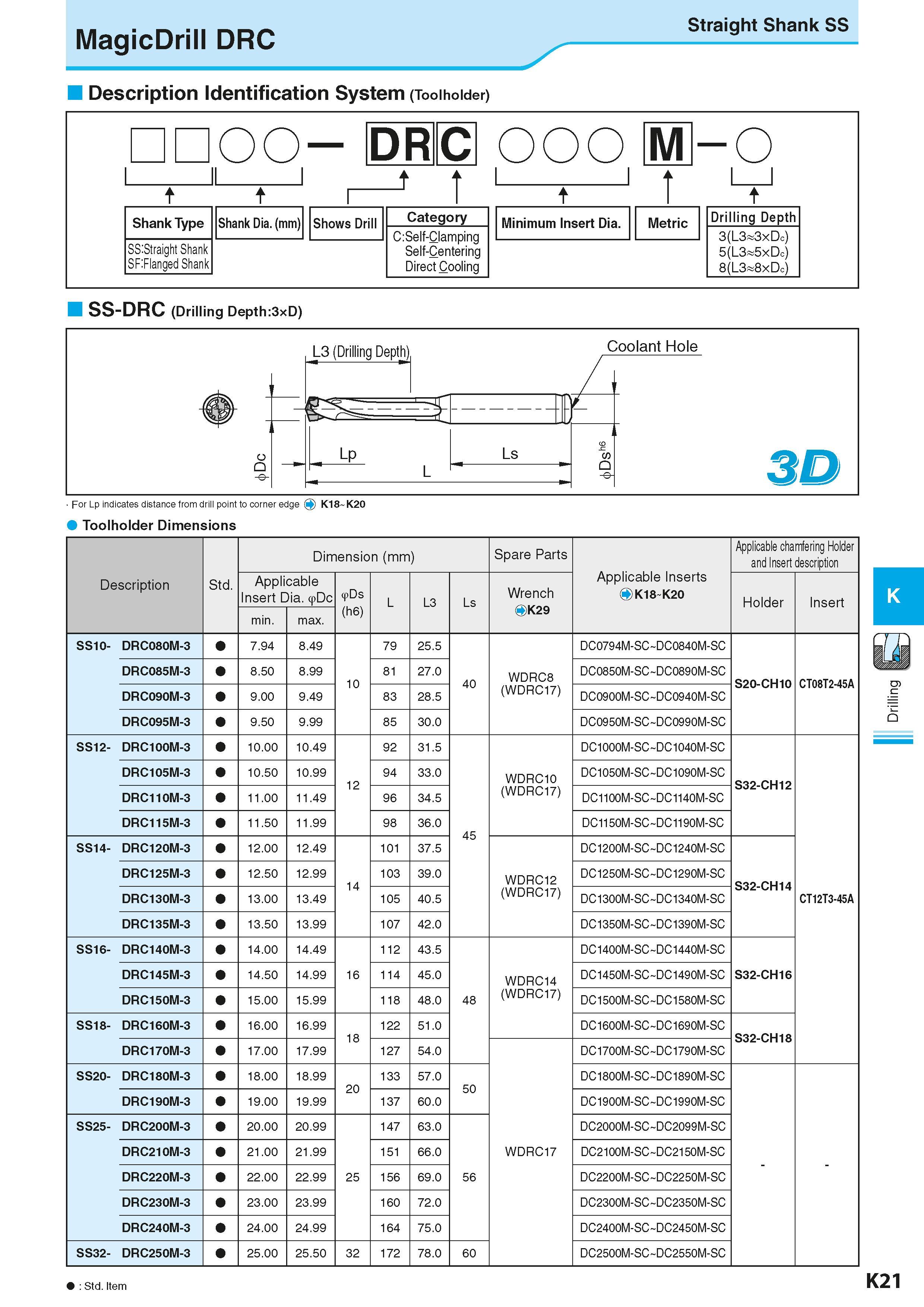

MagicDrill DRC Straight Shank SS Description Identification System (Toolholder) OO- DRC OOO M-O t t 1 t Shank Type Shank Dia. (mm) Shows Drill Category C:Self-Clamping Self-Centering Direct Cooling Minimum Insert Dia. Metric SS:Straight Shank SF:Flanged Shank Drilling Depth 3(L3 3xDc) 5(L3 5xDc) 8(L3 8xDc) SS-DRC (Drilling Depth:3xD) Toolholder Dimensions Dimension (mm) Размеры инструмента указаны в мм Spare Parts Applicable Inserts OK18K20 Applicable chamfering Holder and Insert description Description Обозначение инструмента для заказа Std. Applicable Insert Dia. 9Dc 9Ds L L3 Ls Wrench OK29 Holder Insert min. max. (h6) SS10- DRC080M-3 7.94 8.49 79 25.5 DC0794M-SC DC0840M-SC DRC085M-3 8.50 8.99 10 81 27.0 40 WDRC8 DC0850M-SC DC0890M-SC S20-CH10 CT08T2-45A DRC090M-3 9.00 9.49 83 28.5 (WDRC17) DC0900M-SC DC0940M-SC DRC095M-3 9.50 9.99 85 30.0 DC0950M-SC DC0990M-SC SS12- DRC100M-3 10.00 10.49 92 31.5 DC1000M-SC DC1040M-SC DRC105M-3 10.50 10.99 12 94 33.0 WDRC10 DC1050M-SC DC1090M-SC S32-CH12 DRC110M-3 11.00 11.49 96 34.5 (WDRC17) DC1100M-SC DC1140M-SC DRC115M-3 11.50 11.99 98 36.0 45 DC1150M-SC DC1190M-SC SS14- DRC120M-3 12.00 12.49 101 37.5 DC1200M-SC DC1240M-SC DRC125M-3 12.50 12.99 14 103 39.0 WDRC12 DC1250M-SC DC1290M-SC S32-CH14 DRC130M-3 13.00 13.49 105 40.5 (WDRC17) DC1300M-SC DC1340M-SC CT12T3-45A DRC135M-3 13.50 13.99 107 42.0 DC1350M-SC DC1390M-SC SS16- DRC140M-3 14.00 14.49 112 43.5 DC1400M-SC DC1440M-SC DRC145M-3 14.50 14.99 16 114 45.0 WDRC14 DC1450M-SC DC1490M-SC S32-CH16 DRC150M-3 15.00 15.99 118 48.0 48 (WDRC17) DC1500M-SC DC1580M-SC SS18- DRC160M-3 16.00 16.99 18 122 51.0 DC1600M-SC DC1690M-SC S32-CH18 DRC170M-3 17.00 17.99 127 54.0 DC1700M-SC DC1790M-SC SS20- DRC180M-3 18.00 18.99 20 133 57.0 50 DC1800M-SC DC1890M-SC DRC190M-3 19.00 19.99 137 60.0 DC1900M-SC DC1990M-SC SS25- DRC200M-3 20.00 20.99 147 63.0 DC2000M-SC DC2099M-SC DRC210M-3 21.00 21.99 151 66.0 WDRC17 DC2100M-SC DC2150M-SC DRC220M-3 22.00 22.99 25 156 69.0 56 DC2200M-SC DC2250M-SC DRC230M-3 23.00 23.99 160 72.0 DC2300M-SC DC2350M-SC DRC240M-3 24.00 24.99 164 75.0 DC2400M-SC DC2450M-SC SS32- DRC250M-3 25.00 25.50 32 172 78.0 60 DC2500M-SC DC2550M-SC Std. Item K21 Drilling
