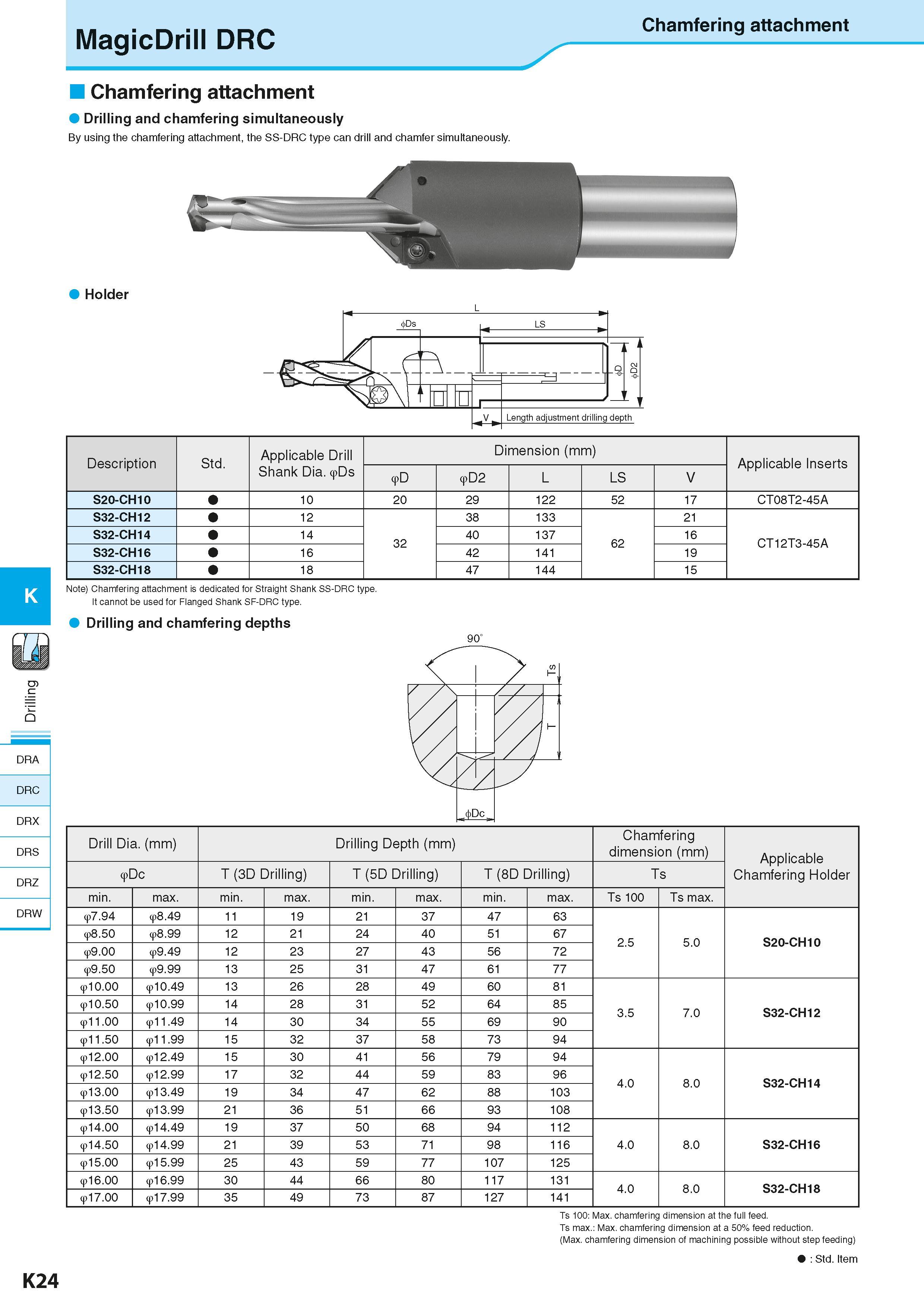

MagicDrill DRC Chamfering attachment / - K DRA DRC DRX DRS DRZ DRW Chamfering attachment Drilling and chamfering simultaneously By using the chamfering attachment, the SS-DRC type can drill and chamfer simultaneously. Holder Description Обозначение инструмента для заказа Std. Applicable Drill Shank Dia. eDs Dimension (mm) Размеры инструмента указаны в мм Applicable Inserts eD eD2 L LS V S20-CH10 10 20 29 122 52 17 CT08T2-45A S32-CH12 12 32 38 133 62 21 CT12T3-45A S32-CH14 14 40 137 16 S32-CH16 16 42 141 19 S32-CH18 18 47 144 15 Note) Chamfering attachment is dedicated for Straight Shank SS-DRC type. It cannot be used for Flanged Shank SF-DRC type. Drilling and chamfering depths Drill Dia. (mm) Drilling Depth (mm) Chamfering dimension (mm) Applicable Chamfering Holder eDc T (3D Drilling) T (5D Drilling) T (8D Drilling) Ts min. max. min. max. min. max. min. max. Ts 100 Ts max. e7.94 e8.49 11 19 21 37 47 63 2.5 5.0 S20-CH10 e8.50 e8.99 12 21 24 40 51 67 e9.00 e9.49 12 23 27 43 56 72 e9.50 e9.99 13 25 31 47 61 77 e10.00 e10.49 13 26 28 49 60 81 3.5 7.0 S32-CH12 e10.50 e10.99 14 28 31 52 64 85 e11.00 e11.49 14 30 34 55 69 90 e11.50 e11.99 15 32 37 58 73 94 e12.00 e12.49 15 30 41 56 79 94 4.0 8.0 S32-CH14 e12.50 e12.99 17 32 44 59 83 96 e13.00 e13.49 19 34 47 62 88 103 e13.50 e13.99 21 36 51 66 93 108 e14.00 e14.49 19 37 50 68 94 112 4.0 8.0 S32-CH16 e14.50 e14.99 21 39 53 71 98 116 e15.00 e15.99 25 43 59 77 107 125 e16.00 e16.99 30 44 66 80 117 131 4.0 8.0 S32-CH18 e17.00 e17.99 35 49 73 87 127 141 Ts 100: Max. chamfering dimension at the full feed. Ts max.: Max. chamfering dimension at a 50% feed reduction. (Max. chamfering dimension of machining possible without step feeding) Std. Item K24
