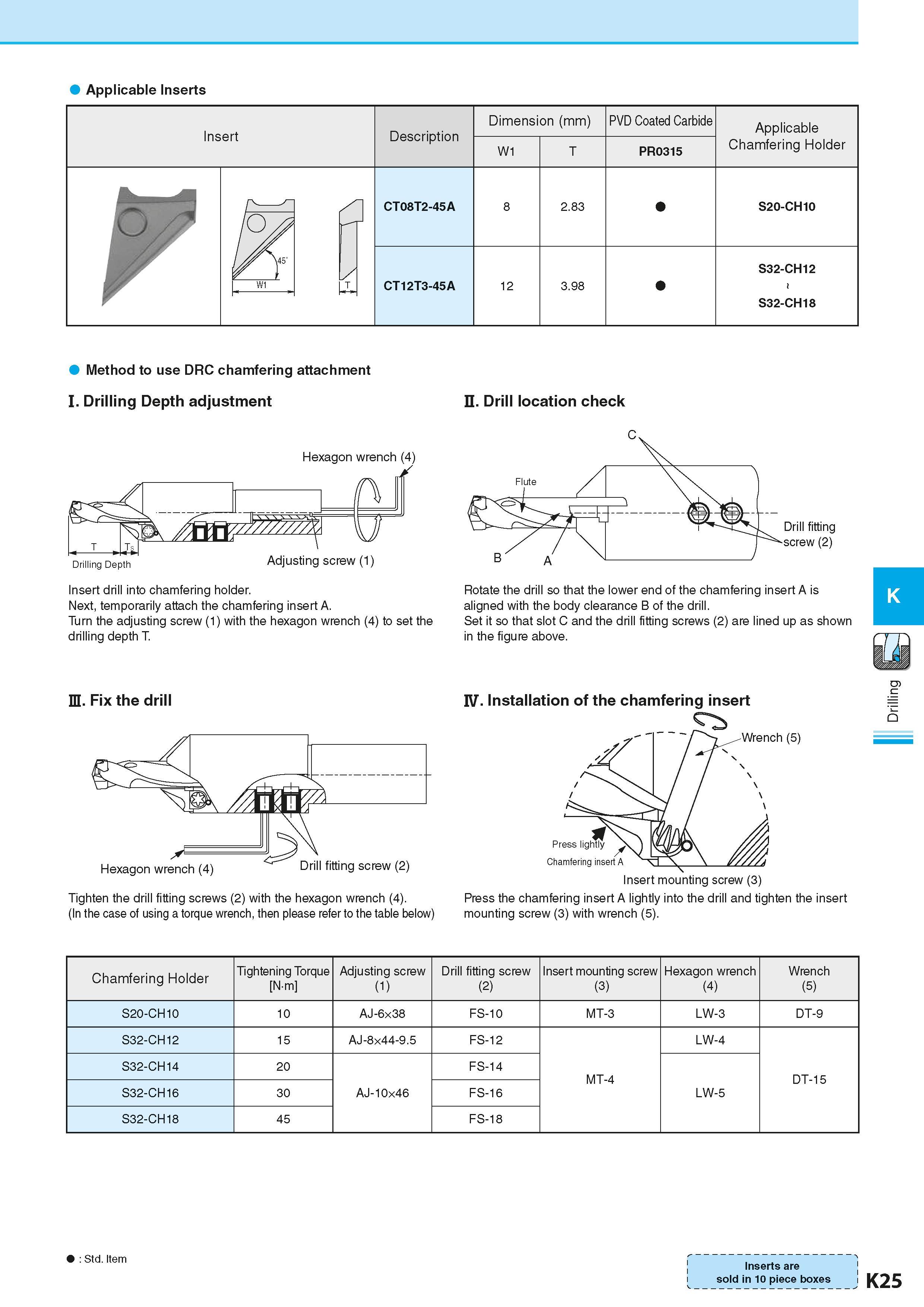

Applicable Inserts Insert Description Dimension (mm) Размеры инструмента указаны в мм W1 PVD Coated Carbide PR0315 Applicable Chamfering Holder CT08T2-45A 2.83 S20-CH10 CT12T3-45A 12 3.98 S32-CH12 S32-CH18 T 8 Method to use DRC chamfering attachment I. Drilling Depth adjustment n. Drill location check Hexagon wrench (4) J Drilling Depth Adjusting screw (1) Insert drill into chamfering holder. Next, temporarily attach the chamfering insert A. Turn the adjusting screw (1) with the hexagon wrench (4) to set the drilling depth T Rotate the drill so that the lower end of the chamfering insert A is aligned with the body clearance B of the drill. Set it so that slot C and the drill fitting screws (2) are lined up as shown in the figure above. m. Fix the drill Tighten the drill fitting screws (2) with the hexagon wrench (4). (In the case of using a torque wrench, then please refer to the table below) N. Installation of the chamfering insert Press the chamfering insert A lightly into the drill and tighten the insert mounting screw (3) with wrench (5). Chamfering Holder Tightening Torque N-m Adjusting screw (1) Drill fitting screw (2) Insert mounting screw (3) Hexagon wrench (4) Wrench (5) S20-CH10 10 AJ-6x38 FS-10 MT-3 LW-3 DT-9 S32-CH12 15 AJ-8x44-9.5 FS-12 MT-4 LW-4 DT-15 S32-CH14 20 AJ-10x46 FS-14 LW-5 S32-CH16 30 FS-16 S32-CH18 45 FS-18 Std. Item T Inserts are sold in 10 piece boxes J K25 Drilling
