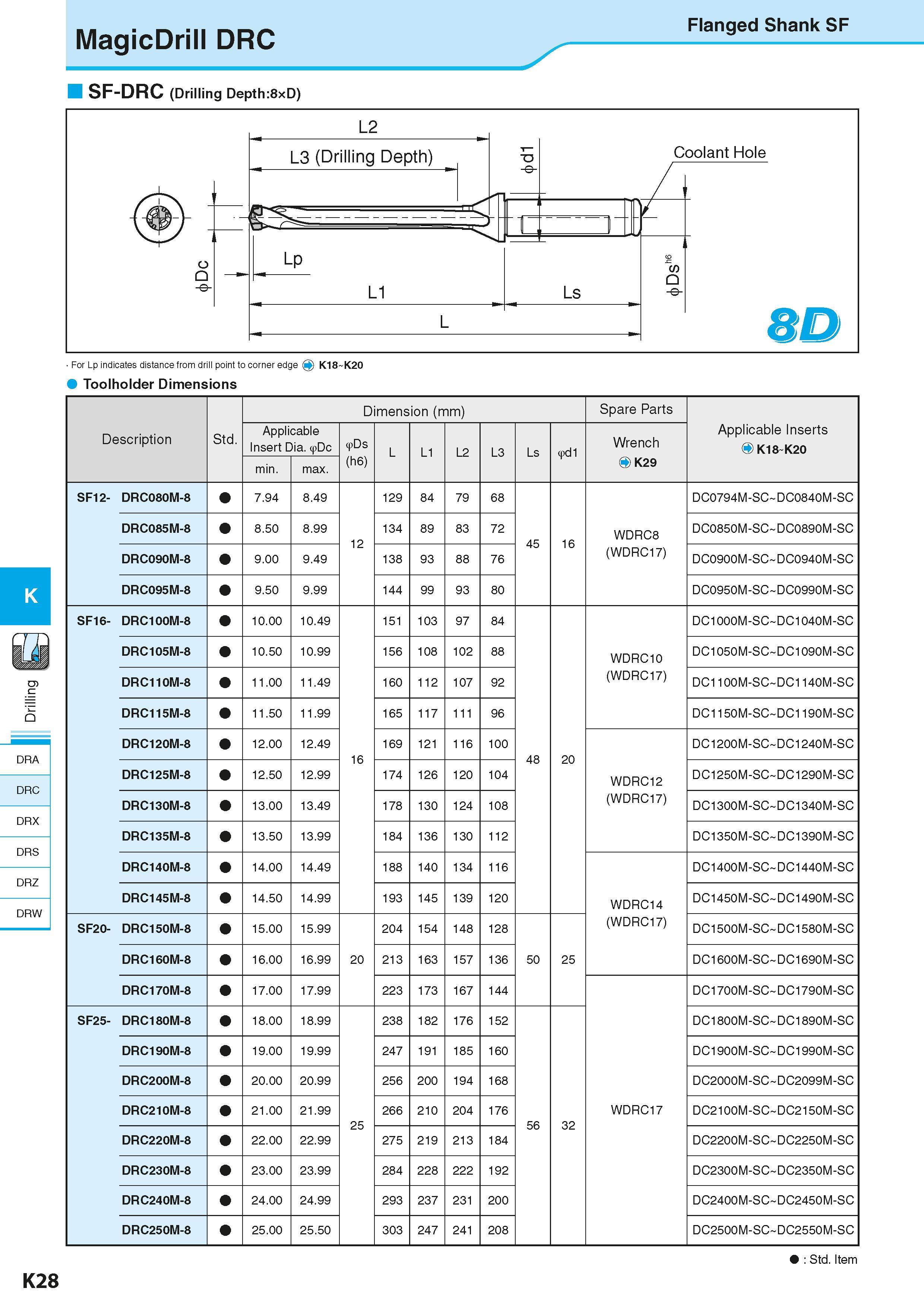

-I. Flanged Shank SF MagicDrill DRC SF-DRC (Drilling Depth:8xD) For Lp indicates distance from drill point to corner edge 0 K18 K20 Toolholder Dimensions K DRA DRC DRX DRS DRZ DRW Description Обозначение инструмента для заказа Std. Dimension (mm) Размеры инструмента указаны в мм Spare Parts Applicable Inserts OK18K20 Applicable Insert Dia. eDc o < e (h L L1 L2 L3 Ls ed1 Wrench O K29 min. max. SF12- DRC080M-8 7.94 8.49 12 129 84 79 68 45 16 WDRC8 (WDRC17) DC0794M-SC DC0840M-SC DRC085M-8 8.50 8.99 134 89 83 72 DC0850M-SC DC0890M-SC DRC090M-8 9.00 9.49 138 93 88 76 DC0900M-SC DC0940M-SC DRC095M-8 9.50 9.99 144 99 93 80 DC0950M-SC DC0990M-SC SF16- DRC100M-8 10.00 10.49 16 151 103 97 84 48 20 WDRC10 (WDRC17) DC1000M-SC DC1040M-SC DRC105M-8 10.50 10.99 156 108 102 88 DC1050M-SC DC1090M-SC DRC110M-8 11.00 11.49 160 112 107 92 DC1100M-SC DC1140M-SC DRC115M-8 11.50 11.99 165 117 111 96 DC1150M-SC DC1190M-SC DRC120M-8 12.00 12.49 169 121 116 100 WDRC12 (WDRC17) DC1200M-SC DC1240M-SC DRC125M-8 12.50 12.99 174 126 120 104 DC1250M-SC DC1290M-SC DRC130M-8 13.00 13.49 178 130 124 108 DC1300M-SC DC1340M-SC DRC135M-8 13.50 13.99 184 136 130 112 DC1350M-SC DC1390M-SC DRC140M-8 14.00 14.49 188 140 134 116 WDRC14 (WDRC17) DC1400M-SC DC1440M-SC DRC145M-8 14.50 14.99 193 145 139 120 DC1450M-SC DC1490M-SC SF20- DRC150M-8 15.00 15.99 20 204 154 148 128 50 25 DC1500M-SC DC1580M-SC DRC160M-8 16.00 16.99 213 163 157 136 DC1600M-SC DC1690M-SC DRC170M-8 17.00 17.99 223 173 167 144 WDRC17 DC1700M-SC DC1790M-SC SF25- DRC180M-8 18.00 18.99 25 238 182 176 152 56 32 DC1800M-SC DC1890M-SC DRC190M-8 19.00 19.99 247 191 185 160 DC1900M-SC DC1990M-SC DRC200M-8 20.00 20.99 256 200 194 168 DC2000M-SC DC2099M-SC DRC210M-8 21.00 21.99 266 210 204 176 DC2100M-SC DC2150M-SC DRC220M-8 22.00 22.99 275 219 213 184 DC2200M-SC DC2250M-SC DRC230M-8 23.00 23.99 284 228 222 192 DC2300M-SC DC2350M-SC DRC240M-8 24.00 24.99 293 237 231 200 DC2400M-SC DC2450M-SC DRC250M-8 25.00 25.50 303 247 241 208 DC2500M-SC DC2550M-SC Std. Item K28
