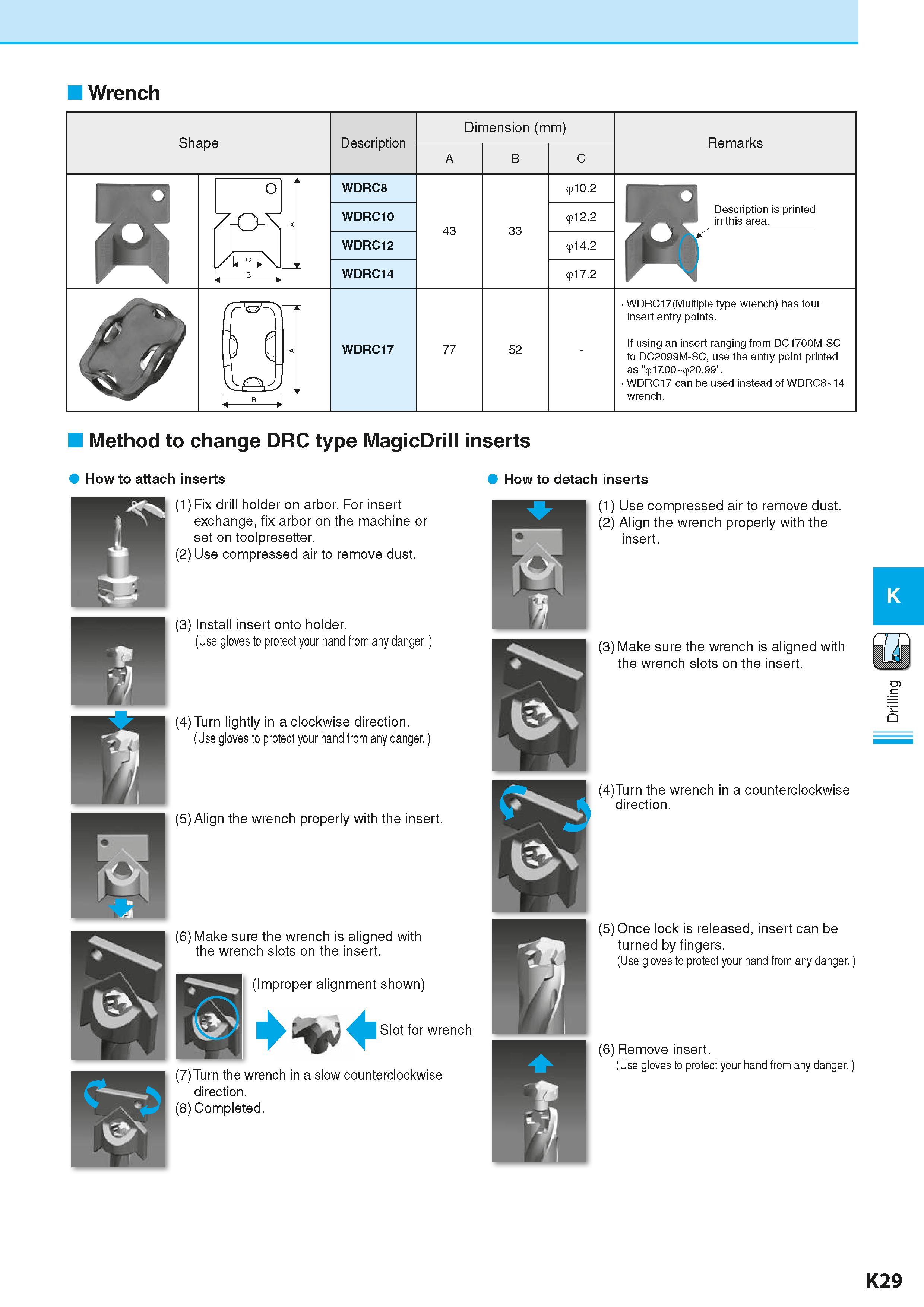

Wrench Shape Description Dimension (mm) Размеры инструмента указаны в мм B Remarks O 7rOX WDRC8 e10.2 WDRC10 43 33 e12.2 WDRC12 e14.2 WDRC14 e17.2 Description is printed in this area. -T3f- WDRC17 77 52 WDRC17(Multiple type wrench) has four insert entry points. If using an insert ranging from DC1700M-SC to DC2099M-SC, use the entry point printed as "e17.00 e20.99". WDRC17 can be used instead of WDRC8 14 wrench. A C B Method to change DRC type MagicDrill inserts How to attach inserts How to detach inserts (1) Fix drill holder on arbor. For insert exchange, fix arbor on the machine or set on toolpresetter. (2) Use compressed air to remove dust. (3) Install insert onto holder. (Use gloves to protect your hand from any danger. ) (4) Turn lightly in a clockwise direction. (Use gloves to protect your hand from any danger. ) (5) Align the wrench properly with the insert. (6) Make sure the wrench is aligned with the wrench slots on the insert. (Improper alignment shown) Slot for wrench (7)Turn the wrench in a slow counterclockwise direction. (8) Completed. (1) Use compressed air to remove dust. (2) Align the wrench properly with the insert. (3) Make sure the wrench is aligned with the wrench slots on the insert. (4)Turn the wrench in a counterclockwise direction. (5) Once lock is released, insert can be turned by fingers. (Use gloves to protect your hand from any danger. ) (6) Remove insert. (Use gloves to protect your hand from any danger. ) K29 Drilling
