561 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.K19

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. K19 0561 Lab2u

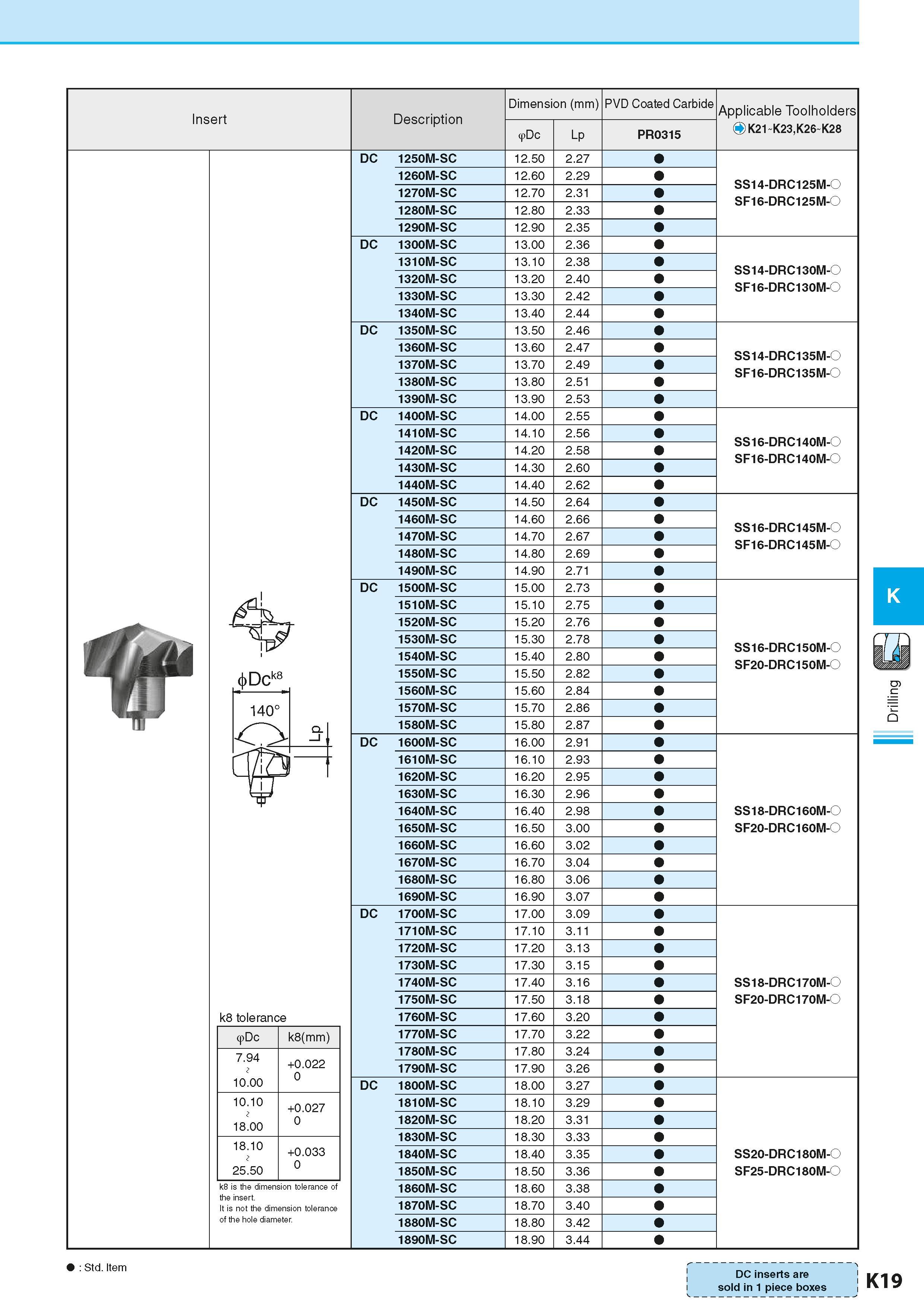

Insert Description Dimension (mm) Размеры инструмента указаны в мм 9Dc Lp PVD Coated Carbide PR0315 Applicable Toolholders OK21 K23,K26 K28 DC 1250M-SC k8 tolerance 9Dc k8(mm) 7.94 10.00 +0.022 0 10.10 18.00 +0.027 0 18.10 25.50 +0.033 0 k8 is the dimension tolerance of the insert. It is not the dimension tolerance of the hole diameter. 1260M-SC 1270M-SC 1280M-SC 1290M-SC DC 1300M-SC 1310M-SC 1320M-SC 1330M-SC 1340M-SC DC 1350M-SC 1360M-SC 1370M-SC 1380M-SC 1390M-SC DC 1400M-SC 1410M-SC 1420M-SC 1430M-SC 1440M-SC DC 1450M-SC 1460M-SC 1470M-SC 1480M-SC 1490M-SC DC 1500M-SC 1510M-SC 1520M-SC 1530M-SC 1540M-SC 1550M-SC 1560M-SC 1570M-SC 1580M-SC DC 1600M-SC 1610M-SC 1620M-SC 1630M-SC 1640M-SC 1650M-SC 1660M-SC 1670M-SC 1680M-SC 1690M-SC DC 1700M-SC 1710M-SC 1720M-SC 1730M-SC 1740M-SC 1750M-SC 1760M-SC 1770M-SC 1780M-SC 1790M-SC DC 1800M-SC 1810M-SC 1820M-SC 1830M-SC 1840M-SC 1850M-SC 1860M-SC 1870M-SC 1880M-SC 1890M-SC 12.50 2.27 12.60 2.29 12.70 2.31 12.80 2.33 12.90 2.35 13.00 2.36 13.10 2.38 13.20 2.40 13.30 2.42 13.40 2.44 13.50 2.46 13.60 2.47 13.70 2.49 13.80 2.51 13.90 2.53 14.00 2.55 14.10 2.56 14.20 2.58 14.30 2.60 14.40 2.62 14.50 2.64 14.60 2.66 14.70 2.67 14.80 2.69 14.90 2.71 15.00 2.73 15.10 2.75 15.20 2.76 15.30 2.78 15.40 2.80 15.50 2.82 15.60 2.84 15.70 2.86 15.80 2.87 16.00 2.91 16.10 2.93 16.20 2.95 16.30 2.96 16.40 2.98 16.50 3.00 16.60 3.02 16.70 3.04 16.80 3.06 16.90 3.07 17.00 3.09 17.10 3.11 17.20 3.13 17.30 3.15 17.40 3.16 17.50 3.18 17.60 3.20 17.70 3.22 17.80 3.24 17.90 3.26 18.00 3.27 18.10 3.29 18.20 3.31 18.30 3.33 18.40 3.35 18.50 3.36 18.60 3.38 18.70 3.40 18.80 3.42 18.90 3.44 SS14-DRC125M-O SF16-DRC125M-O SS14-DRC130M-O SF16-DRC130M-O SS14-DRC135M-O SF16-DRC135M-O SS16-DRC140M-O SF16-DRC140M-O SS16-DRC145M-O SF16-DRC145M-O SS16-DRC150M-O SF20-DRC150M-O SS18-DRC160M-O SF20-DRC160M-O SS18-DRC170M-O SF20-DRC170M-O SS20-DRC180M-O SF25-DRC180M-O Std. Item DC inserts are sold in 1 piece boxes K K19 Drilling
