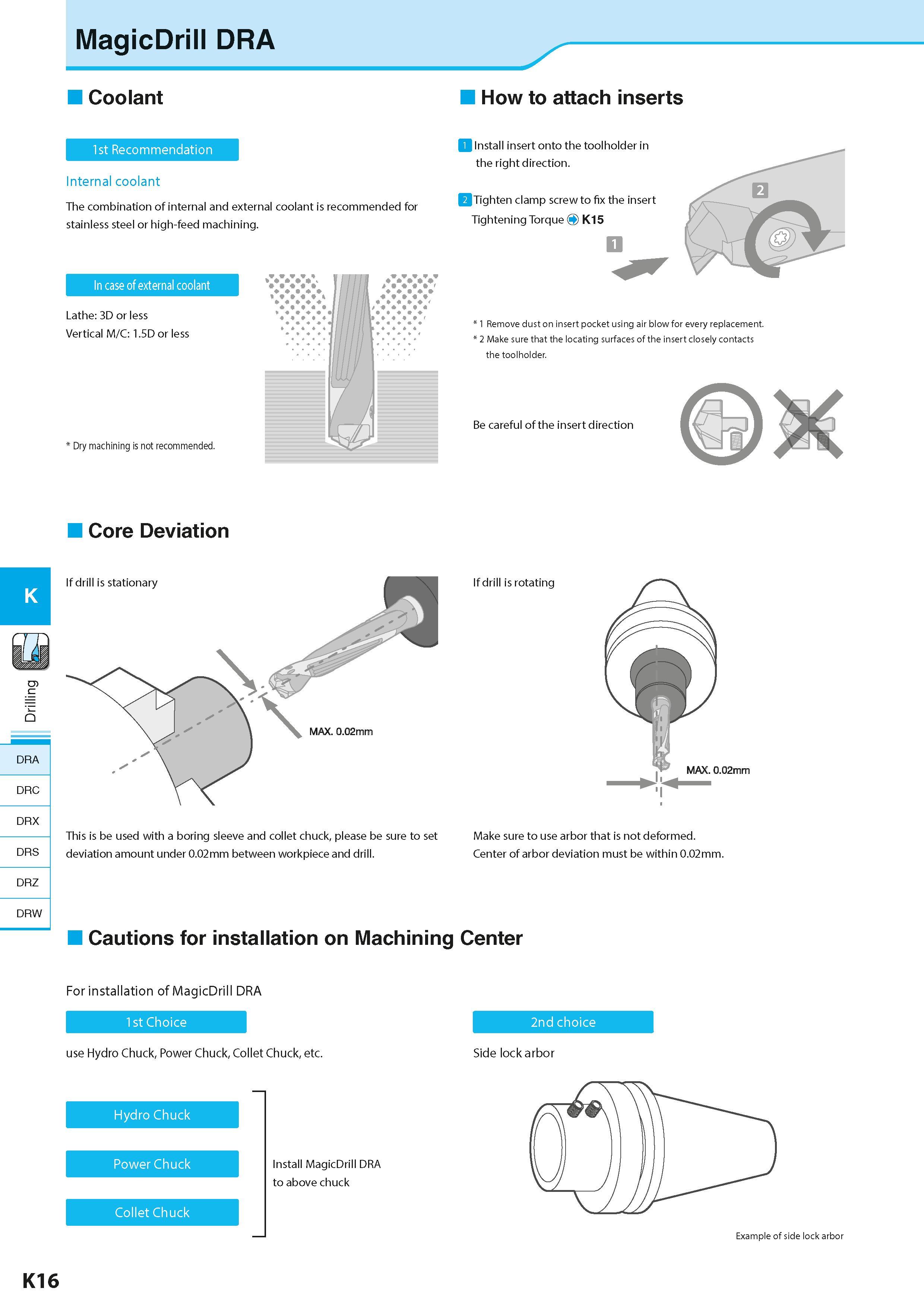

MagicDrill DRA K DRA DRC DRX DRS DRZ DRW Coolant How to attach inserts 1st Recommendation Internal coolant The combination of internal and external coolant is recommended for stainless steel or high-feed machining. In case of external coolant Lathe: 3D or less Vertical M/C: 1.5D or less t Dry machining is not recommended. 1 Install insert onto the toolholder in the right direction. 2 Tighten clamp screw to fix the insert Tightening Torque O K15 L 1 Remove dust on insert pocket using air blow for every replacement. 2 Make sure that the locating surfaces of the insert closely contacts the toolholder. Be careful of the insert direction Core Deviation If drill is rotating This is be used with a boring sleeve and collet chuck, please be sure to set deviation amount under 0.02mm between workpiece and drill. MAX. 0.02mm Make sure to use arbor that is not deformed. Center of arbor deviation must be within 0.02mm. Cautions for installation on Machining Center For installation of MagicDrill DRA 1st Choice use Hydro Chuck, Power Chuck, Collet Chuck, etc. 2nd choice Side lock arbor Hydro Chuck Power Chuck Collet Chuck Install MagicDrill DRA to above chuck Example of side lock arbor K16
