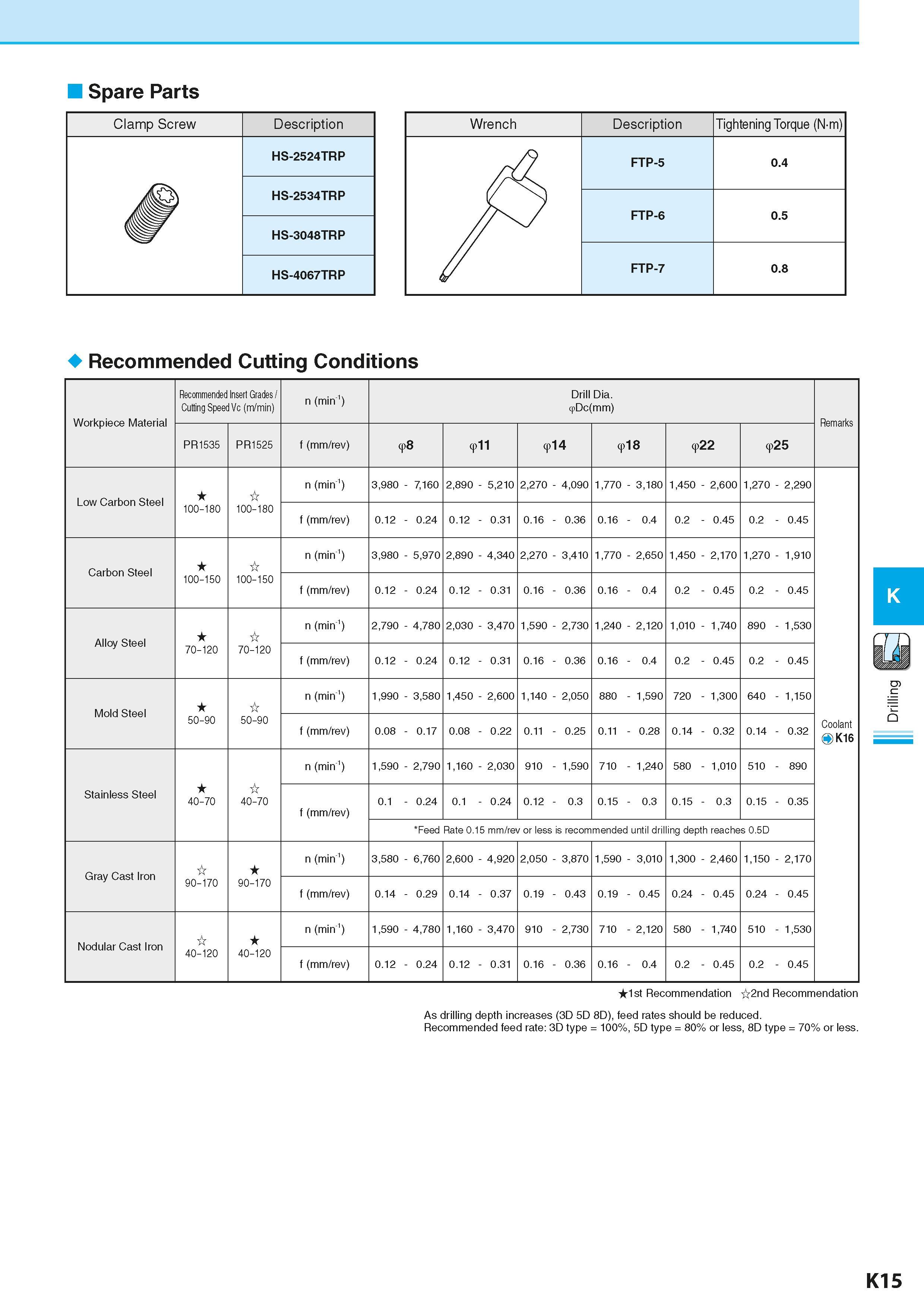

Spare Parts Clamp Screw Description 0 HS-2524TRP HS-2534TRP HS-3048TRP HS-4067TRP Wrench Description Tightening Torque (N-m) FTP-5 0.4 FTP-6 0.5 FTP-7 0.8 Recommended Cutting Conditions Workpiece Material Recommended Insert Grades / Cutting Speed Vc (m/min) n (min-1) Drill Dia. Dc(mm) Remarks PR1535 PR1525 f (mm/rev) 98 q>11 914 9I8 922 925 Low Carbon Steel 100-180 100-180 n (min-1) 3,980 7,160 2,890 5,210 2,270 4,090 1,770 3,180 1,450 2,600 1,270 2,290 Coolant oki6 f (mm/rev) 0.12 0.24 0.12 0.31 0.16 0.36 0.16 0.4 0.2 0.45 0.2 0.45 Carbon Steel 100-150 100-150 n (min-1) 3,980 5,970 2,890 4,340 2,270 3,410 1,770 2,650 1,450 2,170 1,270 1,910 f (mm/rev) 0.12 0.24 0.12 0.31 0.16 0.36 0.16 0.4 0.2 0.45 0.2 0.45 Alloy Steel 70-120 70-120 n (min-1) 2,790 4,780 2,030 3,470 1,590 2,730 1,240 2,120 1,010 1,740 890 1,530 f (mm/rev) 0.12 0.24 0.12 0.31 0.16 0.36 0.16 0.4 0.2 0.45 0.2 0.45 Mold Steel 50-90 50-90 n (min-1) 1,990 3,580 1,450 2,600 1,140 2,050 880 1,590 720 1,300 640 1,150 f (mm/rev) 0.08 0.17 0.08 0.22 0.11 0.25 0.11 0.28 0.14 0.32 0.14 0.32 Stainless Steel 40-70 40-70 n (min-1) 1,590 2,790 1,160 2,030 910 1,590 710 1,240 580 1,010 510 890 f (mm/rev) 0.1 0.24 0.1 0.24 0.12 0.3 0.15 0.3 0.15 0.3 0.15 0.35 Feed Rate 0.15 mm/rev or less is recommended until drilling depth reaches 0.5D Gray Cast Iron 90-170 90-170 n (min-1) 3,580 6,760 2,600 4,920 2,050 3,870 1,590 3,010 1,300 2,460 1,150 2,170 f (mm/rev) 0.14 0.29 0.14 0.37 0.19 0.43 0.19 0.45 0.24 0.45 0.24 0.45 Nodular Cast Iron 40-120 40-120 n (min-1) 1,590 4,780 1,160 3,470 910 2,730 710 2,120 580 1,740 510 1,530 f (mm/rev) 0.12 0.24 0.12 0.31 0.16 0.36 0.16 0.4 0.2 0.45 0.2 0.45 1 st Recommendation 2nd Recommendation As drilling depth increases (3D 5D 8D), feed rates should be reduced. Recommended feed rate: 3D type = 100%, 5D type = 80% or less, 8D type = 70% or less. K15 Drilling
