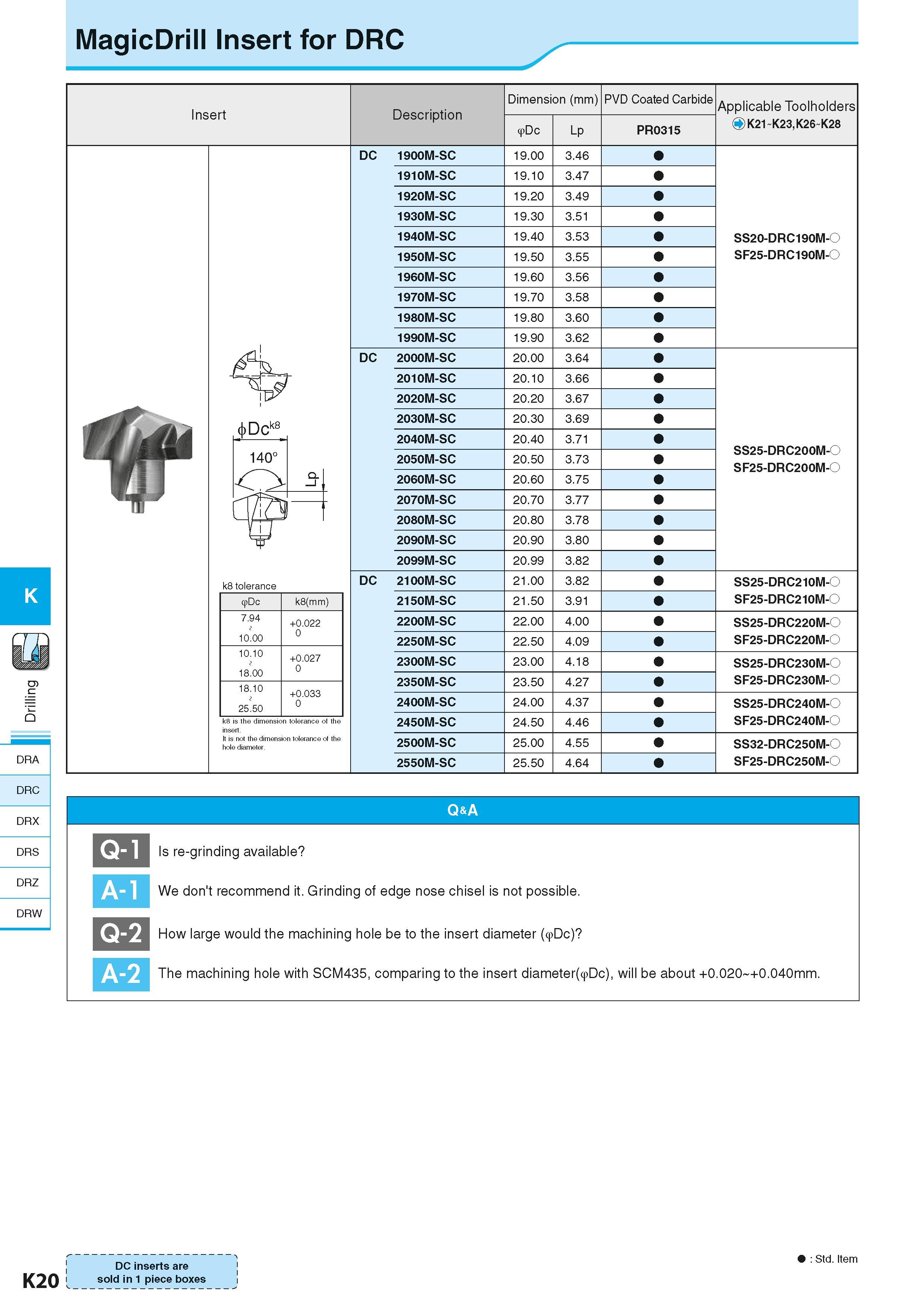

K DRA DRC DRX DRS DRZ DRW MagicDrill Insert for DRC Insert Description Dimension (mm) Размеры инструмента указаны в мм Dc Lp PVD Coated Carbide PR0315 Applicable Toolholders 4 K21 K23,K26 K28 Dc k8 140° k8 tolerance DC 1900M-SC q>Dc k8(mm) 7.94 10.00 +0.022 0 10.10 18.00 +0.027 0 18.10 25.50 +0.033 0 k8 is the dimension tolerance of the insert. It is not the dimension tolerance of the hole diameter. 1910M-SC 1920M-SC 1930M-SC 1940M-SC 1950M-SC 1960M-SC 1970M-SC 1980M-SC 1990M-SC DC 2000M-SC 2010M-SC 2020M-SC 2030M-SC 2040M-SC 2050M-SC 2060M-SC 2070M-SC 2080M-SC 2090M-SC 2099M-SC DC 2100M-SC 2150M-SC 2200M-SC 2250M-SC 2300M-SC 2350M-SC 2400M-SC 2450M-SC 2500M-SC 2550M-SC 19.00 3.46 19.10 3.47 19.20 3.49 19.30 3.51 19.40 3.53 19.50 3.55 19.60 3.56 19.70 3.58 19.80 3.60 19.90 3.62 20.00 3.64 20.10 3.66 20.20 3.67 20.30 3.69 20.40 3.71 20.50 3.73 20.60 3.75 20.70 3.77 20.80 3.78 20.90 3.80 20.99 3.82 21.00 3.82 21.50 3.91 22.00 4.00 22.50 4.09 23.00 4.18 23.50 4.27 24.00 4.37 24.50 4.46 25.00 4.55 25.50 4.64 SS20-DRC190M-O SF25-DRC190M-O SS25-DRC200M-O SF25-DRC200M-O SS25-DRC210M-O SF25-DRC210M-O SS25-DRC220M-O SF25-DRC220M-O SS25-DRC230M-O SF25-DRC230M-O SS25-DRC240M-O SF25-DRC240M-O SS32-DRC250M-O SF25-DRC250M-O Q-1 Q-2 A-2 A-1 Q&A Is re-grinding available We don't recommend it. Grinding of edge nose chisel is not possible. How large would the machining hole be to the insert diameter ( Dc) The machining hole with SCM435, comparing to the insert diameter( Dc), will be about +0.020 +0.040mm. DC inserts are K20 i sold in 1 piece boxes Std. Item
