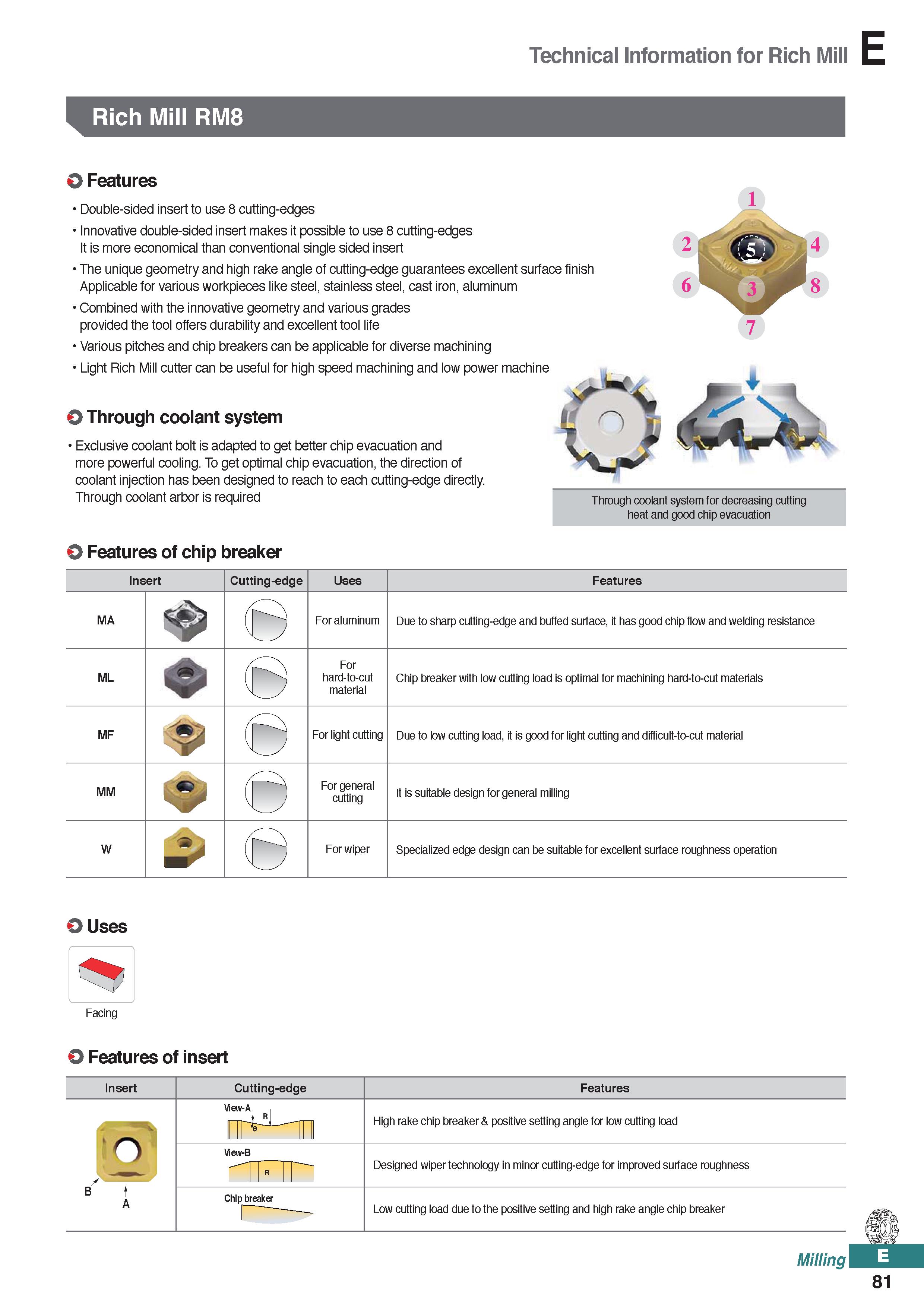

Technical Information for Rich Mill Rich Mill RM8 O Features Double-sided insert to use 8 cutting-edges Innovative double-sided insert makes it possible to use 8 cutting-edges It is more economical than conventional single sided insert The unique geometry and high rake angle of cutting-edge guarantees excellent surface finish Applicable for various workpieces like steel, stainless steel, cast iron, aluminum Combined with the innovative geometry and various grades provided the tool offers durability and excellent tool life Various pitches and chip breakers can be applicable for diverse machining Light Rich Mill cutter can be useful for high speed machining and low power machine O Through coolant system Exclusive coolant bolt is adapted to get better chip evacuation and more powerful cooling. To get optimal chip evacuation, the direction of coolant injection has been designed to reach to each cutting-edge directly. Through coolant arbor is required 2 6 4 8 Through coolant system for decreasing cutting heat and good chip evacuation 1 O Features of chip breaker Insert Cutting-edge Uses Features MA For aluminum Due to sharp cutting-edge and buffed surface, it has good chip flow and welding resistance ML o For hard-to-cut material Chip breaker with low cutting load is optimal for machining hard-to-cut materials MF & For light cutting Due to low cutting load, it is good for light cutting and difficult-to-cut material MM For general cutting It is suitable design for general milling W For wiper Specialized edge design can be suitable for excellent surface roughness operation O Uses Facing O Features of insert Insert Cutting-edge Features View-A High rake chip breaker & positive setting angle for low cutting load o' View-B Designed wiper technology in minor cutting-edge for improved surface roughness R B t A Chip breaker Low cutting load due to the positive setting and high rake angle chip breaker Milling 81
