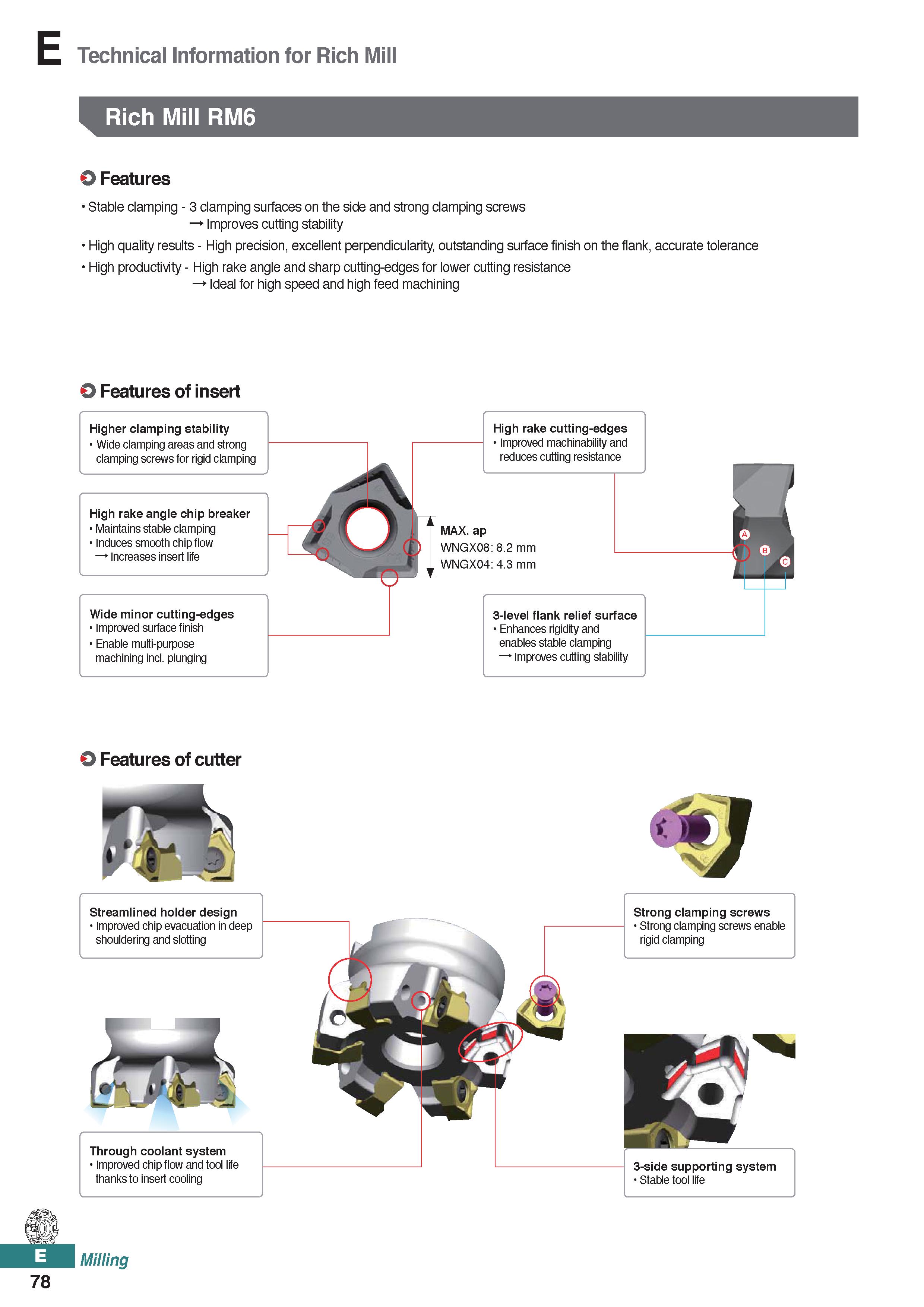

Technical Information for Rich Mill Rich Mill RM6 O Features Stable clamping - 3 clamping surfaces on the side and strong clamping screws Improves cutting stability High quality results - High precision, excellent perpendicularity, outstanding surface finish on the flank, accurate tolerance High productivity - High rake angle and sharp cutting-edges for lower cutting resistance Ideal for high speed and high feed machining 0 Features of insert Higher clamping stability Wide clamping areas and strong clamping screws for rigid clamping High rake angle chip breaker Maintains stable clamping Induces smooth chip flow 1 Increases insert life Wide minor cutting-edges Improved surface finish Enable multi-purpose machining incl. plunging High rake cutting-edges Improved machinability and reduces cutting resistance A MAX. ap WNGX08: 8.2 mm WNGX04: 4.3 mm 3-level flank relief surface Enhances rigidity and enables stable clamping Improves cutting stability 0 Features of cutter Streamlined holder design Improved chip evacuation in deep shouldering and slotting Through coolant system Improved chip flow and tool life thanks to insert cooling Milling Strong clamping screws Strong clamping screws enable rigid clamping 3-side supporting system Stable tool life 78
