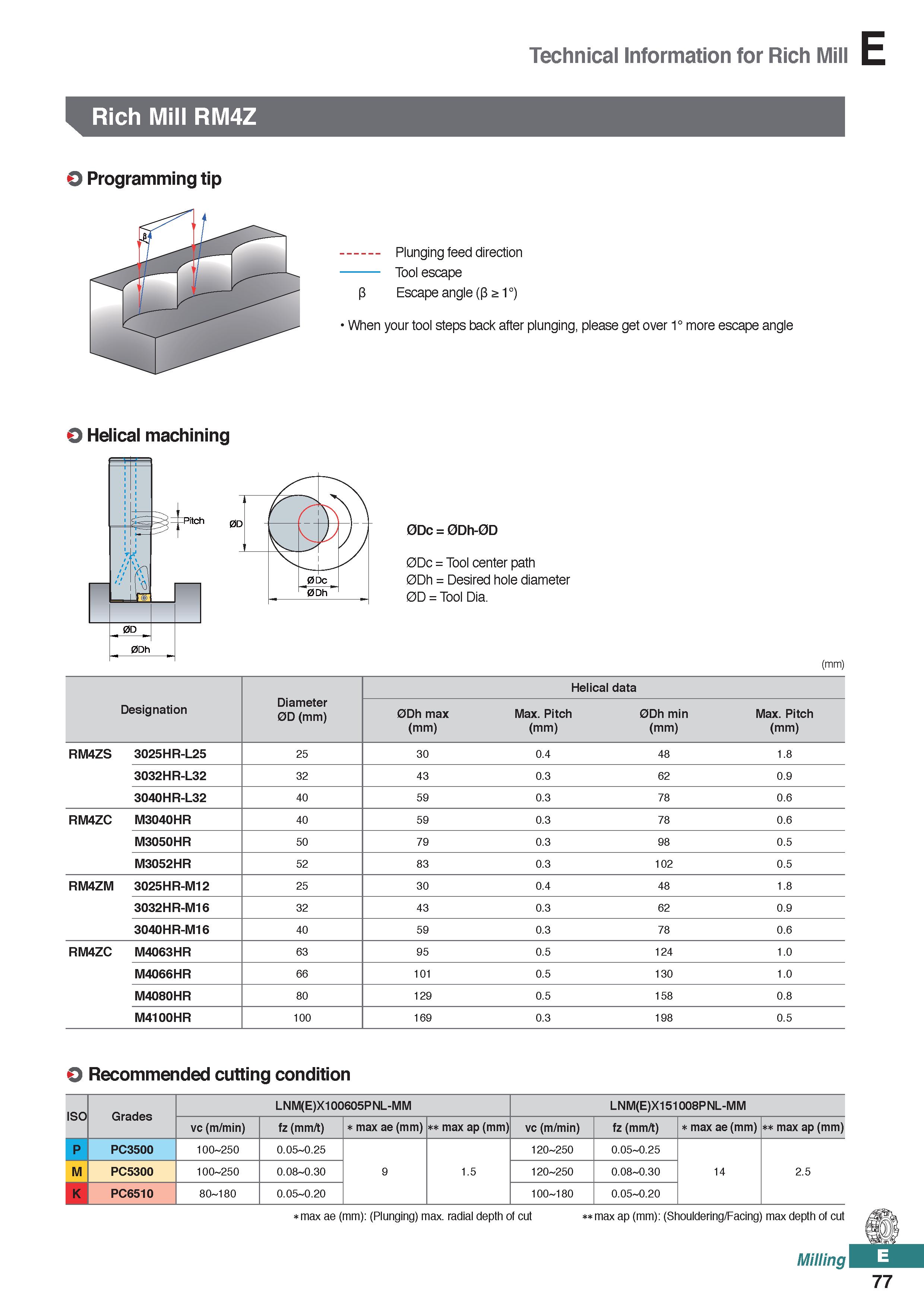

Technical Information for Rich Mill Rich Mill RM4Z O Programming tip O Helical machining 0Dc = 0Dh-0D 0Dc = Tool center path 0Dh = Desired hole diameter 0D = Tool Dia. (mm) Designation Diameter 0D (mm) Helical data 0Dh max (mm) Max. Pitch (mm) 0Dh min (mm) Max. Pitch (mm) RM4ZS 3025HR-L25 25 30 0.4 48 1.8 3032HR-L32 32 43 0.3 62 0.9 3040HR-L32 40 59 0.3 78 0.6 RM4ZC M3040HR 40 59 0.3 78 0.6 M3050HR 50 79 0.3 98 0.5 M3052HR 52 83 0.3 102 0.5 RM4ZM 3025HR-M12 25 30 0.4 48 1.8 3032HR-M16 32 43 0.3 62 0.9 3040HR-M16 40 59 0.3 78 0.6 RM4ZC M4063HR 63 95 0.5 124 1.0 M4066HR 66 101 0.5 130 1.0 M4080HR 80 129 0.5 158 0.8 M4100HR 100 169 0.3 198 0.5 Recommended cutting condition ISO Grades LNM(E)X100605PNL-MM LNM(E)X151008PNL-MM vc (m/min) fz (mm/t) max ae (mm) max ap (mm) vc (m/min) fz (mm/t) max ae (mm) max ap (mm) P PC3500 100 250 0.05 0.25 9 1.5 120 250 0.05 0.25 14 2.5 M PC5300 100 250 0.08 0.30 120 250 0.08 0.30 K PC6510 80 180 0.05 0.20 100 180 0.05 0.20 max ae (mm): (Plunging) max. radial depth of cut max ap (mm): (Shouldering/Facing) max depth of cut Milling 77
