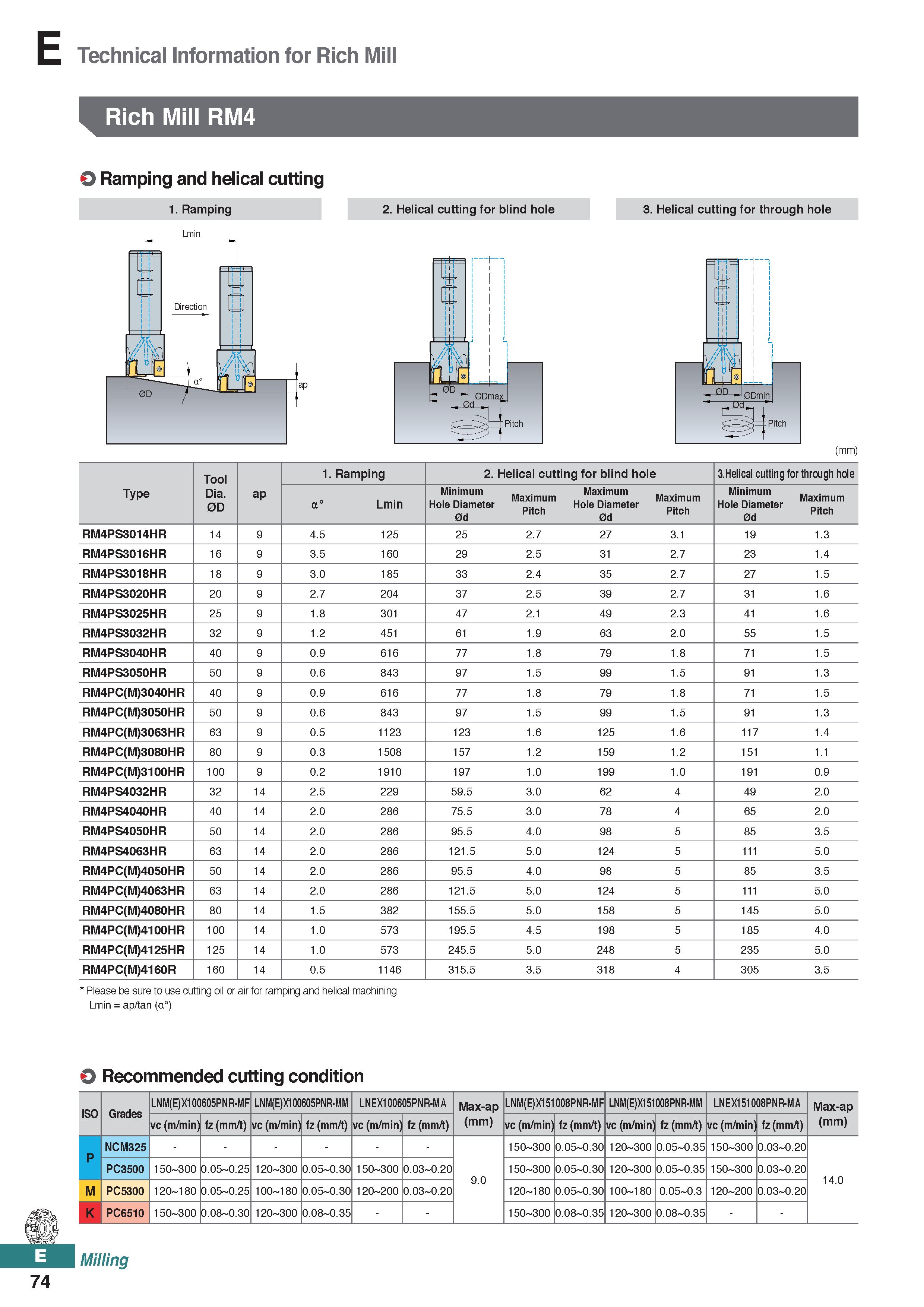

Technical Information for Rich Mill Rich Mill RM4 O Ramping and helical cutting 1. Ramping 2. Helical cutting for blind hole 3. Helical cutting for through hole Lmin (mm) Type Tool Dia. 0D ap 1 Ramping 2. Helical cutting for blind hole 3.Helical cutting for through hole a° Lmin Minimum Hole Diameter 0d ,, . Maximum Maximum Hole Diameter Pitch 0d Maximum Pitch Minimum Hole Diameter 0d Maximum Pitch RM4PS3014HR 14 9 4.5 125 25 2.7 27 3.1 19 1.3 RM4PS3016HR 16 9 3.5 160 29 2.5 31 2.7 23 1.4 RM4PS3018HR 18 9 3.0 185 33 2.4 35 2.7 27 1.5 RM4PS3020HR 20 9 2.7 204 37 2.5 39 2.7 31 1.6 RM4PS3025HR 25 9 1.8 301 47 2.1 49 2.3 41 1.6 RM4PS3032HR 32 9 1.2 451 61 1.9 63 2.0 55 1.5 RM4PS3040HR 40 9 0.9 616 77 1.8 79 1.8 71 1.5 RM4PS3050HR 50 9 0.6 843 97 1.5 99 1.5 91 1.3 RM4PC(M)3040HR 40 9 0.9 616 77 1.8 79 1.8 71 1.5 RM4PC(M)3050HR 50 9 0.6 843 97 1.5 99 1.5 91 1.3 RM4PC(M)3063HR 63 9 0.5 1123 123 1.6 125 1.6 117 1.4 RM4PC(M)3080HR 80 9 0.3 1508 157 1.2 159 1.2 151 1.1 RM4PC(M)3100HR 100 9 0.2 1910 197 1.0 199 1.0 191 0.9 RM4PS4032HR 32 14 2.5 229 59.5 3.0 62 4 49 2.0 RM4PS4040HR 40 14 2.0 286 75.5 3.0 78 4 65 2.0 RM4PS4050HR 50 14 2.0 286 95.5 4.0 98 5 85 3.5 RM4PS4063HR 63 14 2.0 286 121.5 5.0 124 5 111 5.0 RM4PC(M)4050HR 50 14 2.0 286 95.5 4.0 98 5 85 3.5 RM4PC(M)4063HR 63 14 2.0 286 121.5 5.0 124 5 111 5.0 RM4PC(M)4080HR 80 14 1.5 382 155.5 5.0 158 5 145 5.0 RM4PC(M)4100HR 100 14 1.0 573 195.5 4.5 198 5 185 4.0 RM4PC(M)4125HR 125 14 1.0 573 245.5 5.0 248 5 235 5.0 RM4PC(M)4160R 160 14 0.5 1146 315.5 3.5 318 4 305 3.5 ’ Please be sure to use cutting oil or air for ramping and helical machining Lmin = ap/tan (a") O Recommended cutting condition ISO Grades LNM(E)X100605PNR-MF LNM(E)X100605PNR-MM LNEX100605PNR-MA Max-ap (mm) LNM(E)X151008PNR-MF LNM(E)X151008PNR-MM LNEX151008PNR-MA Max-ap (mm) vc (m/min) fz (mm/t) vc (m/min) fz (mm/t) P NCM325 9.0 150 300 0.05 0.30 120 300 0.05 0.35 150 300 0.03 0.20 14.0 PC3500 150 300 0.05 0.25 120 300 0.05 0.30 150 300 0.03 0.20 150 300 0.05 0.30 120 300 0.05 0.35 150 300 0.03 0.20 M PC5300 120 180 0.05 0.25 100 180 0.05 0.30 120 200 0.03 0.20 120 180 0.05 0.30 100 180 0.05 0.3 120 200 0.03 0.20 K PC6510 150 300 0.08 0.30 120 300 0.08 0.35 150 300 0.08 0.35 120 300 0.08 0.35 Milling 74
