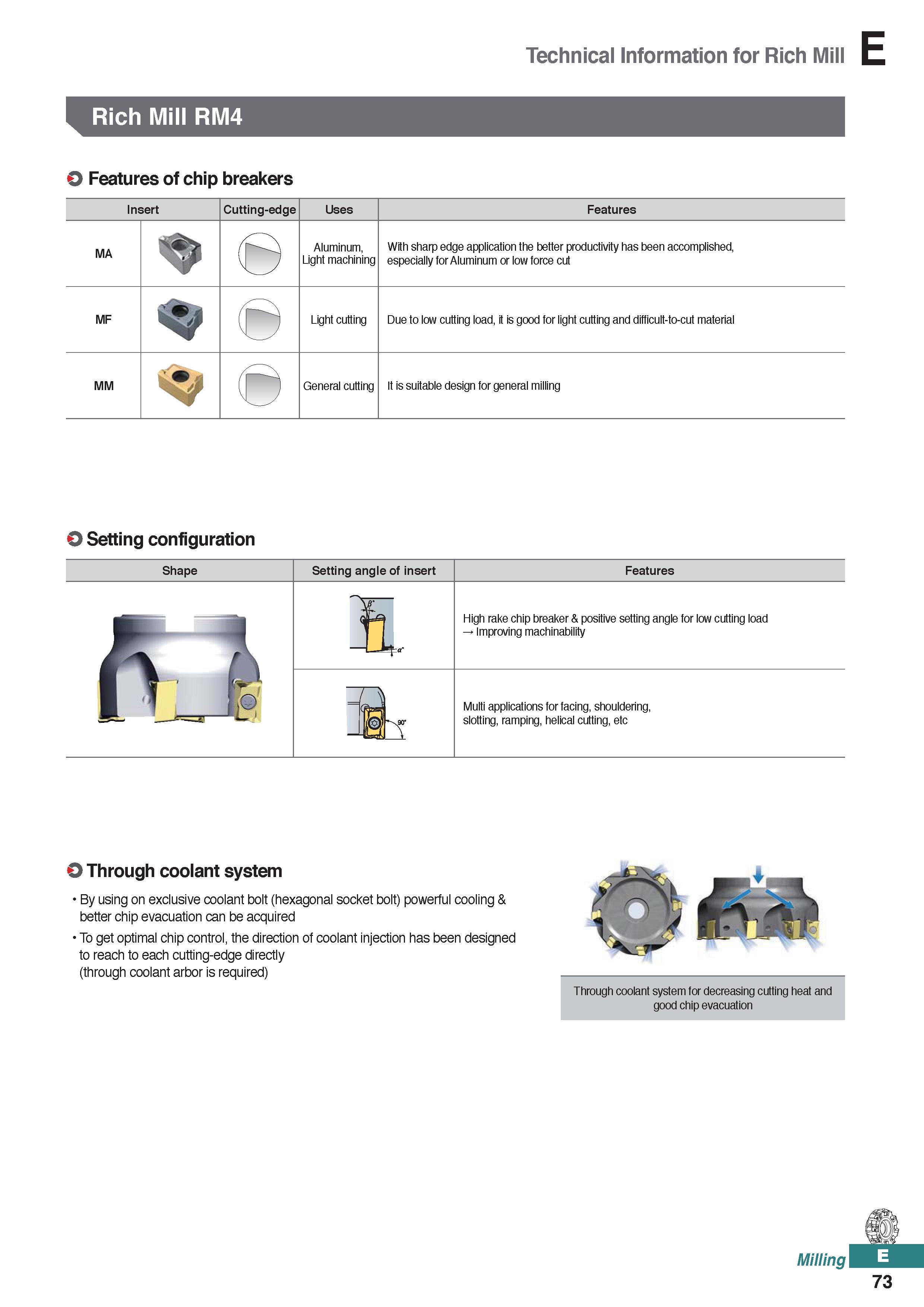

Technical Information for Rich Mill Rich Mill RM4 O Features of chip breakers Insert Cutting-edge Uses Features MA Aluminum, Light machining With sharp edge application the better productivity has been accomplished, especially for Aluminum or low force cut MF o Light cutting Due to low cutting load, it is good for light cutting and difficult-to-cut material MM General cutting It is suitable design for general milling 9 Setting configuration Shape Setting angle of insert Features High rake chip breaker & positive setting angle for low cutting load Improving machinability Multi applications for facing, shouldering, slotting, ramping, helical cutting, etc O Through coolant system By using on exclusive coolant bolt (hexagonal socket bolt) powerful cooling & better chip evacuation can be acquired To get optimal chip control, the direction of coolant injection has been designed to reach to each cutting-edge directly (through coolant arbor is required) Through coolant system for decreasing cutting heat and good chip evacuation
