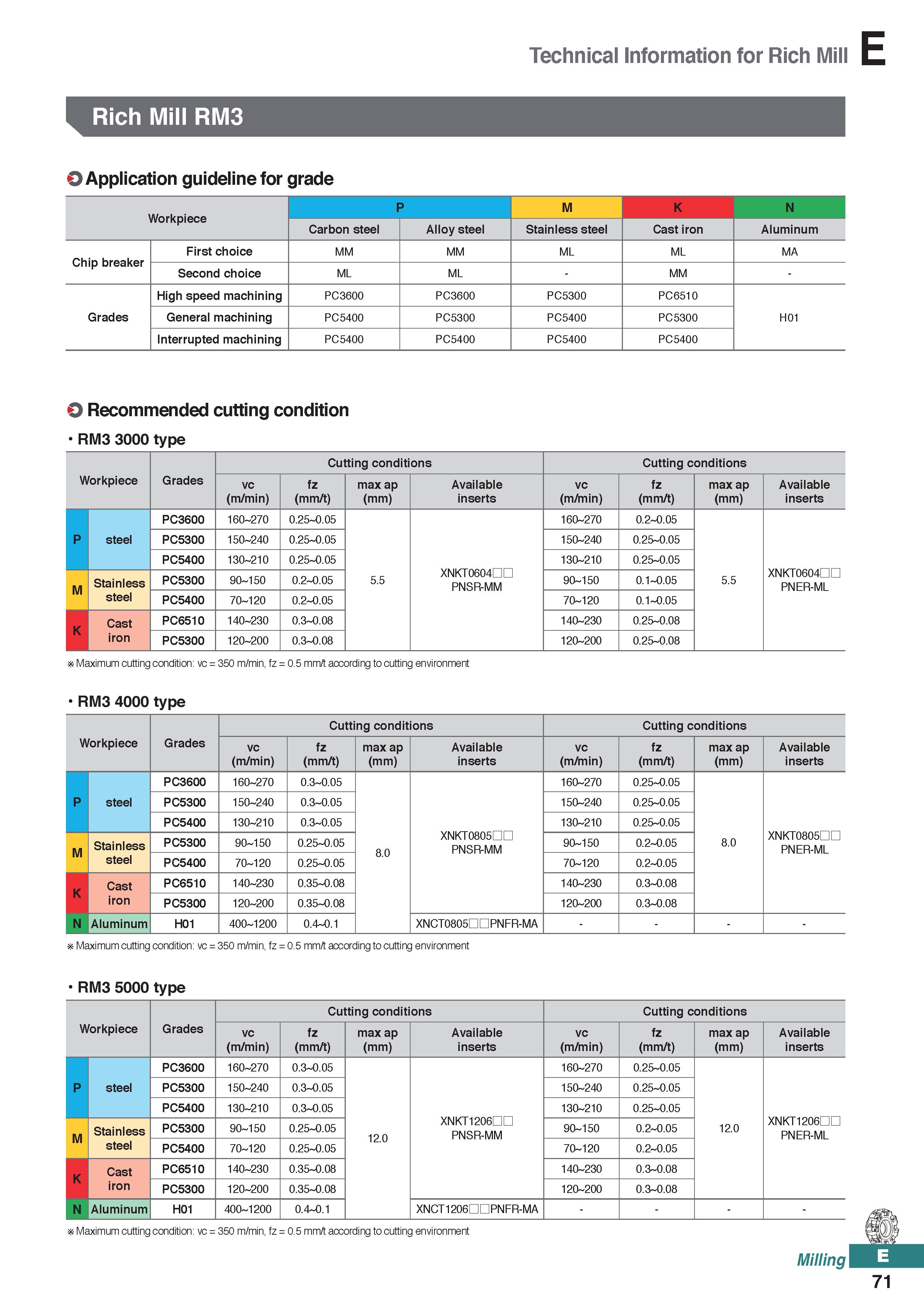

Technical Information for Rich Mill Rich Mill RM3 O Application guideline for grade Workpiece P M K N Carbon steel Alloy steel Stainless steel Cast iron Aluminum Chip breaker First choice MM MM ML ML MA Second choice ML ML - MM - Grades High speed machining PC3600 PC3600 PC5300 PC6510 H01 General machining PC5400 PC5300 PC5400 PC5300 Interrupted machining PC5400 PC5400 PC5400 PC5400 O Recommended cutting condition RM3 3000 type Workpiece Grades Cutting conditions Cutting conditions vc (m/min) fz (mm/t) max ap (mm) Available inserts vc (m/min) fz (mm/t) max ap (mm) Available inserts P steel PC3600 160 270 0.25 0.05 5.5 XNKT0604DD PNSR-MM 160 270 0.2 0.05 5.5 XNKT0604DC PNER-ML PC5300 150 240 0.25 0.05 150 240 0.25 0.05 PC5400 130 210 0.25 0.05 130 210 0.25 0.05 M Stainless steel PC5300 90 150 0.2 0.05 90 150 0.1 0.05 PC5400 70 120 0.2 0.05 70 120 0.1 0.05 K Cast iron PC6510 140 230 0.3 0.08 140 230 0.25 0.08 PC5300 120 200 0.3 0.08 120 200 0.25 0.08 Maximum cutting condition: vc = 350 m/min, fz = 0.5 mm/t according to cutting environment RM3 4000 type Cutting conditions Cutting conditions Workpiece Grades vc (m/min) fz (mm/t) max ap (mm) Available inserts vc (m/min) fz (mm/t) max ap (mm) Available inserts PC3600 160 270 0.3 0.05 160 270 0.25 0.05 P steel PC5300 150 240 0.3 0.05 150 240 0.25 0.05 PC5400 130 210 0.3 0.05 XNKT0805DD PNSR-MM 130 210 0.25 0.05 XNKT0805DC PNER-ML M Stainless PC5300 90 150 0.25 0.05 8.0 90 150 0.2 0.05 8.0 steel PC5400 70 120 0.25 0.05 70 120 0.2 0.05 K Cast PC6510 140 230 0.35 0.08 140 230 0.3 0.08 iron PC5300 120 200 0.35 0.08 120 200 0.3 0.08 N Aluminum H01 400 1200 0.4 0.1 XNCT0805DDPNFR-MA Maximum cutting condition: vc = 350 m/min, fz = 0.5 mm/t according to cutting environment RM3 5000 type Cutting conditions Cutting conditions Workpiece Grades vc (m/min) fz (mm/t) max ap (mm) Available inserts vc (m/min) fz (mm/t) max ap (mm) Available inserts PC3600 160 270 0.3 0.05 160 270 0.25 0.05 P steel PC5300 150 240 0.3 0.05 150 240 0.25 0.05 PC5400 130 210 0.3 0.05 XNKT1206DD PNSR-MM 130 210 0.25 0.05 XNKT1206DC PNER-ML M Stainless PC5300 90 150 0.25 0.05 12.0 90 150 0.2 0.05 12.0 steel PC5400 70 120 0.25 0.05 70 120 0.2 0.05 K Cast PC6510 140 230 0.35 0.08 140 230 0.3 0.08 iron PC5300 120 200 0.35 0.08 120 200 0.3 0.08 N Aluminum H01 400 1200 0.4 0.1 XNCT1206DDPNFR-MA Maximum cutting condition: vc = 350 m/min, fz = 0.5 mm/t according to cutting environment Millin 71
