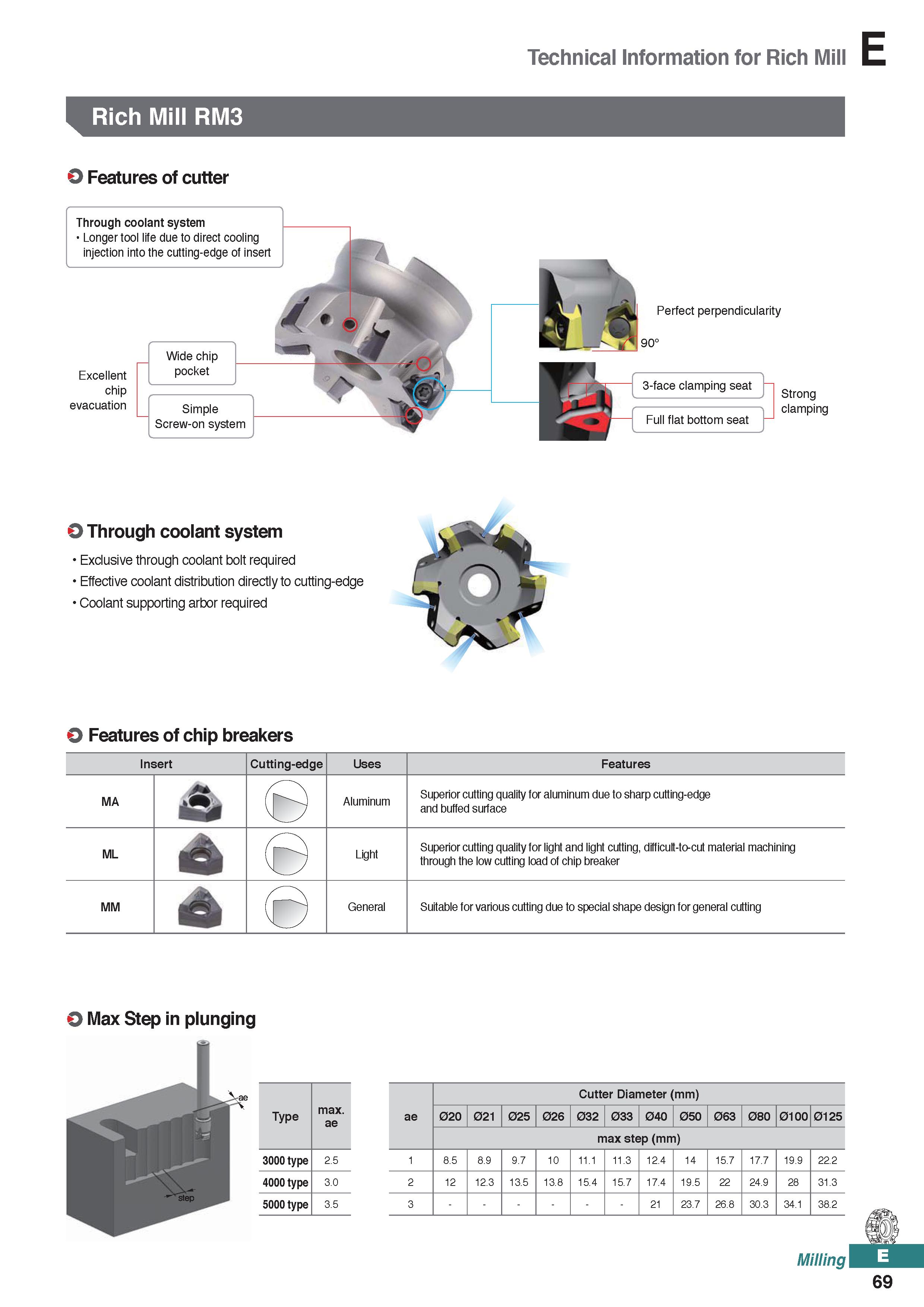

Technical Information for Rich Mill Rich Mill RM3 O Features of cutter Through coolant system Longer tool life due to direct cooling injection into the cutting-edge of insert Wide chip Excellent pocket j 5 chip evacuation Simple Screw-on system Perfect perpendicularity 3-face clamping seat Full flat bottom seat Strong clamping O Through coolant system Exclusive through coolant bolt required Effective coolant distribution directly to cutting-edge Coolant supporting arbor required O Features of chip breakers Insert Cutting-edge Uses Features MA & ( 8 Aluminum Superior cutting quality for aluminum due to sharp cutting-edge and buffed surface ML & ( 8 Light Superior cutting quality for light and light cutting, difficult-to-cut material machining through the low cutting load of chip breaker MM A ( 8 General Suitable for various cutting due to special shape design for general cutting O Max Step in plunging Cutter Diameter (mm) Type max. ae ae 020 021 025 026 032 033 040 050 063 080 0100 0125 max step (mm) 3000 type 2.5 1 8.5 8.9 9.7 10 11.1 11.3 12.4 14 15.7 17.7 19.9 22.2 4000 type 3.0 2 12 12.3 13.5 13.8 15.4 15.7 17.4 19.5 22 24.9 28 31.3 5000 type 3.5 3 21 23.7 26.8 30.3 34.1 38.2 Milling 69
