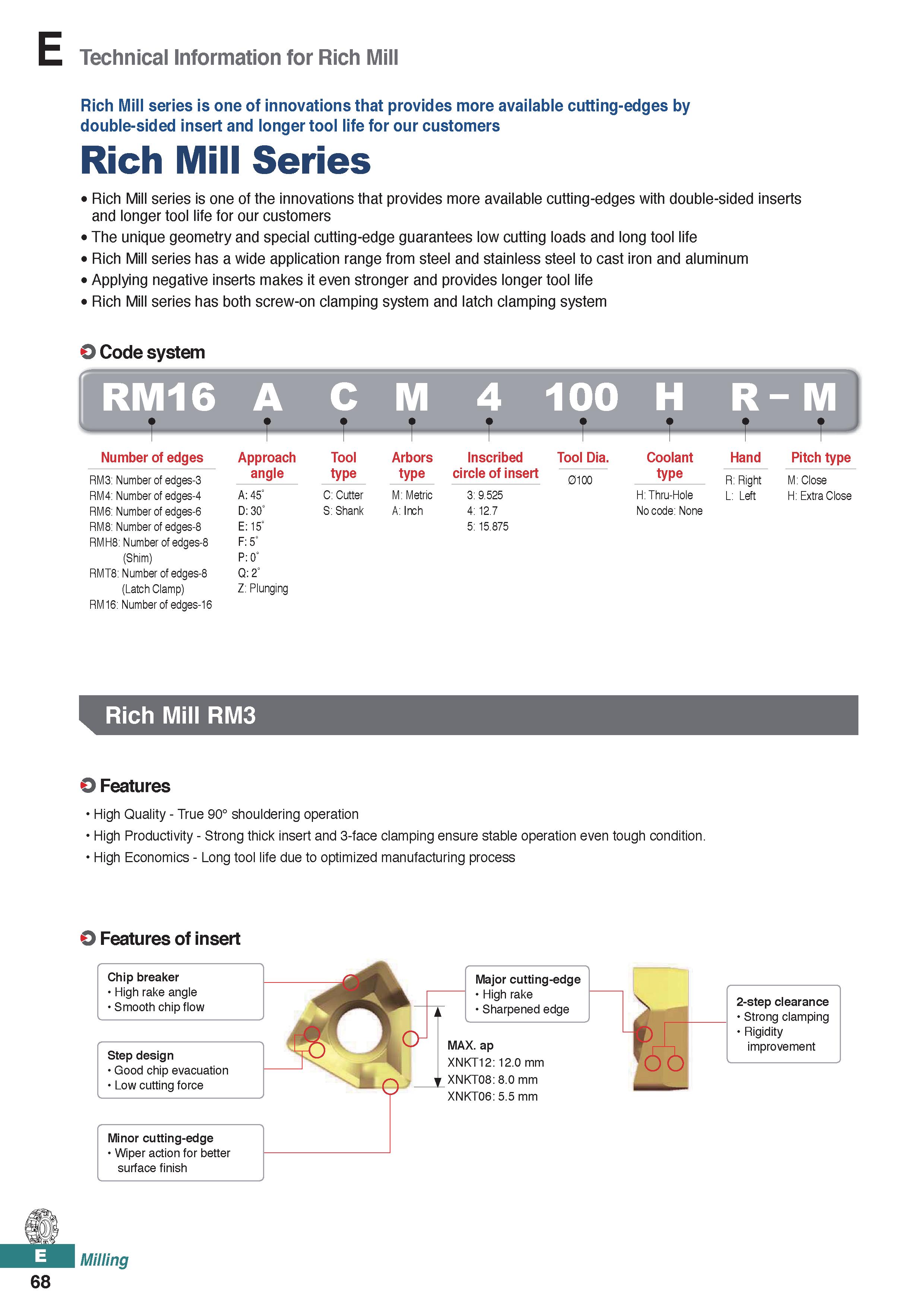

Technical Information for Rich Mill Rich Mill series is one of innovations that provides more available cutting-edges by double-sided insert and longer tool life for our customers Rich Mill Series Rich Mill series is one of the innovations that provides more available cutting-edges with double-sided inserts and longer tool life for our customers The unique geometry and special cutting-edge guarantees low cutting loads and long tool life Rich Mill series has a wide application range from steel and stainless steel to cast iron and aluminum Applying negative inserts makes it even stronger and provides longer tool life Rich Mill series has both screw-on clamping system and latch clamping system 0 Code system RM16 A C M 4 100 H R - M Number of edges Approach Tool Arbors Inscribed Tool Dia. Coolant Hand Pitch type RM3: Number of edges-3 RM4: Number of edges-4 RM6: Number of edges-6 RM8: Number of edges-8 RMH8: Number of edges-8 (Shim) RMT8: Number of edges-8 (Latch Clamp) RM16: Number of edges-16 angle type type circle of insert 0100 type R: Right L: Left M: Close A: 45" D: 30" E: 15" F: 5" P:0" Q:2" Z: Plunging C: Cutter S:Shank M: Metric A: Inch 3: 9.525 4: 12.7 5: 15.875 H: Thru-Hole No code: None H: Extra Close Rich Mill RM3 9 Features High Quality - True 90° shouldering operation High Productivity - Strong thick insert and 3-face clamping ensure stable operation even tough condition. High Economics - Long tool life due to optimized manufacturing process O Features of insert Chip breaker High rake angle Smooth chip flow Step design Good chip evacuation Low cutting force Major cutting-edge High rake Sharpened edge MAX. ap XNKT12: 12.0 mm XNKT08: 8.0 mm XNKT06: 5.5 mm 2-step clearance Strong clamping Rigidity improvement Minor cutting-edge Wiper action for better surface finish 68
