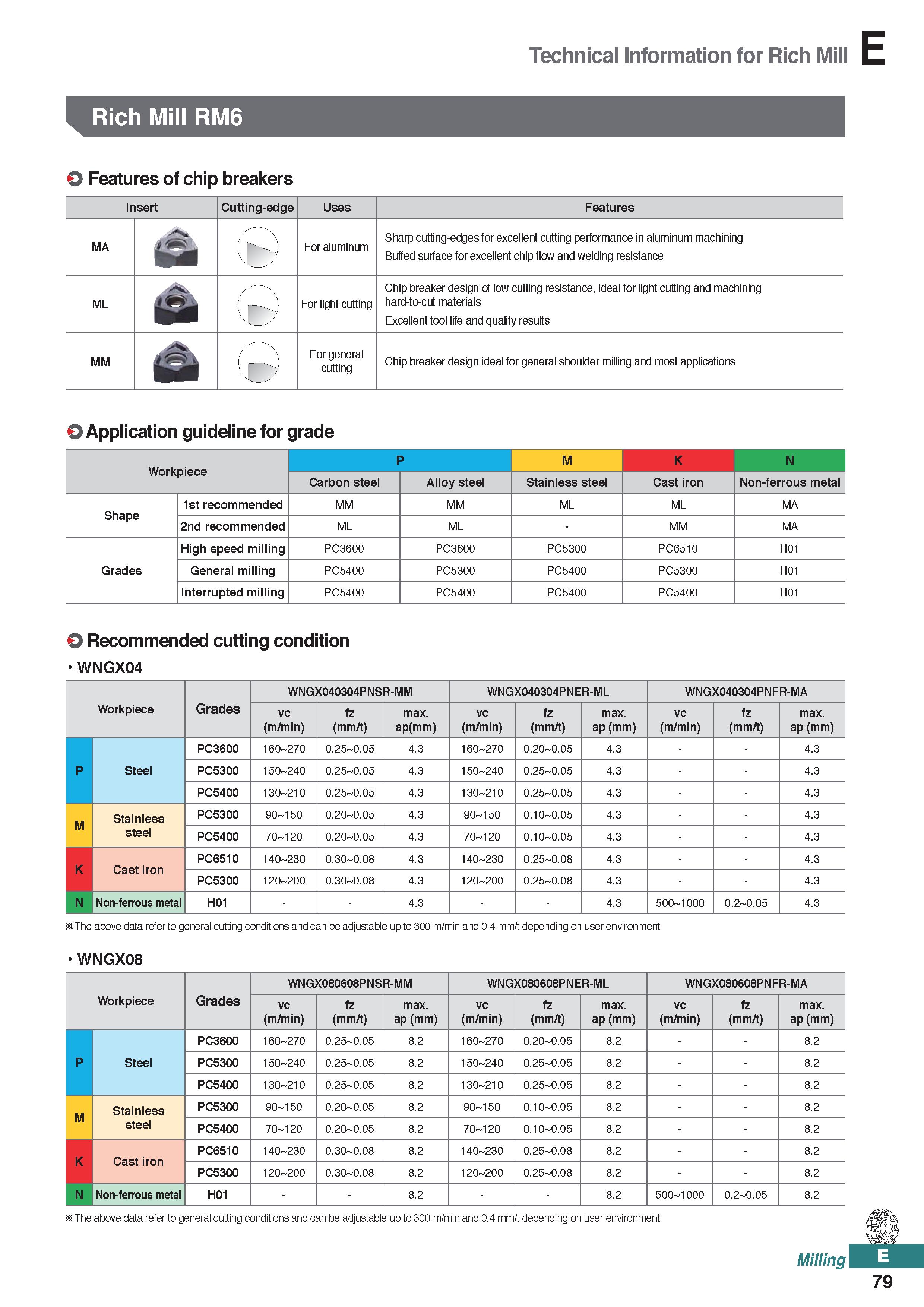

Technical Information for Rich Mill Rich Mill RM6 O Features of chip breakers Insert Cutting-edge Uses Features MA & For aluminum Sharp cutting-edges for excellent cutting performance in aluminum machining Buffed surface for excellent chip flow and welding resistance ML i£m 0 For light cutting Chip breaker design of low cutting resistance, ideal for light cutting and machining hard-to-cut materials Excellent tool life and quality results MM (c9 For general cutting Chip breaker design ideal for general shoulder milling and most applications O Application guideline for grade Workpiece P M K N Carbon steel Alloy steel Stainless steel Cast iron Non-ferrous metal Shape 1st recommended MM MM ML ML MA 2nd recommended ML ML - MM MA Grades High speed milling PC3600 PC3600 PC5300 PC6510 H01 General milling PC5400 PC5300 PC5400 PC5300 H01 Interrupted milling PC5400 PC5400 PC5400 PC5400 H01 O Recommended cutting condition WNGX04 WNGX040304PNSR-MM WNGX040304PNER-ML WNGX040304PNFR-MA Workpiece Grades vc fz max. vc fz max. vc fz max. (m/min) (mm/t) ap(mm) (m/min) (mm/t) ap (mm) (m/min) (mm/t) ap (mm) PC3600 160 270 0.25 0.05 4.3 160 270 0.20 0.05 4.3 4.3 P Steel PC5300 150 240 0.25 0.05 4.3 150 240 0.25 0.05 4.3 4.3 PC5400 130 210 0.25 0.05 4.3 130 210 0.25 0.05 4.3 4.3 M Stainless PC5300 90 150 0.20 0.05 4.3 90 150 0.10 0.05 4.3 4.3 steel PC5400 70 120 0.20 0.05 4.3 70 120 0.10 0.05 4.3 4.3 K Cast iron PC6510 140 230 0.30 0.08 4.3 140 230 0.25 0.08 4.3 4.3 PC5300 120 200 0.30 0.08 4.3 120 200 0.25 0.08 4.3 4.3 N Non-ferrous metal H01 4.3 4.3 500 1000 0.2 0.05 4.3 m The above data refer to general cutting conditions and can be adjustable up to 300 m/min and 0.4 mm/t depending on user environment. WNGX08 WNGX080608PNSR-MM WNGX080608PNER-ML WNGX080608PNFR-MA Workpiece Grades vc (m/min) fz (mm/t) max. ap (mm) vc (m/min) fz (mm/t) max. ap (mm) vc (m/min) fz (mm/t) max. ap (mm) PC3600 160 270 0.25 0.05 8.2 160 270 0.20 0.05 8.2 8.2 P Steel PC5300 150 240 0.25 0.05 8.2 150 240 0.25 0.05 8.2 8.2 PC5400 130 210 0.25 0.05 8.2 130 210 0.25 0.05 8.2 8.2 M Stainless PC5300 90 150 0.20 0.05 8.2 90 150 0.10 0.05 8.2 8.2 steel PC5400 70 120 0.20 0.05 8.2 70 120 0.10 0.05 8.2 8.2 K Cast iron PC6510 140 230 0.30 0.08 8.2 140 230 0.25 0.08 8.2 8.2 PC5300 120 200 0.30 0.08 8.2 120 200 0.25 0.08 8.2 8.2 N Non-ferrous metal H01 8.2 8.2 500 1000 0.2 0.05 8.2 The above data refer to general cutting conditions and can be adjustable up to 300 m/min and 0.4 mm/t depending on user environment. Milling 79
