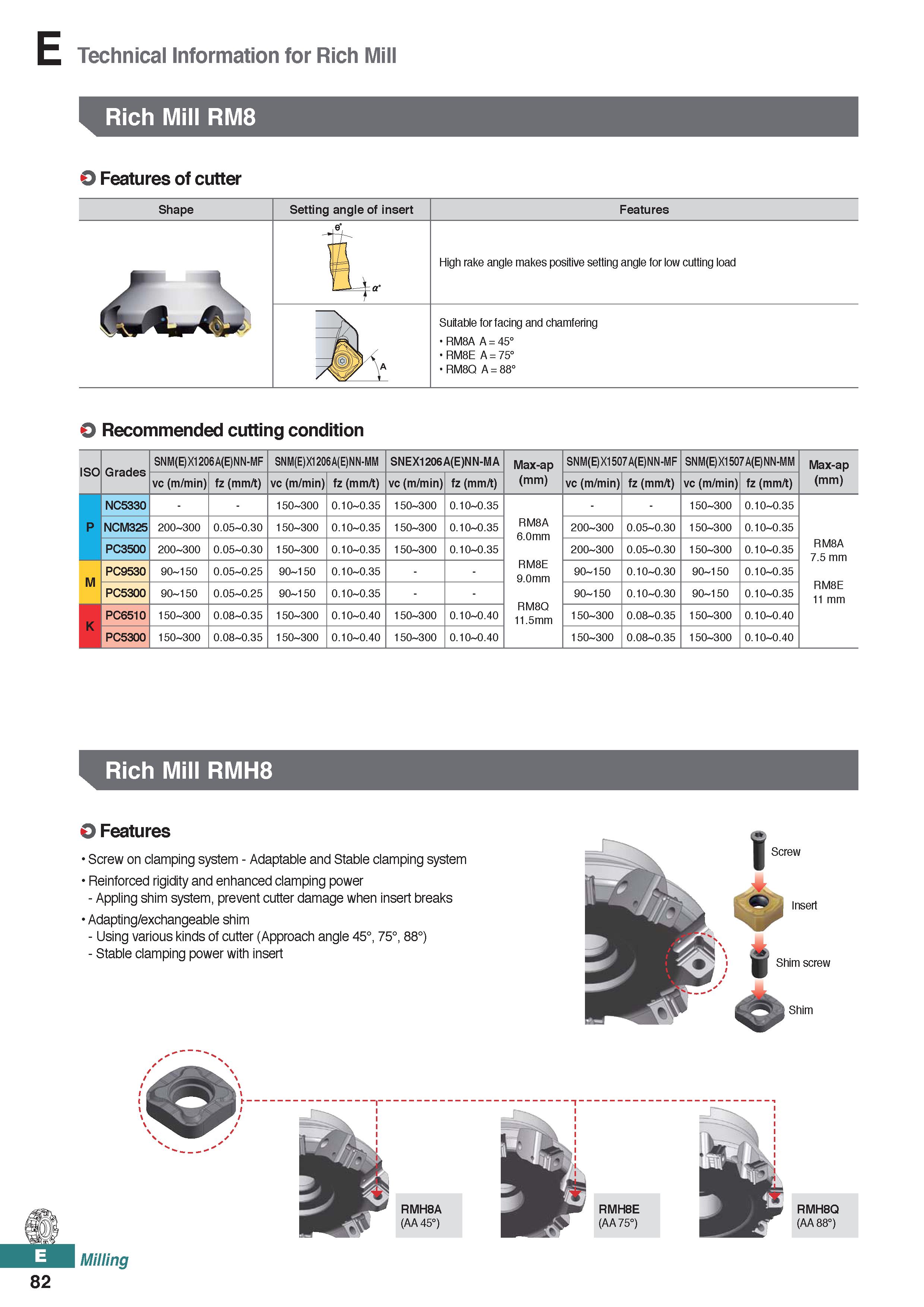

E Technical Information for Rich Mill Rich Mill RM8 O Features of cutter Shape Setting angle of insert Features e° High rake angle makes positive setting angle for low cutting load 7 ' V Suitable for facing and chamfering RM8A A = 45° RM8E A = 75° RM8Q A = 88° O Recommended cutting condition ISO Grades SNM(E)X1206A(E)NN-MF SNM(E)X1206A(E)NN-MM SNEX1206A(E)NN-MA Max-ap SNM(E)X1507A(E)NN-MF SNM(E)X1507A(E)NN-MM Max-ap vc (m/min) fz (mm/t) vc (m/min) fz (mm/t) (mm) vc (m/min) fz (mm/t) vc (m/min) fz (mm/t) (mm) NC5330 150 300 0.10 0.35 150 300 0.10 0.35 150 300 0.10 0.35 P NCM325 200 300 0.05 0.30 150 300 0.10 0.35 150 300 0.10 0.35 RM8A 6.0mm 200 300 0.05 0.30 150 300 0.10 0.35 PC3500 200 300 0.05 0.30 150 300 0.10 0.35 150 300 0.10 0.35 200 300 0.05 0.30 150 300 0.10 0.35 RM8A 7.5 mm M PC9530 90 150 0.05 0.25 90 150 0.10 0.35 RM8E 9.0mm RM8Q 11.5mm 90 150 0.10 0.30 90 150 0.10 0.35 PC5300 90 150 0.05 0.25 90 150 0.10 0.35 90 150 0.10 0.30 90 150 0.10 0.35 RM8E 11 mm K PC6510 150 300 0.08 0.35 150 300 0.10 0.40 150 300 0.10 0.40 150 300 0.08 0.35 150 300 0.10 0.40 PC5300 150 300 0.08 0.35 150 300 0.10 0.40 150 300 0.10 0.40 150 300 0.08 0.35 150 300 0.10 0.40 Rich Mill RMH8 O Features Screw on clamping system - Adaptable and Stable clamping system Reinforced rigidity and enhanced clamping power - Appling shim system, prevent cutter damage when insert breaks Adapting/exchangeable shim - Using various kinds of cutter (Approach angle 45°, 75°, 88°) - Stable clamping power with insert I Screw Insert Shim screw Shim RMH8A (AA 45°) RMH8E (AA 75°) RMH8Q (AA 88°) 82
