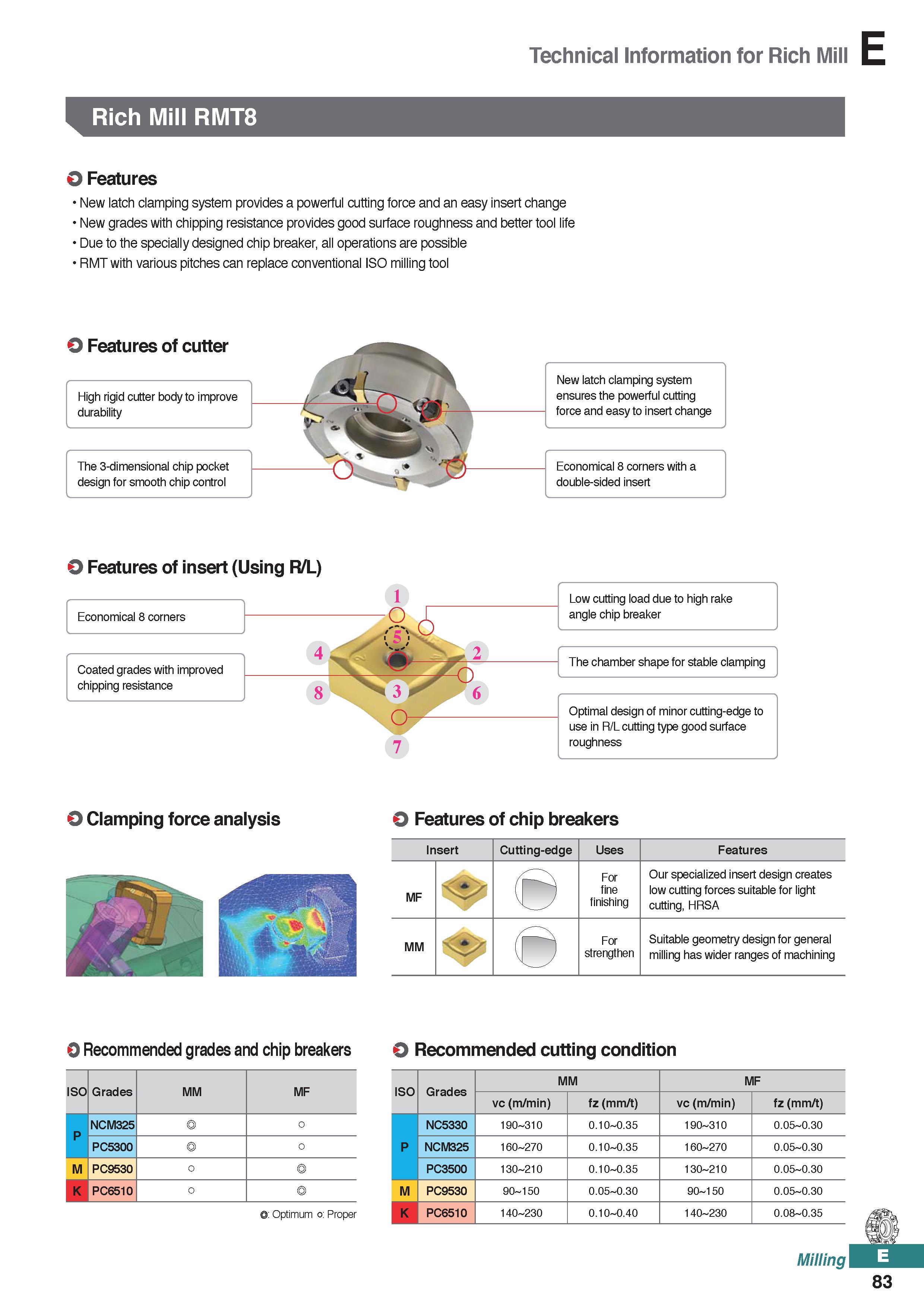

Technical Information for Rich Mill Rich Mill RMT8 O Features New latch clamping system provides a powerful cutting force and an easy insert change New grades with chipping resistance provides good surface roughness and better tool life Due to the specially designed chip breaker, all operations are possible RMT with various pitches can replace conventional ISO milling tool 9 Features of cutter High rigid cutter body to improve durability The 3-dimensional chip pocket design for smooth chip control New latch clamping system ensures the powerful cutting force and easy to insert change Economical 8 corners with a double-sided insert O Features of insert (Using R/L) O Clamping force analysis O Features of chip breakers Insert Cutting-edge Uses Features MF For fine finishing Our specialized insert design creates low cutting forces suitable for light cutting, HRSA MM 3 For strengthen Suitable geometry design for general milling has wider ranges of machining 0 Recommended grades and chip breakers O Recommended cutting condition ISO Grades MM MF ISO Grades MM MF vc (m/min) fz (mm/t) vc (m/min) fz (mm/t) P NCM325 0 P NC5330 190 310 0.10 0.35 190 310 0.05 0.30 PC5300 0 NCM325 160 270 0.10 0.35 160 270 0.05 0.30 M PC9530 0 PC3500 130 210 0.10 0.35 130 210 0.05 0.30 K PC6510 0 M PC9530 90 150 0.05 0.30 90 150 0.05 0.30 : Optimum o: Proper K PC6510 140 230 0.10 0.40 140 230 0.08 0.35 Milling 83
