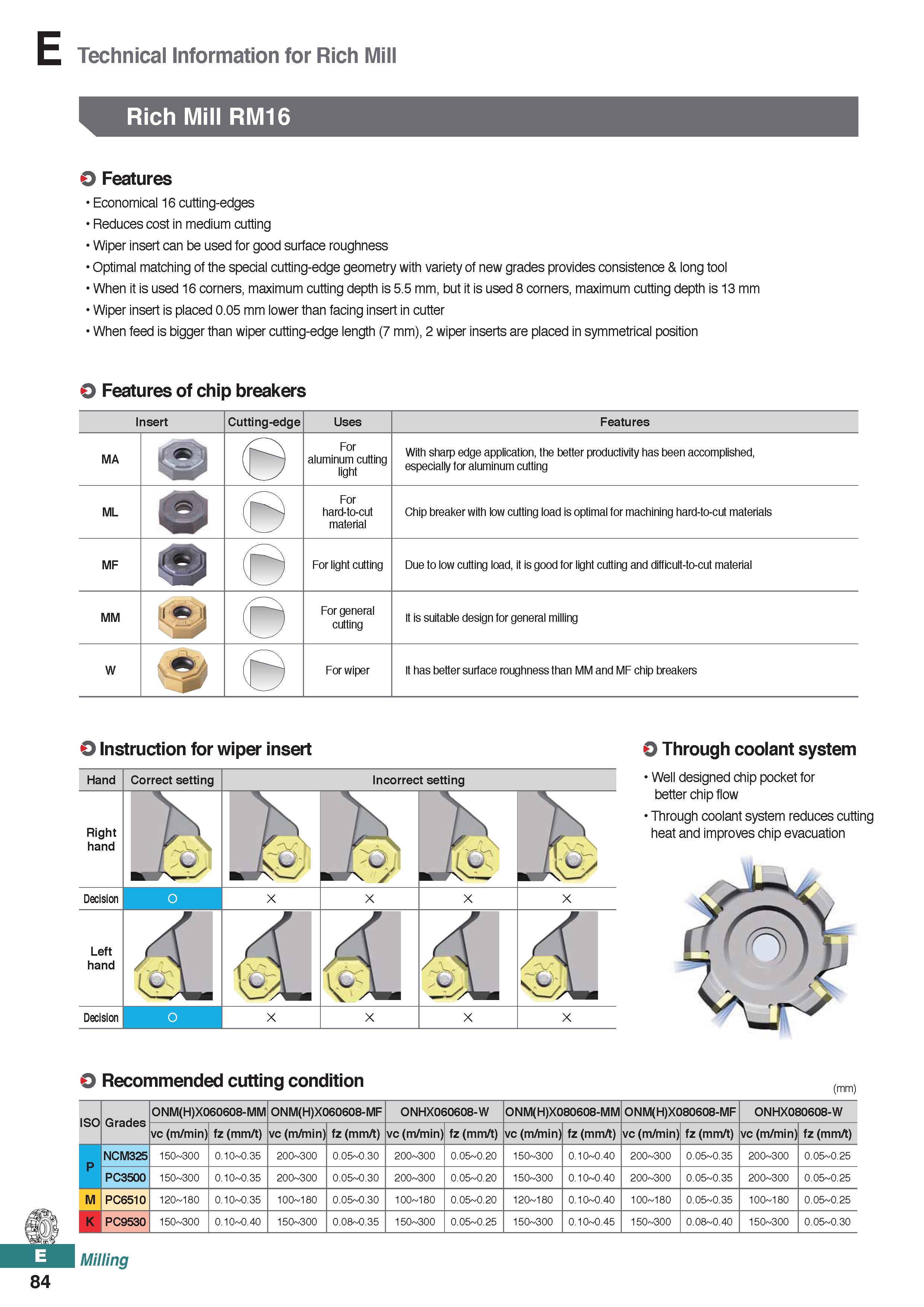

Technical Information for Rich Mill Rich Mill RM16 r “-:S- 'C ’ii- -is W-': ->yi‘r ' .y ,/ :/ ' :y->-.; ' I .;-';:vV> V. v;-o.; .:; ; j O Features Economical 16 cutting-edges Reduces cost in medium cutting Wiper insert can be used for good surface roughness Optimal matching of the special cutting-edge geometry with variety of new grades provides consistence & long tool When it is used 16 corners, maximum cutting depth is 5.5 mm, but it is used 8 corners, maximum cutting depth is 13 mm Wiper insert is placed 0.05 mm lower than facing insert in cutter When feed is bigger than wiper cutting-edge length (7 mm), 2 wiper inserts are placed in symmetrical position O Features of chip breakers Insert Cutting-edge Uses Features MA C ) 5 For aluminum cutting light With sharp edge application, the better productivity has been accomplished, especially for aluminum cutting ML f - 1 5 For hard-to-cut material Chip breaker with low cutting load is optimal for machining hard-to-cut materials MF D For light cutting Due to low cutting load, it is good for light cutting and difficult-to-cut material MM o For general cutting It is suitable design for general milling W o For wiper It has better surface roughness than MM and MF chip breakers O Instruction for wiper insert Incorrect setting Decision X X O Through coolant system Well designed chip pocket for better chip flow Through coolant system reduces cutting heat and improves chip evacuation 0 Recommended cutting condition (mm) ISO Grades ONM(H)X060608-MM ONM(H)X060608-MF ONHX060608-W ONM(H)X080608-MM ONM(H)X080608-MF ONHX080608-W vc (m/min) fz (mm/t) vc (m/min) fz (mm/t) P NCM325 150 300 0.10 0.35 200 300 0.05 0.30 200 300 0.05 0.20 150 300 0.10 0.40 200 300 0.05 0.35 200 300 0.05 0.25 PC3500 150 300 0.10 0.35 200 300 0.05 0.30 200 300 0.05 0.20 150 300 0.10 0.40 200 300 0.05 0.35 200 300 0.05 0.25 M PC6510 120 180 0.10 0.35 100 180 0.05 0.30 100 180 0.05 0.20 120 180 0.10 0.40 100 180 0.05 0.35 100 180 0.05 0.25 K PC9530 150 300 0.10 0.40 150 300 0.08 0.35 150 300 0.05 0.25 150 300 0.10 0.45 150 300 0.08 0.40 150 300 0.05 0.30 84 Milling X
