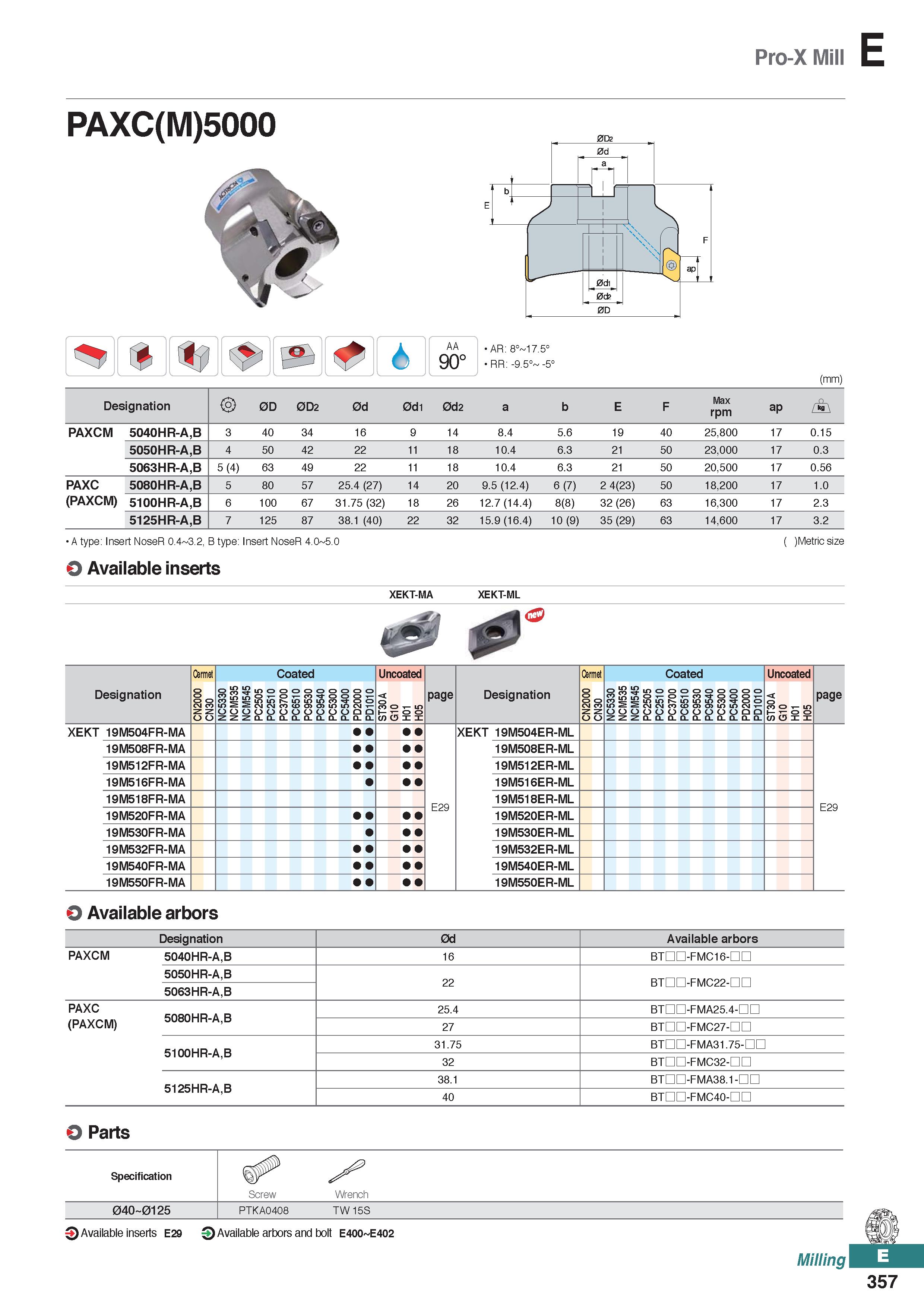

Pro-X Mill E PAXC(M)5000 AA 90° AR: 8° 17.5° RR: -9.5° -5° (mm) Designation 0D 0D2 0d 0d1 0d2 a b E F Max rpm ap / to \ PAXCM 5040HR-A,B 3 40 34 16 9 14 8.4 5.6 19 40 25,800 17 0.15 5050HR-A,B 4 50 42 22 11 18 10.4 6.3 21 50 23,000 17 0.3 5063HR-A,B 5 (4) 63 49 22 11 18 10.4 6.3 21 50 20,500 17 0.56 PAXC 5080HR-A,B 5 80 57 25.4 (27) 14 20 9.5 (12.4) 6 (7) 2 4(23) 50 18,200 17 1.0 (PAXCM) 5100HR-A,B 6 100 67 31.75 (32) 18 26 12.7 (14.4) 8(8) 32 (26) 63 16,300 17 2.3 5125HR-A,B 7 125 87 38.1 (40) 22 32 15.9 (16.4) 10 (9) 35 (29) 63 14,600 17 3.2 A type: Insert NoseR 0.4 3.2, B type: Insert NoseR 4.0 5.0 O Available inserts ( )Metric size XEKT-MA XEKT-ML Cermet Coated Uncoated Cermet Coated Uncoated Designation CN2000 CN30 NC5330 NCM535 5 34 55 M C N PC2505 PC2510 PC3700 PC6510 PC9530 00 34 55 99 CC CL CL. PC5400 PD2000 PD1010 ST30A G10 H01 H05 page Designation CN2000 CN30 NC5330 NCM535 5 34 55 M C N PC2505 PC2510 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 PD2000 0 00 D2 P ST30A G10 H01 H05 page XEKT 19M504FR-MA XEKT 19M504ER-ML 19M508FR-MA 19M508ER-ML 19M512FR-MA 19M512ER-ML 19M516FR-MA 19M516ER-ML 19M518FR-MA E29 19M518ER-ML E29 19M520FR-MA 19M520ER-ML 19M530FR-MA 19M530ER-ML 19M532FR-MA 19M532ER-ML 19M540FR-MA 19M540ER-ML 19M550FR-MA 19M550ER-ML O Available arbors Designation 0d Available arbors PAXCM 5040HR-A,B 16 BTHO-FMC16-DD 5050HR-A,B 22 BTDD-FMC22-DC 5063HR-A,B PAXC (PAXCM) 5080HR-A,B 25.4 BTHD-FMA25.4-DD 27 BTHD-FMC27-DD 5100HR-A,B 31.75 BTHD-FMA31.75-HD 32 BTHD-FMC32-DD 5125HR-A,B 38.1 BTHD-FMA38.1-DD 40 BTDD-FMC40-nn O Parts Specification 5 Screw Wrench 04O 0125 PTKA0408 TW 15S Q Available inserts E29 Q Available arbors and bolt E400 E402 Milling 357
