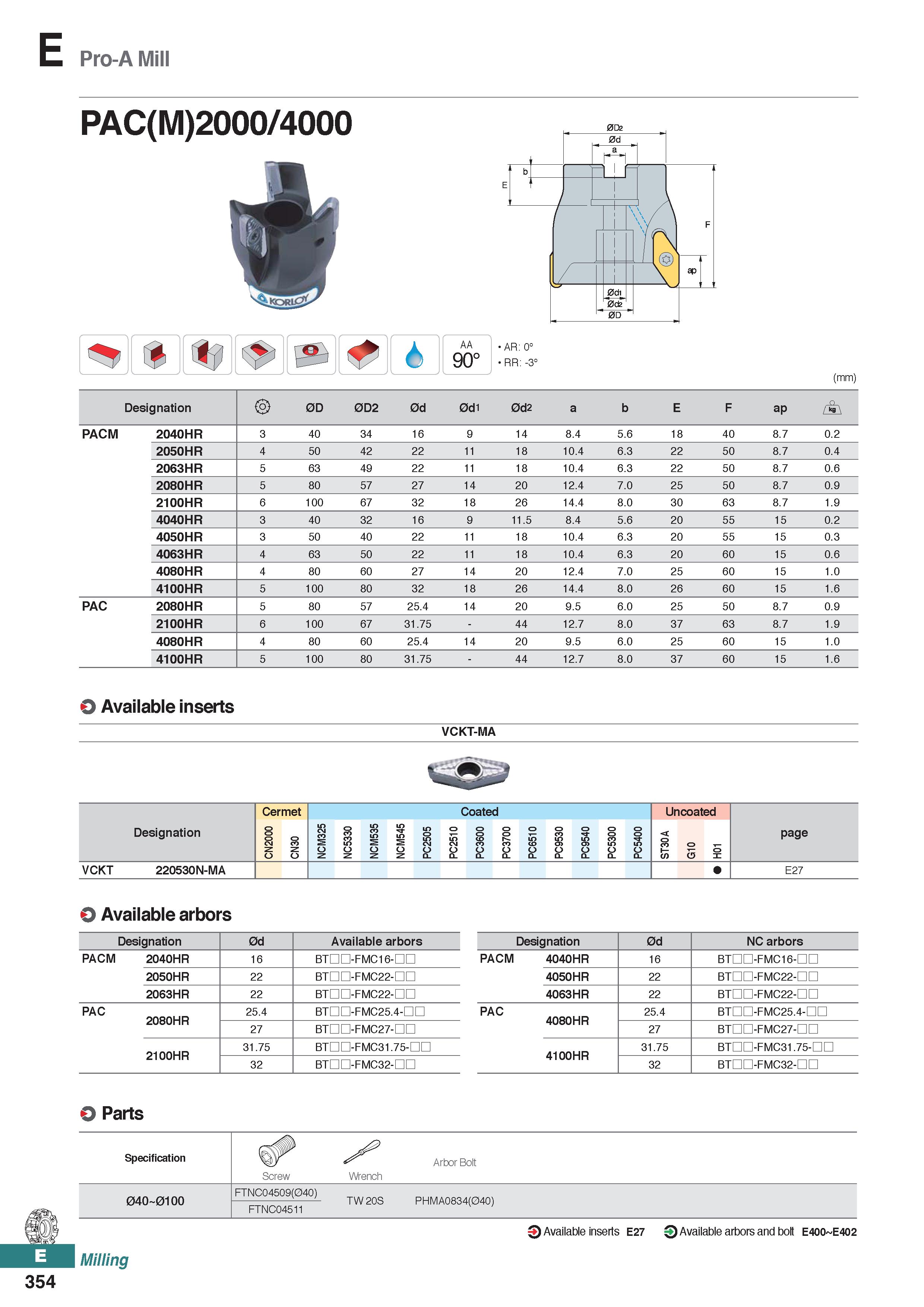

E Pro-A Mill PAC(M)2000/4000 AA 90° AR: 0° RR: -3° (mm) Designation 0D 0D2 0d 0d1 0d2 a b E F ap /i\ PACM 2040HR 3 40 34 16 9 14 8.4 5.6 18 40 8.7 0.2 2050HR 4 50 42 22 11 18 10.4 6.3 22 50 8.7 0.4 2063HR 5 63 49 22 11 18 10.4 6.3 22 50 8.7 0.6 2080HR 5 80 57 27 14 20 12.4 7.0 25 50 8.7 0.9 2100HR 6 100 67 32 18 26 14.4 8.0 30 63 8.7 1.9 4040HR 3 40 32 16 9 11.5 8.4 5.6 20 55 15 0.2 4050HR 3 50 40 22 11 18 10.4 6.3 20 55 15 0.3 4063HR 4 63 50 22 11 18 10.4 6.3 20 60 15 0.6 4080HR 4 80 60 27 14 20 12.4 7.0 25 60 15 1.0 4100HR 5 100 80 32 18 26 14.4 8.0 26 60 15 1.6 PAC 2080HR 5 80 57 25.4 14 20 9.5 6.0 25 50 8.7 0.9 2100HR 6 100 67 31.75 - 44 12.7 8.0 37 63 8.7 1.9 4080HR 4 80 60 25.4 14 20 9.5 6.0 25 60 15 1.0 4100HR 5 100 80 31.75 - 44 12.7 8.0 37 60 15 1.6 O Available inserts VCKT-MA Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A G10 H01 page VCKT 220530N-MA E27 Available arbors Designation 0d Available arbors PACM 2040HR 16 BTDD-FMC16-nn 2050HR 22 BTDD-FMC22-nn 2063HR 22 BTDD-FMC22-nn PAC 2080HR 25.4 BTDD-FMC25.4-nn 27 BTDD-FMC27-nn 2100HR 31.75 BTDD-FMC31.75-nn 32 BTDD-FMC32-nn Designation 0d NC arbors PACM 4040HR 16 BTHD-FMC16-DD 4050HR 22 BTHD-FMC22-DD 4063HR 22 BTHD-FMC22-DD PAC 4080HR 25.4 BTHD-FMC25.4-HD 27 BTHD-FMC27-DD 4100HR 31.75 BTHD-FMC31.75-DD 32 BTHD-FMC32-DD O Parts Specification Screw Wrench Arbor Bolt 04O 01OO FTNC04509(040) TW 20S PHMA0834(040) FTNC04511 Q Available inserts E27 O Available arbors and bolt E400 E402 Milling 354
