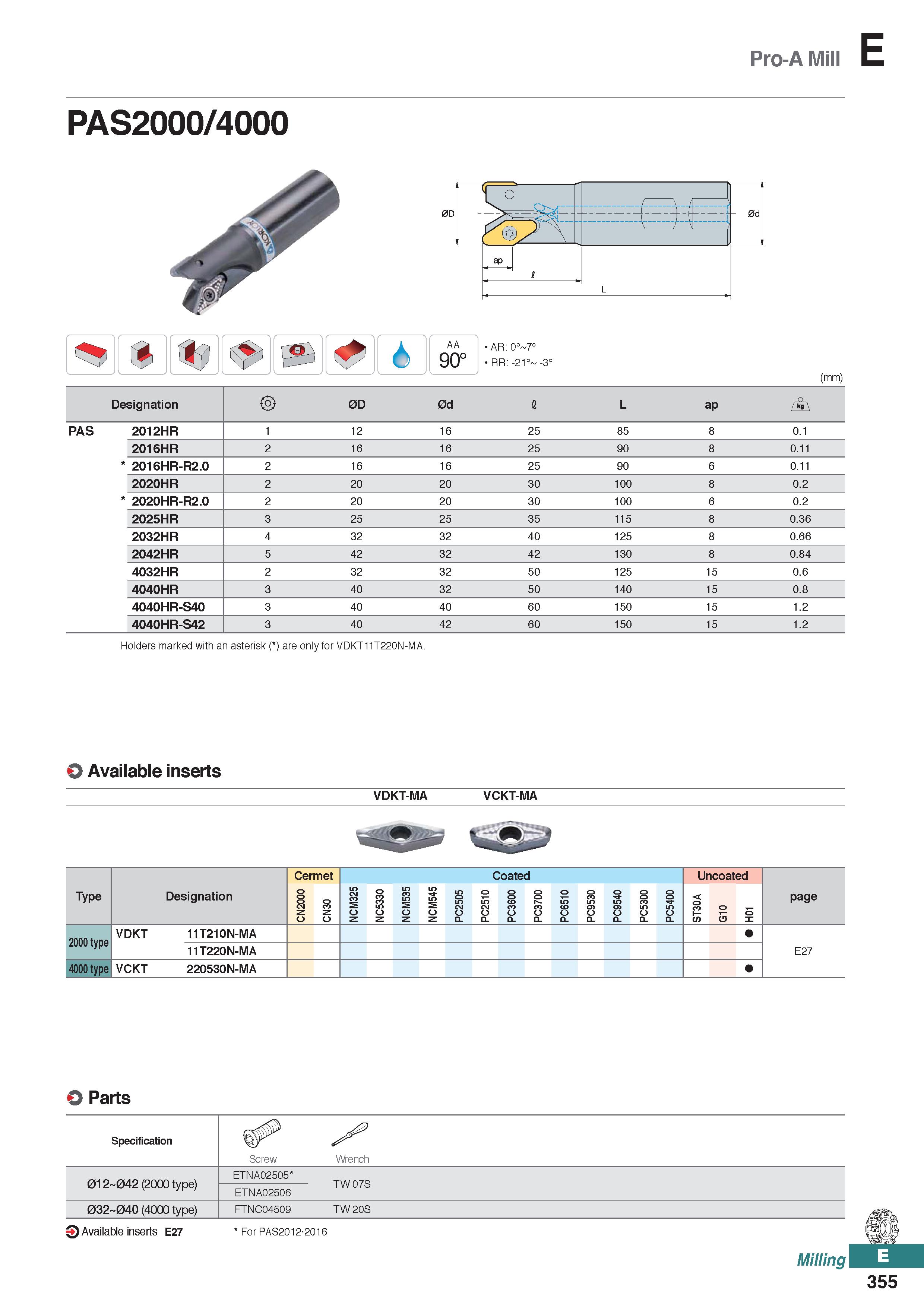

Pro-A Mill E PAS2000/4000 AA 90° AR: 0° 7° RR: -21° - (mm) Designation 0D 0d I L ap /ih PAS 2012HR 1 12 16 25 85 8 0.1 2016HR 2 16 16 25 90 8 0.11 2016HR-R2.0 2 16 16 25 90 6 0.11 2020HR 2 20 20 30 100 8 0.2 2020HR-R2.0 2 20 20 30 100 6 0.2 2025HR 3 25 25 35 115 8 0.36 2032HR 4 32 32 40 125 8 0.66 2042HR 5 42 32 42 130 8 0.84 4032HR 2 32 32 50 125 15 0.6 4040HR 3 40 32 50 140 15 0.8 4040HR-S40 3 40 40 60 150 15 1.2 4040HR-S42 3 40 42 60 150 15 1.2 Holders marked with an asterisk ( ) are only for VDKT11T220N-MA. O Available inserts VDKT-MA VCKT-MA Cermet Coated Uncoated Type Designation CN2000 CN30 NCM325 NC5330 NCM535 5 4 5 M C N PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A G10 H01 page 2000 type VDKT 11T210N-MA E27 11T220N-MA 4000 type VCKT 220530N-MA O Parts Specification Screw Wrench 012 042 (2000 type) ETNA02505 TW 07S ETNA02506 032 04O (4000 type) FTNC04509 TW 20S 9 Available inserts E27 For PAS2012-2016 Milling 355
