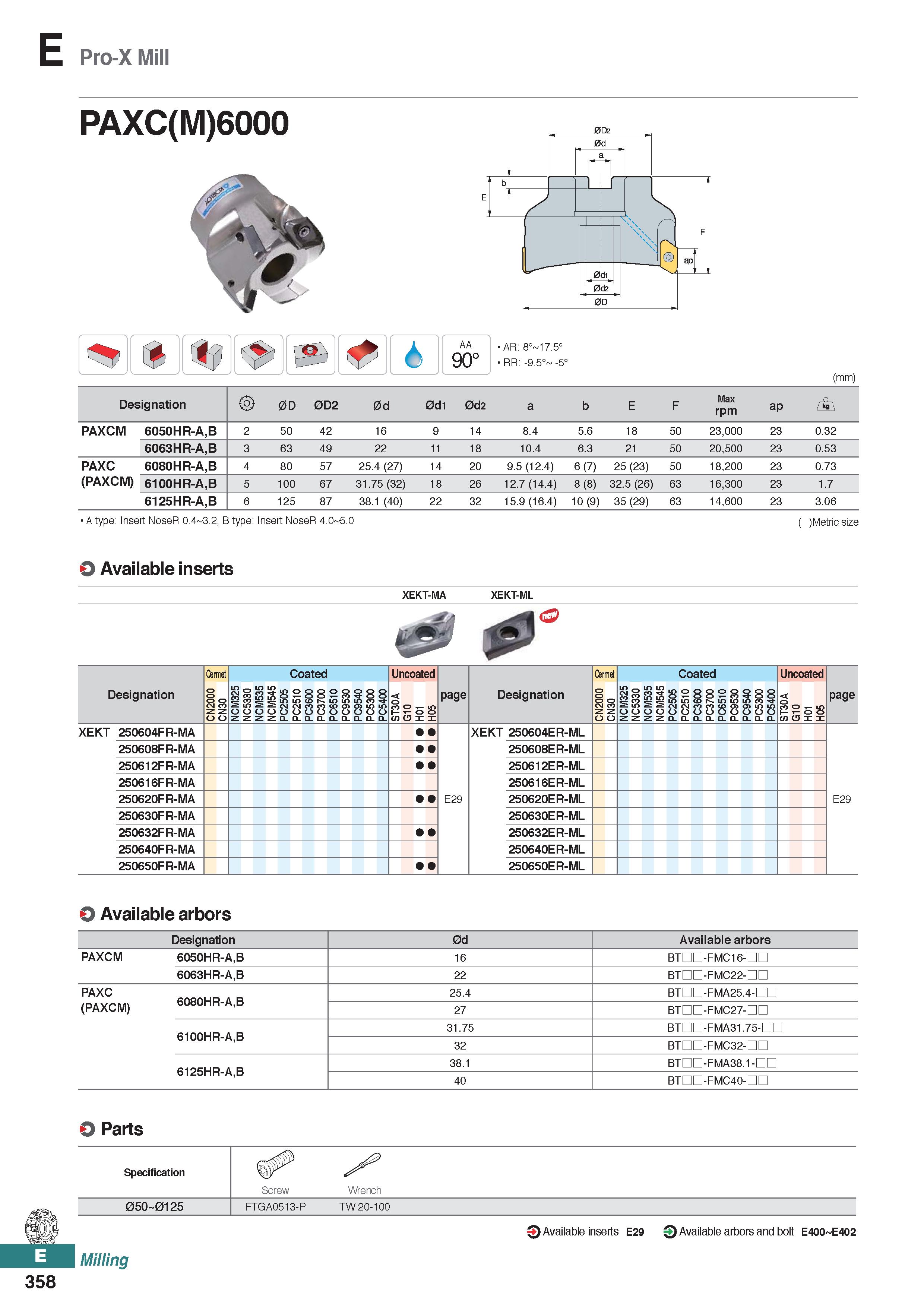

E Pro-X Mill PAXC(M)6000 AA 90° AR: 8° 17.5° RR: -9.5° -5° (mm) Designation 2> 0D 0D2 0d 0d1 0d2 a b E F Max rpm ap /ih PAXCM 6050HR-A,B 2 50 42 16 9 14 8.4 5.6 18 50 23,000 23 0.32 6063HR-A,B 3 63 49 22 11 18 10.4 6.3 21 50 20,500 23 0.53 PAXC 6080HR-A,B 4 80 57 25.4 (27) 14 20 9.5 (12.4) 6 (7) 25 (23) 50 18,200 23 0.73 (PAXCM) 6100HR-A,B 5 100 67 31.75 (32) 18 26 12.7 (14.4) 8 (8) 32.5 (26) 63 16,300 23 1.7 6125HR-A,B 6 125 87 38.1 (40) 22 32 15.9 (16.4) 10 (9) 35 (29) 63 14,600 23 3.06 A type: Insert NoseR 0.4 3.2, B type: Insert NoseR 4.0 5.0 ( )Metric size O Available inserts XEKT-MA XEKT-ML Cermet Coated Uncoated Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A G10 H01 H05 page Designation CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A G10 H01 H05 page XEKT 250604FR-MA XEKT 250604ER-ML 250608FR-MA 250608ER-ML 250612FR-MA 250612ER-ML 250616FR-MA 250616ER-ML 250620FR-MA E29 250620ER-ML E29 250630FR-MA 250630ER-ML 250632FR-MA 250632ER-ML 250640FR-MA 250640ER-ML 250650FR-MA 250650ER-ML O Available arbors Designation 0d Available arbors PAXCM 6050HR-A,B 16 BTHO-FMC16-CO 6063HR-A,B 22 BTHD-FMC22-HD PAXC 6080HR-A,B 25.4 BTHD-FMA25.4-HD (PAXCM) 27 BTHD-FMC27-HD 6100HR-A,B 31.75 BTHD-FMA31.75-HD 32 BTHD-FMC32-HD 6125HR-A,B 38.1 BTHD-FMA38.1-HD 40 BTHD-FMC40-HD 0 Parts Specification Screw S Wrench 05O 0125 FTGA0513-P TW 20-100 Milling Q Available inserts E29 Q Available arbors and bolt E400 E402 358
