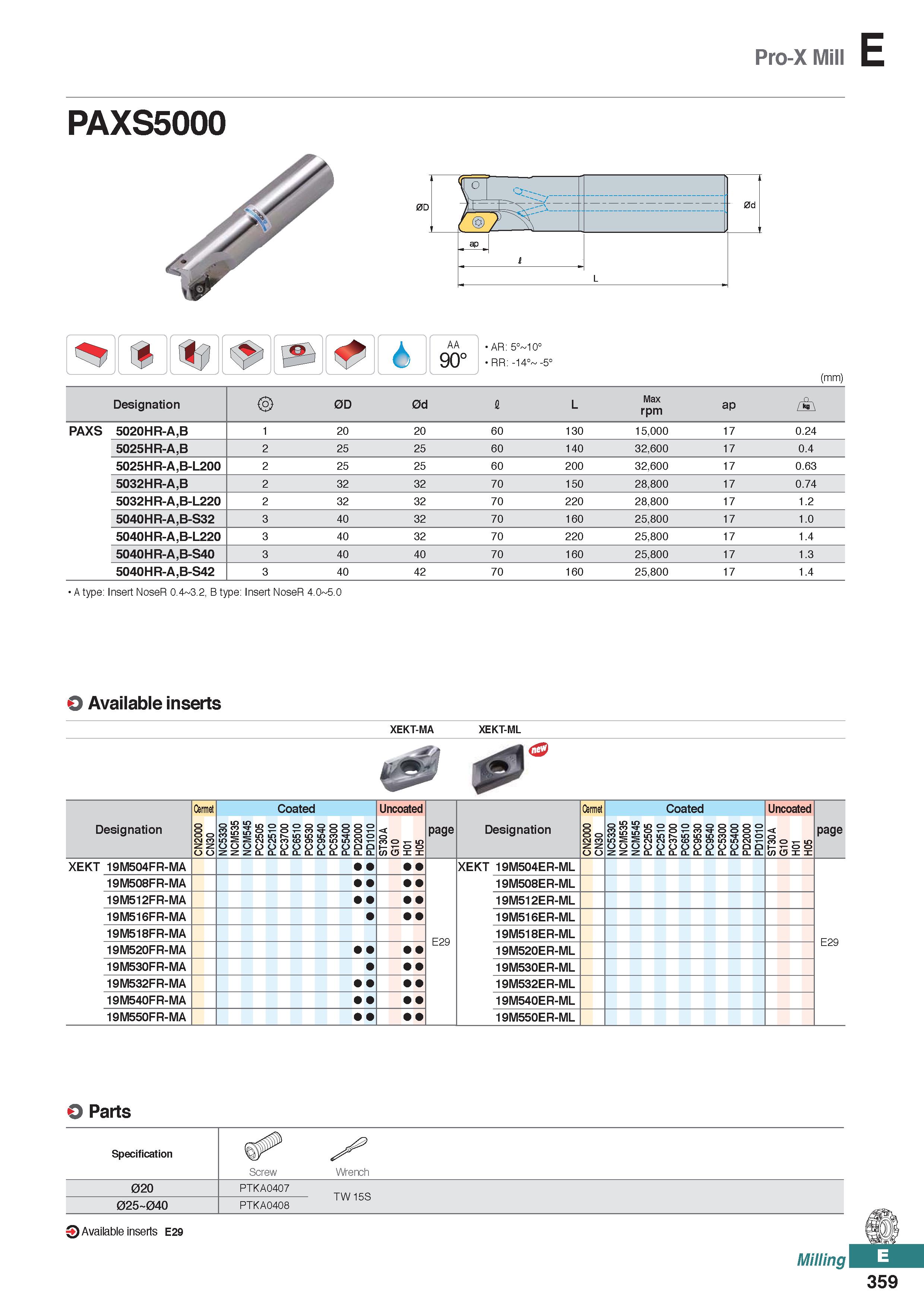

Pro-X Mill E PAXS5000 AA 90° AR: 5° 10° RR: -14° -5° (mm) Designation 0D 0d I L Max rpm ap r+\ PAXS 5020HR-A,B 1 20 20 60 130 15,000 17 0.24 5025HR-A,B 2 25 25 60 140 32,600 17 0.4 5025HR-A,B-L200 2 25 25 60 200 32,600 17 0.63 5032HR-A,B 2 32 32 70 150 28,800 17 0.74 5032HR-A,B-L220 2 32 32 70 220 28,800 17 1.2 5040HR-A,B-S32 3 40 32 70 160 25,800 17 1.0 5040HR-A,B-L220 3 40 32 70 220 25,800 17 1.4 5040HR-A,B-S40 3 40 40 70 160 25,800 17 1.3 5040HR-A,B-S42 3 40 42 70 160 25,800 17 1.4 A type: Insert NoseR 0.4 3.2, B type: Insert NoseR 4.0 5.0 O Available inserts XEKT-MA XEKT-ML Cermet Coated Uncoated Cermet Coated Uncoated Designation CN2000 CN30 NC5330 NCM535 NCM545 PC2505 PC2510 PC3700 PC6510 PC9530 PC9540 0 O CO ID C P PC5400 PD2000 PD1010 ST30A G10 H01 H05 page Designation CN2000 CN30 NC5330 NCM535 5 34 55 M C N PC2505 PC2510 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 PD2000 PD1010 ST30A G10 H01 H05 page XEKT 19M504FR-MA XEKT 19M504ER-ML 19M508FR-MA 19M508ER-ML 19M512FR-MA 19M512ER-ML 19M516FR-MA 19M516ER-ML 19M518FR-MA E29 19M518ER-ML E29 19M520FR-MA 19M520ER-ML 19M530FR-MA 19M530ER-ML 19M532FR-MA 19M532ER-ML 19M540FR-MA 19M540ER-ML 19M550FR-MA 19M550ER-ML O Parts Milling 359
