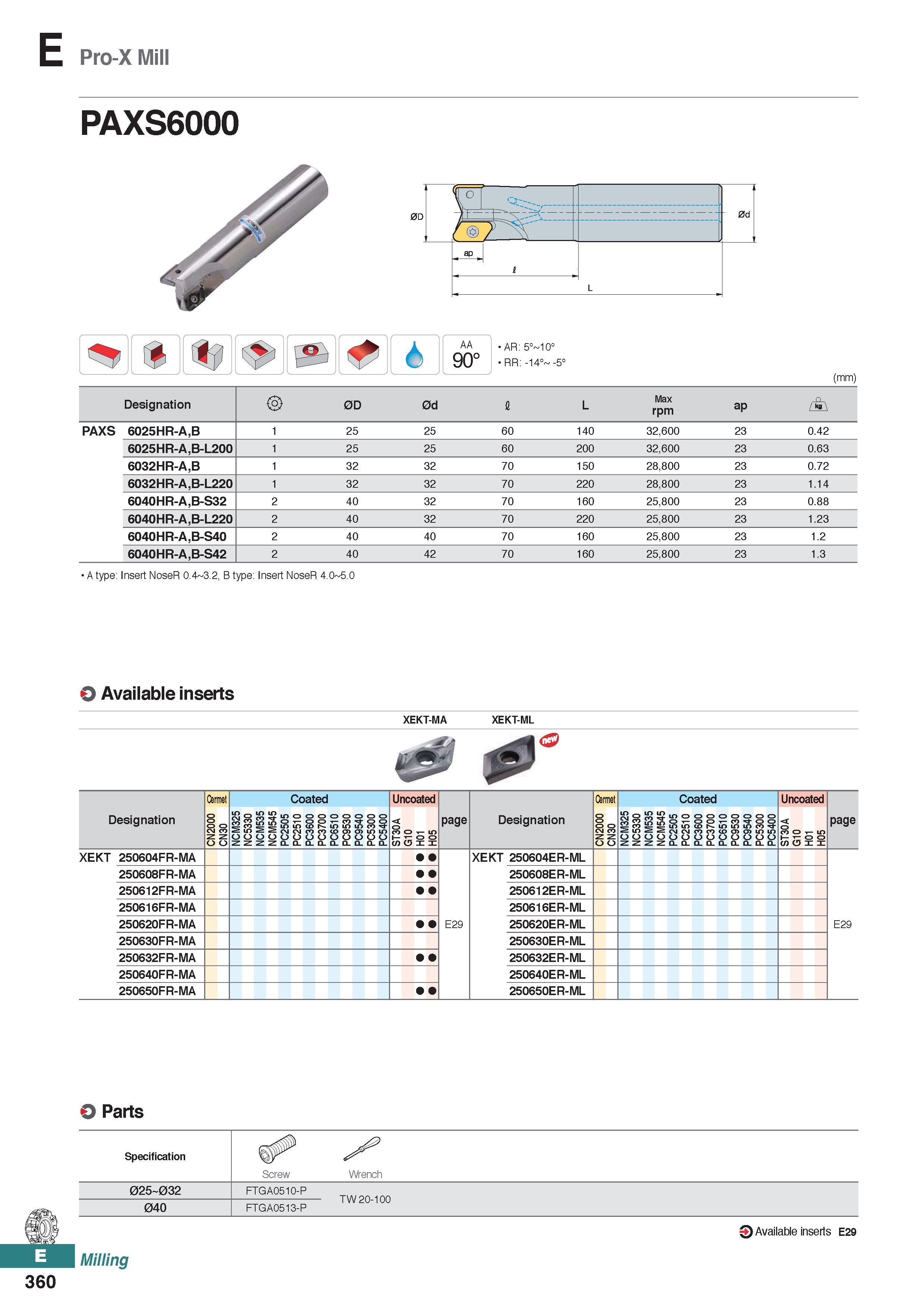

E Pro-X Mill PAXS6000 AA 90° AR: 5° 10° RR: -14° -5° (mm) Designation 2> 0D 0d I L Max rpm ap /ih PAXS 6025HR-A,B 1 25 25 60 140 32,600 23 0.42 6025HR-A,B-L200 1 25 25 60 200 32,600 23 0.63 6032HR-A,B 1 32 32 70 150 28,800 23 0.72 6032HR-A,B-L220 1 32 32 70 220 28,800 23 1.14 6040HR-A,B-S32 2 40 32 70 160 25,800 23 0.88 6040HR-A,B-L220 2 40 32 70 220 25,800 23 1.23 6040HR-A,B-S40 2 40 40 70 160 25,800 23 1.2 6040HR-A,B-S42 2 40 42 70 160 25,800 23 1.3 A type: Insert NoseR 0.4 3.2, B type: Insert NoseR 4.0 5.0 O Available inserts XEKT-MA XEKT-ML Cermet Coated Uncoated Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 o 301 T10 won page Designation CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 o 301 T10 won page XEKT 250604FR-MA XEKT 250604ER-ML 250608FR-MA 250608ER-ML 250612FR-MA 250612ER-ML 250616FR-MA 250616ER-ML 250620FR-MA E29 250620ER-ML E29 250630FR-MA 250630ER-ML 250632FR-MA 250632ER-ML 250640FR-MA 250640ER-ML 250650FR-MA 250650ER-ML O Parts Specification Screw Wrench 025 032 FTGA0510-P TW 20-100 04O FTGA0513-P Q Available inserts E29 Milling 360
