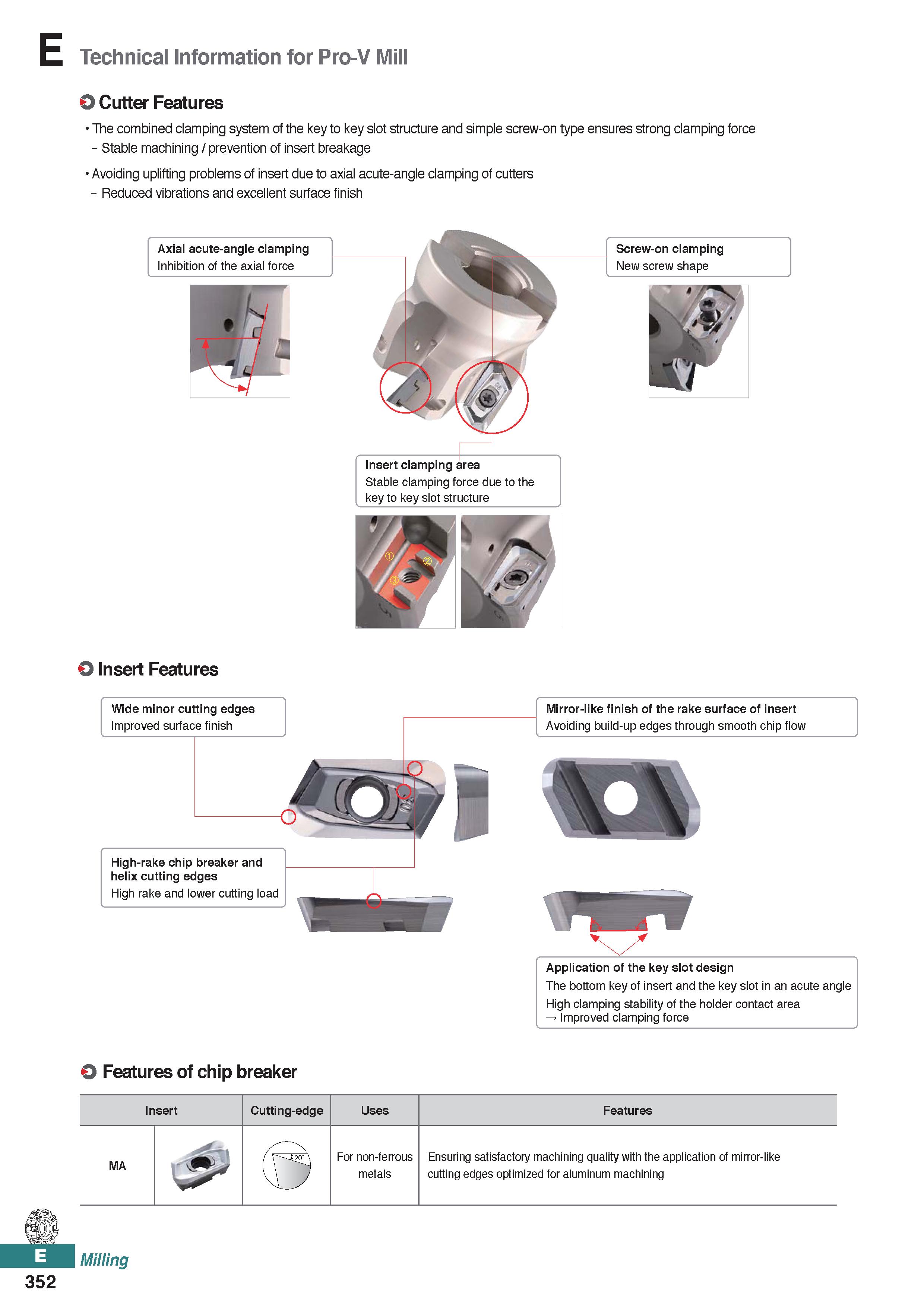

Technical Information for Pro-V Mill O Cutter Features The combined clamping system of the key to key slot structure and simple screw-on type ensures strong clamping force - Stable machining / prevention of insert breakage Avoiding uplifting problems of insert due to axial acute-angle clamping of cutters - Reduced vibrations and excellent surface finish Insert clamping area Stable clamping force due to the key to key slot structure O Insert Features Wide minor cutting edges Improved surface finish Mirror-like finish of the rake surface of insert Avoiding build-up edges through smooth chip flow High-rake chip breaker and helix cutting edges High rake and lower cutting load Application of the key slot design The bottom key of insert and the key slot in an acute angle High clamping stability of the holder contact area Improved clamping force O Features of chip breaker Insert Cutting-edge Uses Features MA & / N For non-ferrous metals Ensuring satisfactory machining quality with the application of mirror-like cutting edges optimized for aluminum machining Milling 352
