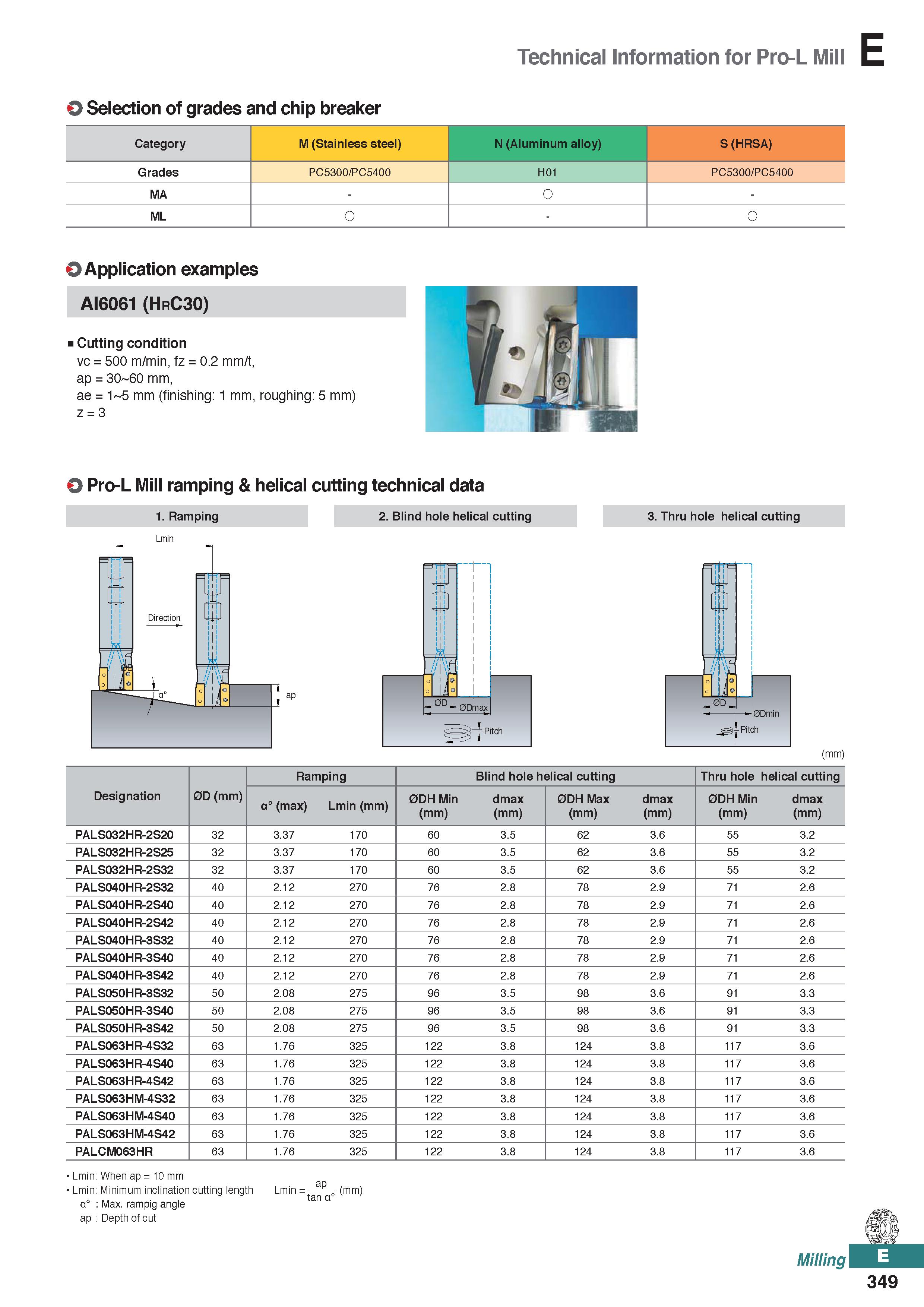

Technical Information for Pro-L Mill O Selection of grades and chip breaker Category M (Stainless steel) N (Aluminum alloy) S (HRSA) Grades PC5300/PC5400 H01 PC5300/PC5400 MA - 0 - ML 0 - 0 O Application examples AI6061 (HrC30) Cutting condition vc = 500 m/min, fz = 0.2 mm/t, ap = 30 60 mm, ae = 1 5 mm (finishing: 1 mm, roughing: 5 mm) z = 3 O Pro-L Mill ramping & helical cutting technical data 1. Ramping 2. Blind hole helical cutting 3. Thru hole helical cutting ap (mm) Designation 0D (mm) Ramping Blind hole helical cutting Thru hole helical cutting a° (max) Lmin (mm) 0DH Min (mm) x) H 0DH Max (mm) x) H 0DH Min (mm) dmax (mm) PALS032HR-2S20 32 3.37 170 60 3.5 62 3.6 55 3.2 PALS032HR-2S25 32 3.37 170 60 3.5 62 3.6 55 3.2 PALS032HR-2S32 32 3.37 170 60 3.5 62 3.6 55 3.2 PALS040HR-2S32 40 2.12 270 76 2.8 78 2.9 71 2.6 PALS040HR-2S40 40 2.12 270 76 2.8 78 2.9 71 2.6 PALS040HR-2S42 40 2.12 270 76 2.8 78 2.9 71 2.6 PALS040HR-3S32 40 2.12 270 76 2.8 78 2.9 71 2.6 PALS040HR-3S40 40 2.12 270 76 2.8 78 2.9 71 2.6 PALS040HR-3S42 40 2.12 270 76 2.8 78 2.9 71 2.6 PALS050HR-3S32 50 2.08 275 96 3.5 98 3.6 91 3.3 PALS050HR-3S40 50 2.08 275 96 3.5 98 3.6 91 3.3 PALS050HR-3S42 50 2.08 275 96 3.5 98 3.6 91 3.3 PALS063HR-4S32 63 1.76 325 122 3.8 124 3.8 117 3.6 PALS063HR-4S40 63 1.76 325 122 3.8 124 3.8 117 3.6 PALS063HR-4S42 63 1.76 325 122 3.8 124 3.8 117 3.6 PALS063HM-4S32 63 1.76 325 122 3.8 124 3.8 117 3.6 PALS063HM-4S40 63 1.76 325 122 3.8 124 3.8 117 3.6 PALS063HM-4S42 63 1.76 325 122 3.8 124 3.8 117 3.6 PALCM063HR 63 1.76 325 122 3.8 124 3.8 117 3.6 Lmin: When ap = 10 mm Lmin: Minimum inclination cutting length a° : Max. rampig angle ap : Depth of cut Lmin = a p „ (mm) tan a° Milling 349
