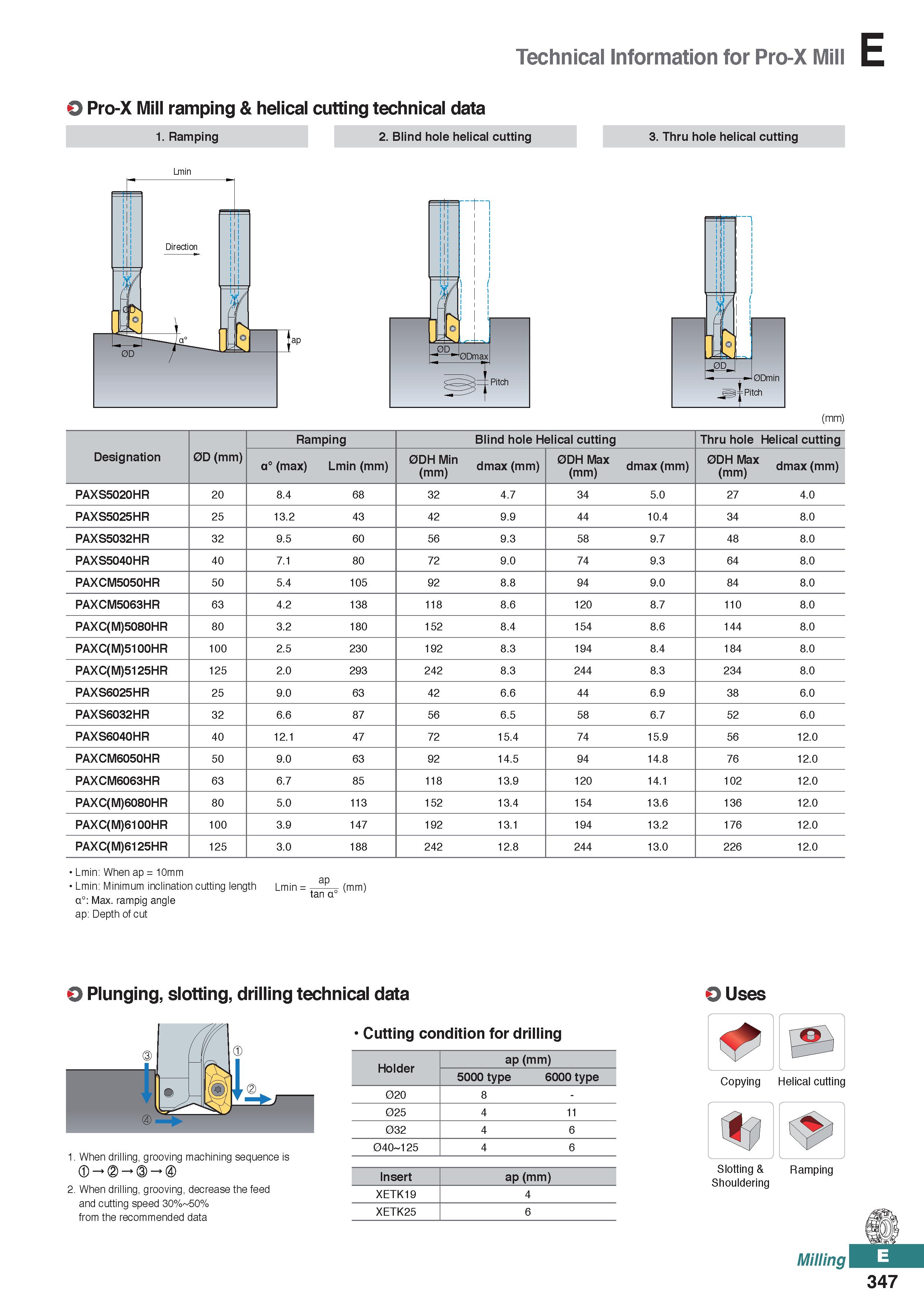

Technical Information for Pro-X Mill O Pro-X Mill ramping & helical cutting technical data 1. Ramping 2. Blind hole helical cutting 3. Thru hole helical cutting Lmin (mm) Designation 0D (mm) Ramping Blind hole Helical cutting Thru hole Helical cutting a0 (max) Lmin (mm) 0DH Min (mm) dmax (mm) 0DH Max (mm) dmax (mm) 0DH Max (mm) dmax (mm) PAXS5020HR 20 8.4 68 32 4.7 34 5.0 27 4.0 PAXS5025HR 25 13.2 43 42 9.9 44 10.4 34 8.0 PAXS5032HR 32 9.5 60 56 9.3 58 9.7 48 8.0 PAXS5040HR 40 7.1 80 72 9.0 74 9.3 64 8.0 PAXCM5050HR 50 5.4 105 92 8.8 94 9.0 84 8.0 PAXCM5063HR 63 4.2 138 118 8.6 120 8.7 110 8.0 PAXC(M)5080HR 80 3.2 180 152 8.4 154 8.6 144 8.0 PAXC(M)5100HR 100 2.5 230 192 8.3 194 8.4 184 8.0 PAXC(M)5125HR 125 2.0 293 242 8.3 244 8.3 234 8.0 PAXS6025HR 25 9.0 63 42 6.6 44 6.9 38 6.0 PAXS6032HR 32 6.6 87 56 6.5 58 6.7 52 6.0 PAXS6040HR 40 12.1 47 72 15.4 74 15.9 56 12.0 PAXCM6050HR 50 9.0 63 92 14.5 94 14.8 76 12.0 PAXCM6063HR 63 6.7 85 118 13.9 120 14.1 102 12.0 PAXC(M)6080HR 80 5.0 113 152 13.4 154 13.6 136 12.0 PAXC(M)6100HR 100 3.9 147 192 13.1 194 13.2 176 12.0 PAXC(M)6125HR 125 3.0 188 242 12.8 244 13.0 226 12.0 Lmin: When ap = 10mm Lmin: Minimum inclination cutting length Lmin = ap (mm) o > -i tana a”: Max. rampig angle ap: Depth of cut O Plunging, slotting, drilling technical data Cutting condition for drilling 2. When drilling, grooving, decrease the feed and cutting speed 30% 50% from the recommended data Holder ap (mm) 5000 type 6000 type 020 8 - 025 4 11 032 4 6 040 125 4 6 Insert ap (mm) XETK19 4 XETK25 6 O Uses 0 Copying Helical cutting 'I 'f1 Slotting & Shouldering Ramping Milling 347
