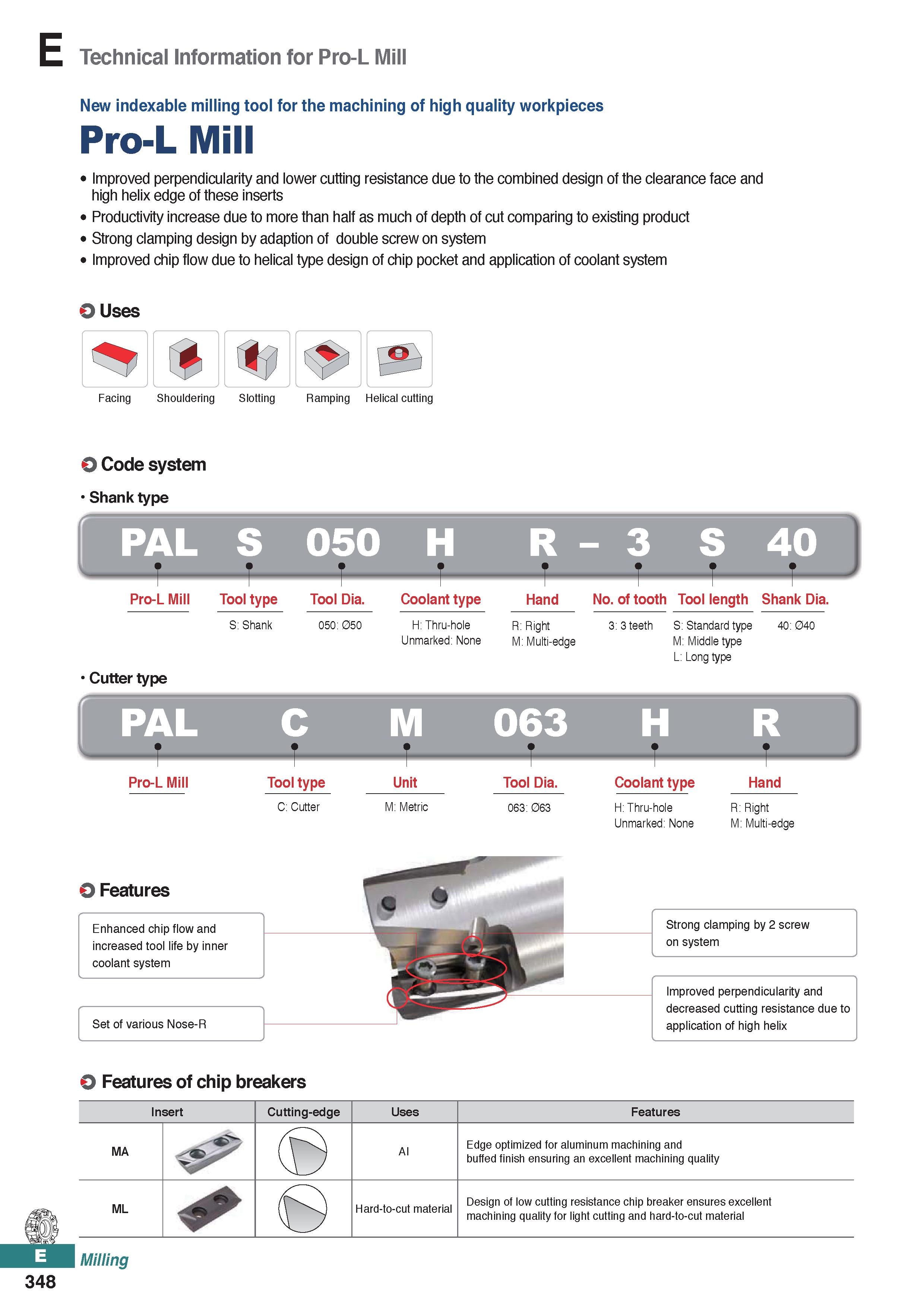

Technical Information for Pro-L Mill New indexable milling tool for the machining of high quality workpieces Pro-L Mill Improved perpendicularity and lower cutting resistance due to the combined design of the clearance face and high helix edge of these inserts Productivity increase due to more than half as much of depth of cut comparing to existing product Strong clamping design by adaption of double screw on system Improved chip flow due to helical type design of chip pocket and application of coolant system O Uses Facing Shouldering Slotting Ramping Helical cutting 0 Code system Shank type \ PAL S 050 H - 3 S + + Pro-L Mill Cutter type Tool type Tool Dia. Coolant type Hand No. of tooth Tool length Shank Dia. S: Shank 050: 050 PAL Pro-L Mill H: Thru-hole Unmarked: None R: Right M: Multi-edge 3: 3 teeth S: Standard type M: Middle type L: Long type 40: 040 063 Tool type C: Cutter Unit M: Metric Tool Dia. 063: 063 Coolant type Hand H: Thru-hole R: Right Unmarked: None M: Multi- O Features Enhanced chip flow and increased tool life by inner coolant system Set of various Nose-R H O Features of chip breakers Insert Cutting-edge Uses Features MA AI Edge optimized for aluminum machining and buffed finish ensuring an excellent machining quality ML Hard-to-cut material Design of low cutting resistance chip breaker ensures excellent machining quality for light cutting and hard-to-cut material 348 Milling
