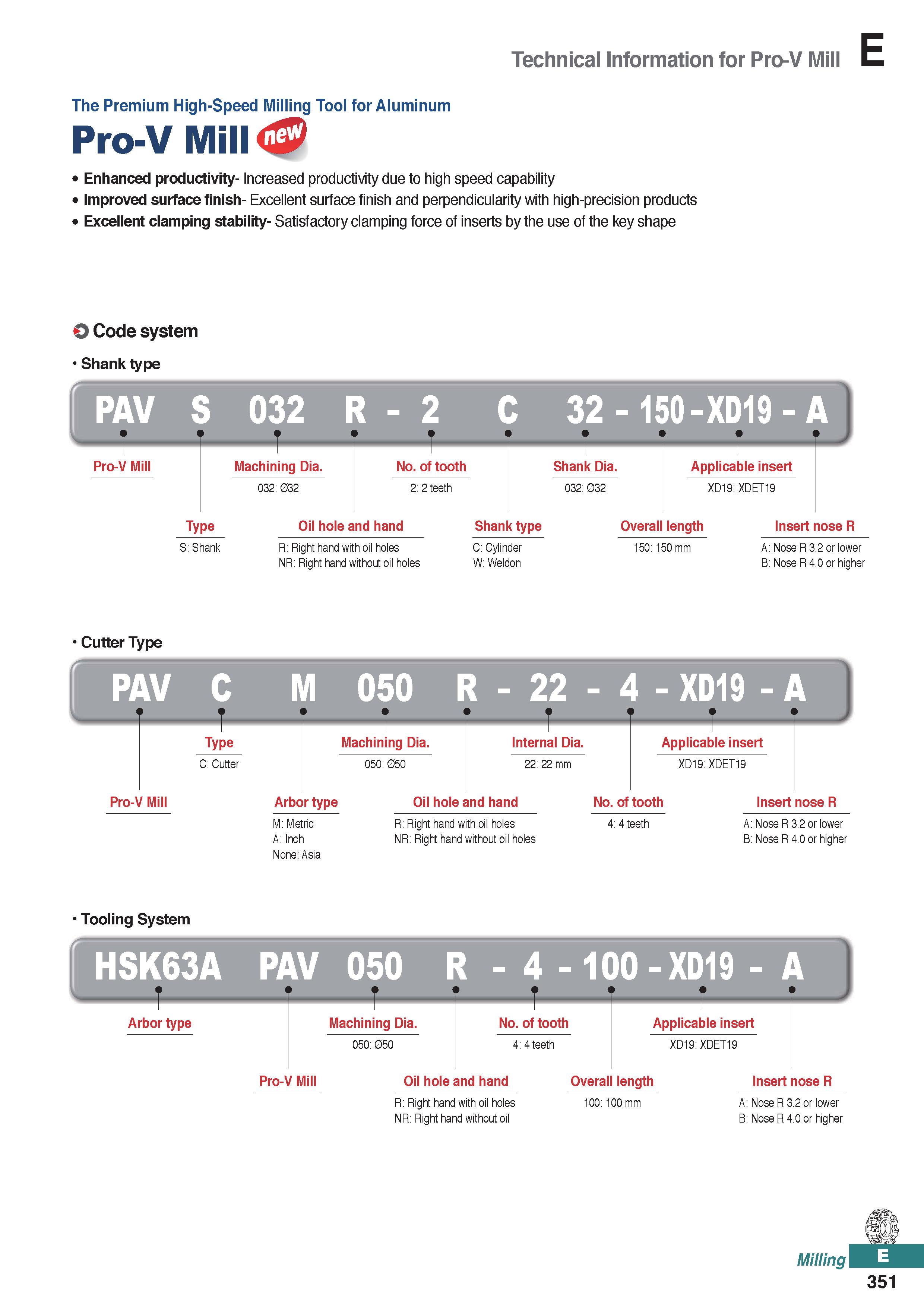

Technical Information for Pro-V Mill The Premium High-Speed Milling Tool for Aluminum Pro-V Mill W Enhanced productivity- Increased productivity due to high speed capability Improved surface finish- Excellent surface finish and perpendicularity with high-precision products Excellent clamping stability- Satisfactory clamping force of inserts by the use of the key shape O Code system Shank type PAV j L S 032 1 R - 2 C 32 - 150-XD19-A Pro-V Mill Machining Dia. No. of tooth Shank Dia. Applicable insert 032: 032 2: 2 teeth 032: 032 XD19: XDET19 Type S: Shank Oil hole and hand R: Right hand with oil holes NR: Right hand without oil holes Shank type C: Cylinder W: Weldon Overall length 150: 150 mm Insert nose R A: Nose R 3.2 or lower B: Nose R 4.0 or higher Cutter Type PAV C M 050 R - 22 - 4 - XD19 - A Pro-V Mill 1 Type Machining Dia. Internal Dia. 1 Applicable insert C: Cutter 050: 050 22: 22 mm XD19: XDET19 Arbor type M: Metric A: Inch None: Asia Oil hole and hand R: Right hand with oil holes NR: Right hand without oil holes No. of tooth 4: 4 teeth Insert nose R A: Nose R 3.2 or lower B: Nose R 4.0 or higher Tooling System HSK63A PAV 050 1 I - 4 -100-XD19 - A Arbor type Machining Dia. No. of tooth Applicable insert 050: 050 4: 4 teeth XD19: XDET19 Pro-V Mill Oil hole and hand R: Right hand with oil holes NR: Right hand without oil Overall length 100: 100 mm Insert nose R A: Nose R 3.2 or lower B: Nose R 4.0 or higher 351
