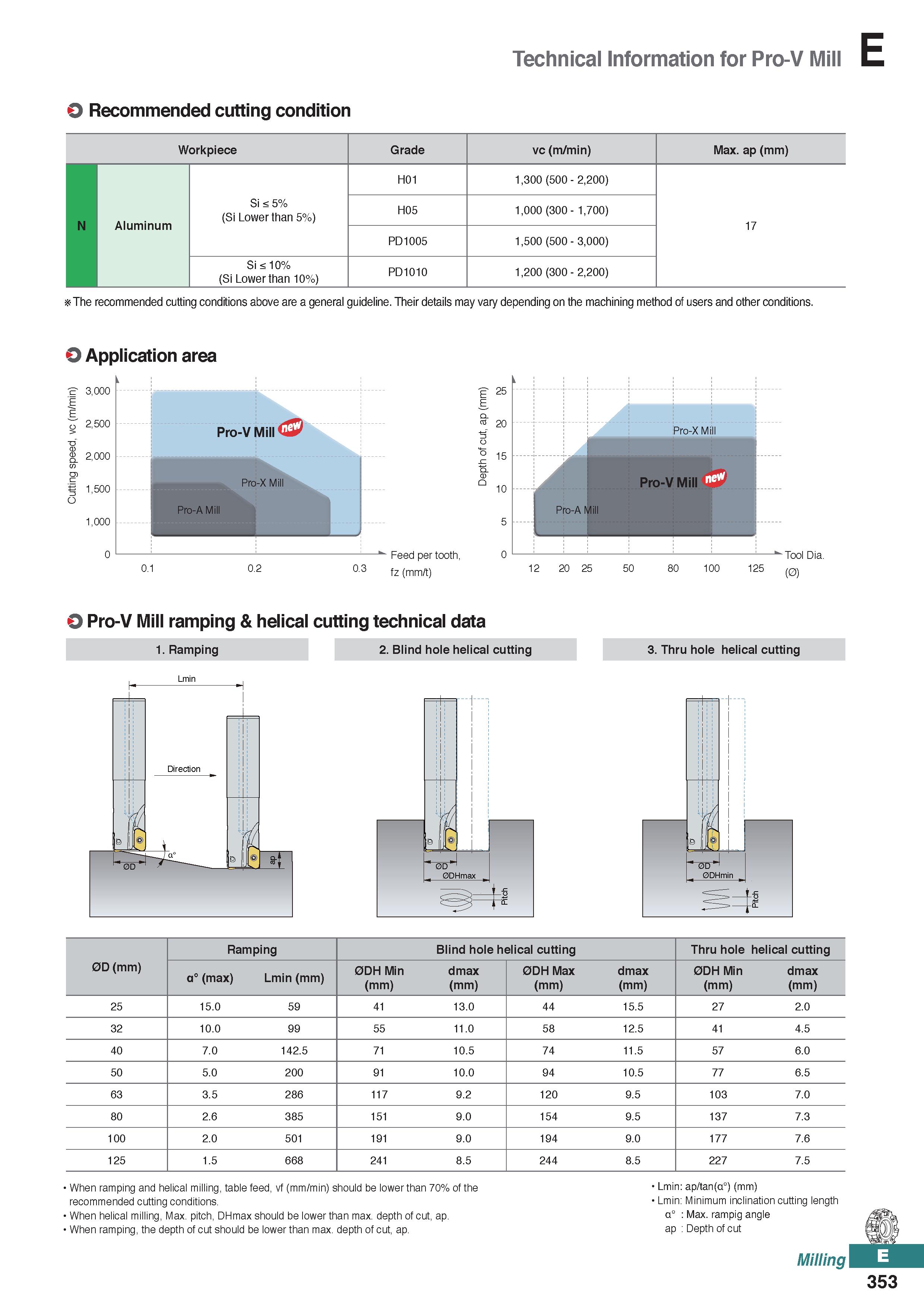

Technical Information for Pro-V Mill O Recommended cutting condition Workpiece Grade vc (m/min) Max. ap (mm) H01 1,300 (500 - 2,200) N Aluminum Si 5% (Si Lower than 5%) H05 1,000 (300 - 1,700) 17 PD1005 1,500 (500 - 3,000) Si 10% (Si Lower than 10%) PD1010 1,200 (300 - 2,200) The recommended cutting conditions above are a general guideline. Their details may vary depending on the machining method of users and other conditions. O Application area in) 3,000 E E Z 2,500 pe 2,000 sp ng 1,500 1,000 0 o 0.1 Pro-V Mill Pro-X Mill Pro-A Mill 0.2 0.3 a Feed per tooth, fz (mm/t) O Pro-V Mill ramping & helical cutting technical data 1. Ramping 2. Blind hole helical cutting 3. Thru hole helical cutting Lmin Ramping Blind hole helical cutting Thru hole helical cutting 0D (mm) a0 (max) Lmin (mm) 0DH Min (mm) dmax (mm) 0DH Max (mm) dmax (mm) 0DH Min (mm) dmax (mm) 25 15.0 59 41 13.0 44 15.5 27 2.0 32 10.0 99 55 11.0 58 12.5 41 4.5 40 7.0 142.5 71 10.5 74 11.5 57 6.0 50 5.0 200 91 10.0 94 10.5 77 6.5 63 3.5 286 117 9.2 120 9.5 103 7.0 80 2.6 385 151 9.0 154 9.5 137 7.3 100 2.0 501 191 9.0 194 9.0 177 7.6 125 1.5 668 241 8.5 244 8.5 227 7.5 When ramping and helical milling, table feed, vf (mm/min) should be lower than 70% of the recommended cutting conditions. When helical milling, Max. pitch, DHmax should be lower than max. depth of cut, ap. When ramping, the depth of cut should be lower than max. depth of cut, ap. Lmin: ap/tan(a°) (mm) Lmin: Minimum inclination cutting length a° : Max. rampig angle ap : Depth of cut Milling 353
