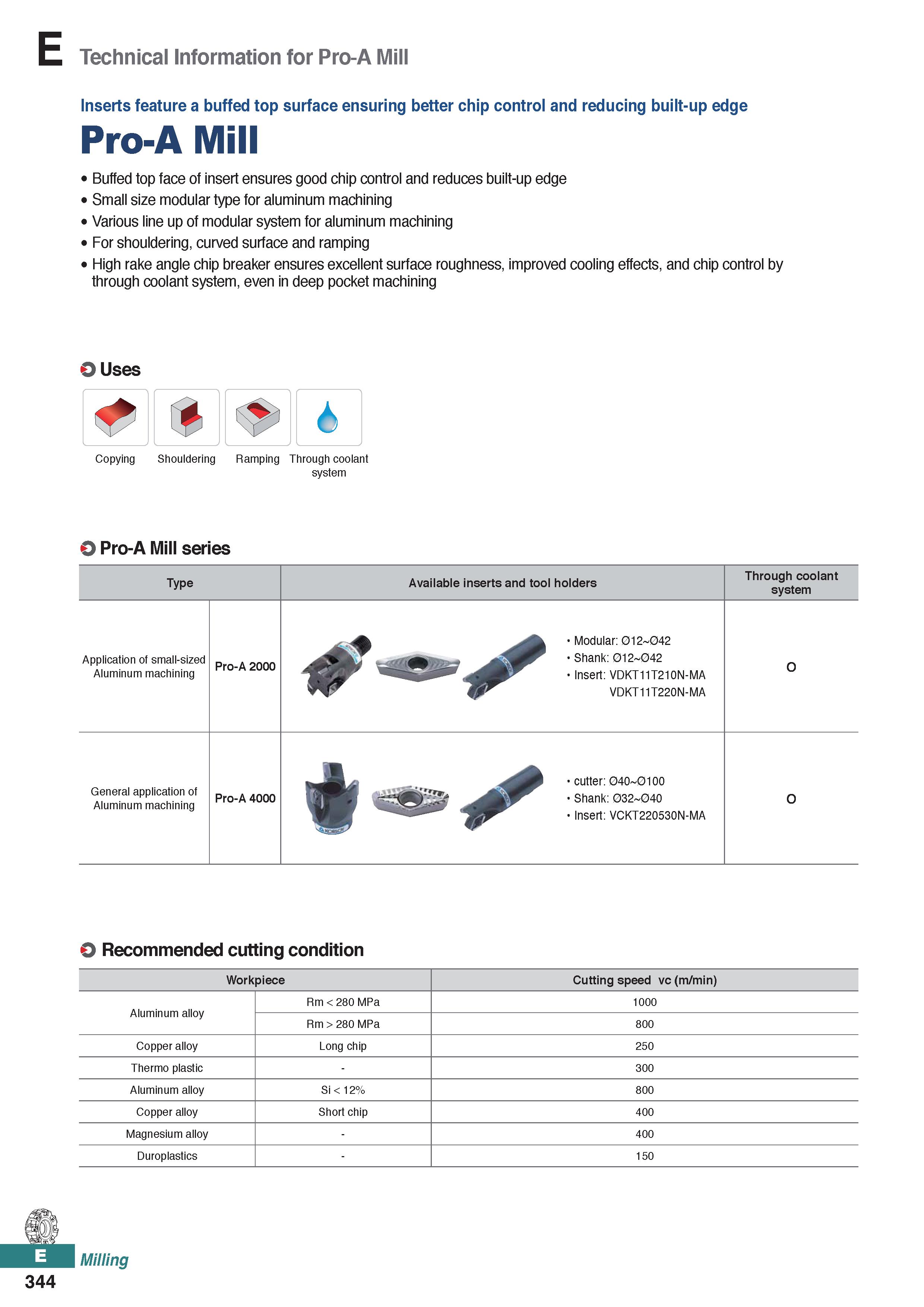

Technical Information for Pro-A Mill Inserts feature a buffed top surface ensuring better chip control and reducing built-up edge Pro-A Mill Buffed top face of insert ensures good chip control and reduces built-up edge Small size modular type for aluminum machining Various line up of modular system for aluminum machining For shouldering, curved surface and ramping High rake angle chip breaker ensures excellent surface roughness, improved cooling effects, and chip control by through coolant system, even in deep pocket machining O Uses Copying Shouldering Ramping Through coolant system O Pro-A Mill series Type Available inserts and tool holders Through coolant system Application of small-sized Aluminum machining Pro-A 2000 41; Modular: 012 042 . > ‘ m S'1 Shank .012-042 Insert: VDKT11T210N-MA "j VDKT11T220N-MA O General application of Aluminum machining Pro-A 4000 cuttei 040-0100 "y . -a / > Shank 002-040 WW. Insert: VCKT220530N-MA Recommended cutting condition Workpiece Cutting speed vc (m/min) Aluminum alloy Rm 280 MPa 1000 Rm > 280 MPa 800 Copper alloy Long chip 250 Thermo plastic - 300 Aluminum alloy Si 12% 800 Copper alloy Short chip 400 Magnesium alloy - 400 Duroplastics - 150 344
