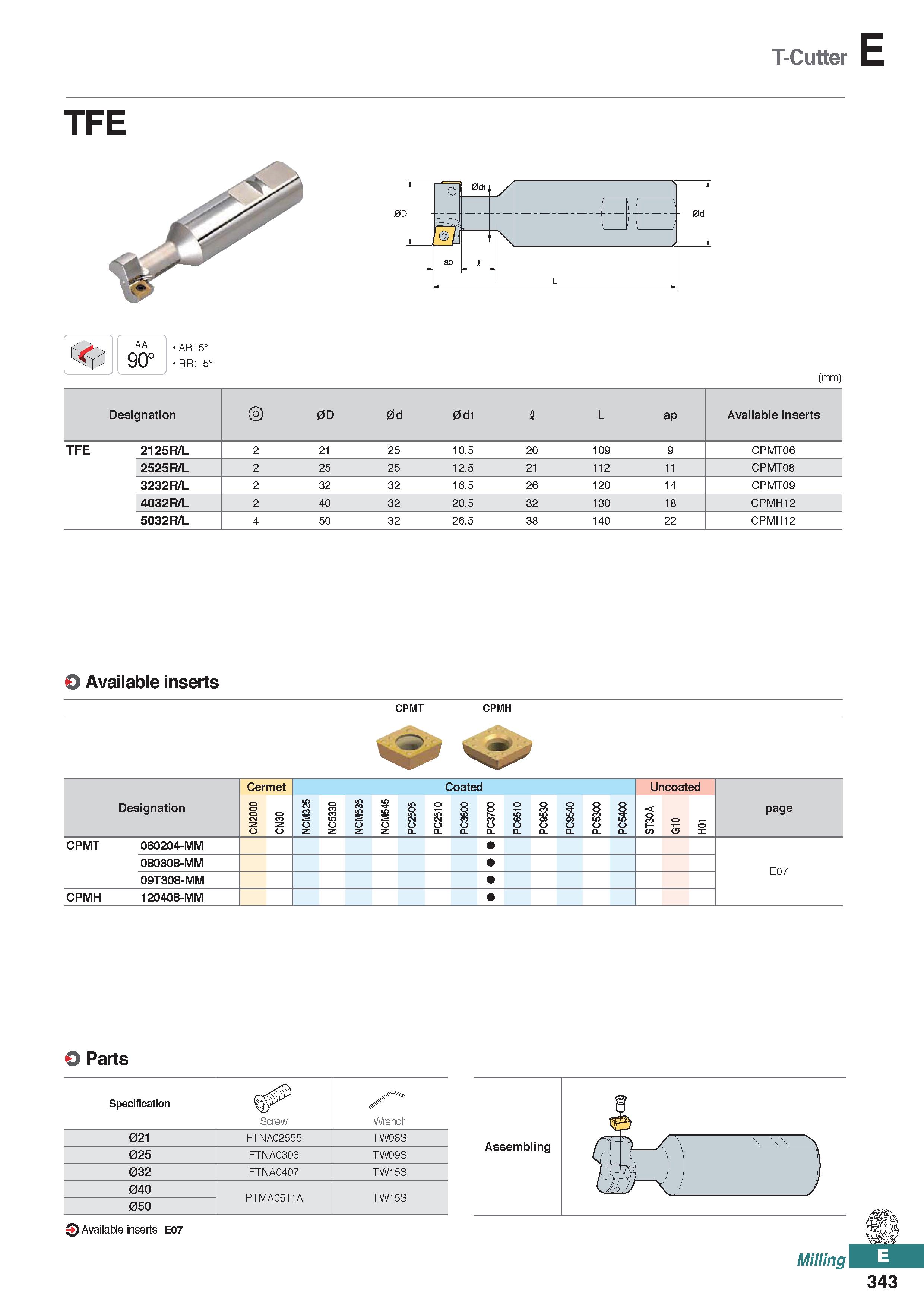

T-Cutter E TFE AA 90° AR: 5° RR: -5° (mm) Designation 0D 0d 0d1 I L ap Available inserts TFE 2125R/L 2 21 25 10.5 20 109 9 CPMT06 2525R/L 2 25 25 12.5 21 112 11 CPMT08 3232R/L 2 32 32 16.5 26 120 14 CPMT09 4032R/L 2 40 32 20.5 32 130 18 CPMH12 5032R/L 4 50 32 26.5 38 140 22 CPMH12 O Available inserts CPMT CPMH Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A G10 H01 page CPMT 060204-MM E07 080308-MM 09T308-MM CPMH 120408-MM O Parts Specification Screw Wrench 021 FTNA02555 TW08S 025 FTNA0306 TW09S 032 FTNA0407 TW15S 04O PTMA0511A TW15S 05O 9 Available inserts E07 Milling 343
