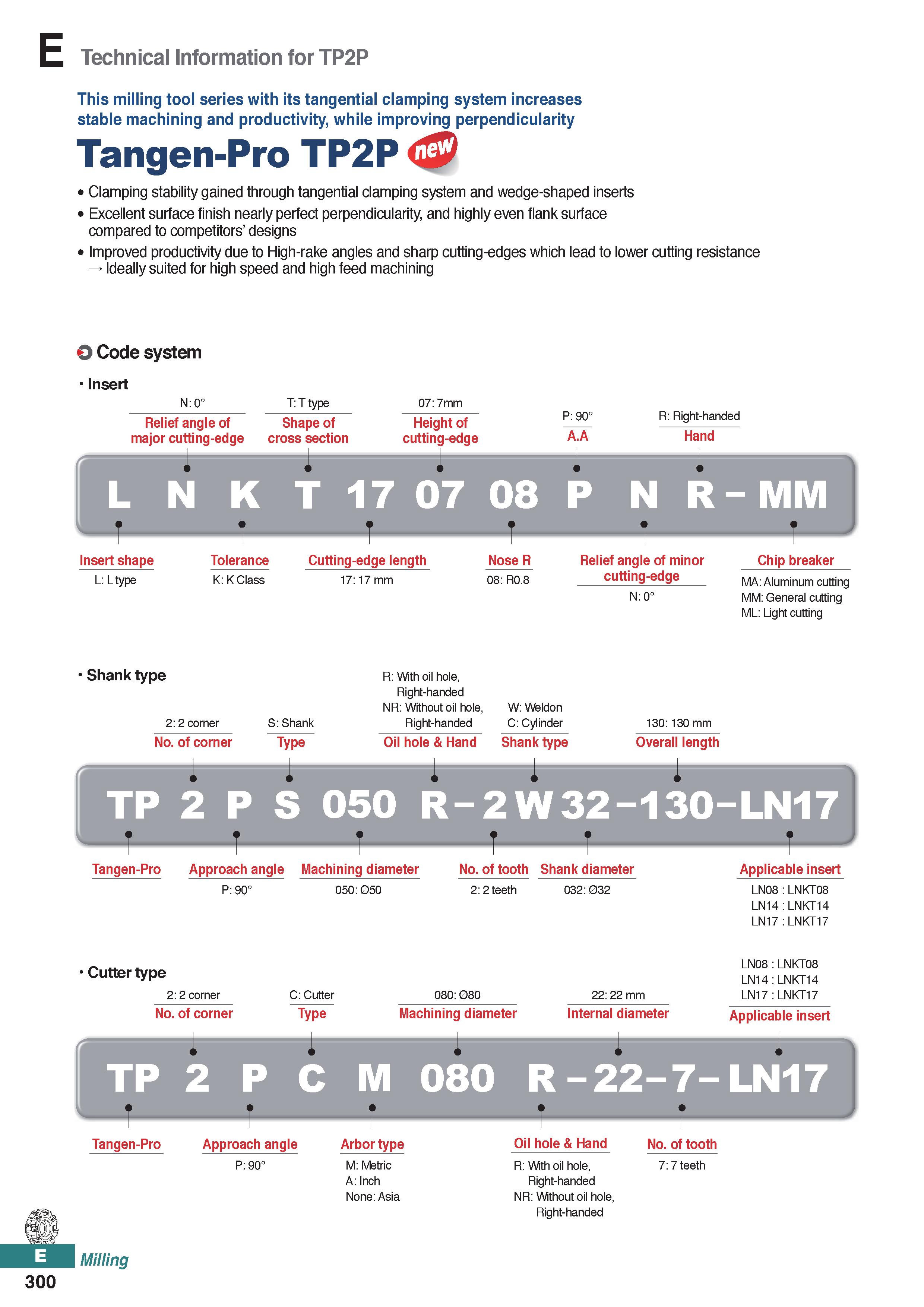

Technical Information for TP2P This milling tool series with its tangential clamping system increases stable machining and productivity, while improving perpendicularity Tangen-Pro TP2P Clamping stability gained through tangential clamping system and wedge-shaped inserts Excellent surface finish nearly perfect perpendicularity, and highly even flank surface compared to competitors’ designs Improved productivity due to High-rake angles and sharp cutting-edges which lead to lower cutting resistance Ideally suited for high speed and high feed machining O Code system Insert N:0° Relief angle of major cutting-edge T: T type Shape of cross section 07: 7mm Height of cutting-edge P:90° A.A R: Right-handed Hand L N K T 17 07 8 P NR- MM Insert shape Tolerance Cutting-edge length Nose R Relief angle of minor Chip breaker L: L type K: K Class 17: 17 mm 08: R0.8 cuttmg-edge ma: Aluminum cutting N:0° MM: General cutting ML: Light cutting Shank type 2: 2 corner No. of corner S: Shank Type R: With oil hole, Right-handed NR: Without oil hole, Right-handed W: Weldon C: Cylinder Oil hole & Hand Shank type 130: 130 mm Overall length TP 2 P S 050 R-2 W 32-130-1 -7 .N17 Tangen-Pro Approach angle Machining diameter No. of tooth Shank diameter P:90° 050: 050 2: 2 teeth 032: 032 Applicable insert LN08 : LNKT08 LN14 : LNKT14 LN17 : LNKT17 Cutter type 2: 2 corner No. of corner C: Cutter Type 080: 080 22: 22 mm Machining diameter Internal diameter LN08 : LNKT08 LN14 : LNKT14 LN17 : LNKT17 Applicable insert TP 2 P C M Tangen-Pro Milling 300 Approach angle P:90° Arbor type M: Metric A: Inch None: Asia R-22-7-LN17 Oil hole & Hand R: With oil hole, Right-handed NR: Without oil hole, Right-handed No. of tooth 7: 7 teeth
