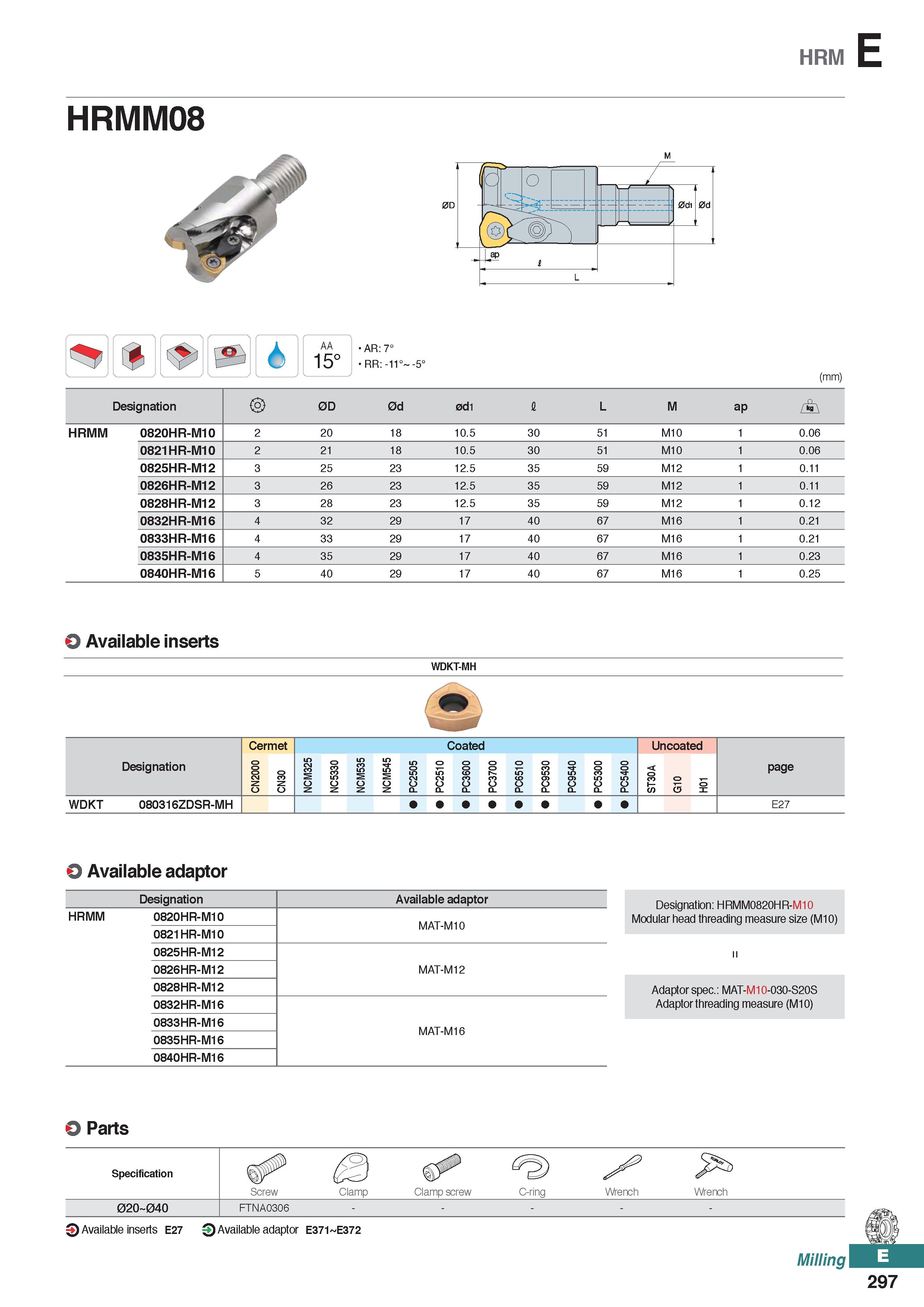

HRM E AA 15° AR:7° (mm) Designation 0D 0d 0d1 I L M ap HRMM 0820HR-M10 2 20 18 10.5 30 51 M10 1 0.06 0821HR-M10 2 21 18 10.5 30 51 M10 1 0.06 0825HR-M12 3 25 23 12.5 35 59 M12 1 0.11 0826HR-M12 3 26 23 12.5 35 59 M12 1 0.11 0828HR-M12 3 28 23 12.5 35 59 M12 1 0.12 0832HR-M16 4 32 29 17 40 67 M16 1 0.21 0833HR-M16 4 33 29 17 40 67 M16 1 0.21 0835HR-M16 4 35 29 17 40 67 M16 1 0.23 0840HR-M16 5 40 29 17 40 67 M16 1 0.25 O Available inserts WDKT-MH i) Cermet Coated Uncoated Designation 0 0 CO z z i£o £ £m S cof oi-ooi-co oo O ZZZZCLCLCLCLCLCLCLCLCL A o 301 1 ° tn o i page WDKT 080316ZDSR-MH E27 O Available adaptor Designation Available adaptor HRMM 0820HR-M10 MAT-M10 0821HR-M10 0825HR-M12 MAT-M12 0826HR-M12 0828HR-M12 0832HR-M16 MAT-M16 0833HR-M16 0835HR-M16 0840HR-M16 Designation: HRMM0820HR-M10 Modular head threading measure size (M10) Adaptor spec.: MAT-M10-030-S20S Adaptor threading measure (M10) O Parts Specification Screw Clamp Clamp screw C-ring Wrench Wrench 02O 04O FTNA0306 Q Available inserts E27 O Available adaptor E371 E372 Milling 297
