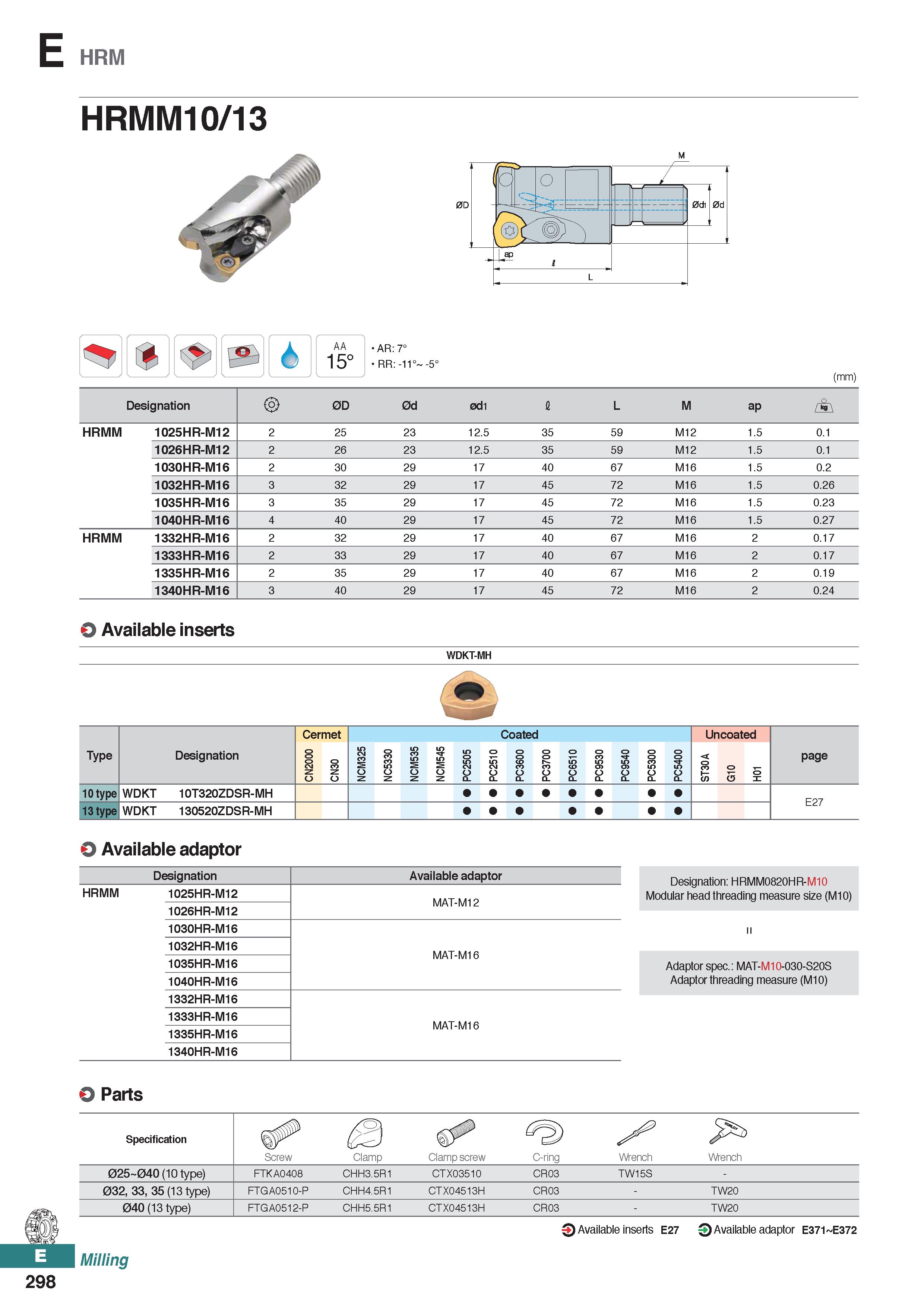

E HRM % & 6 AA 15° AR:7° (mm) Designation 0D 0d 0d1 I L M ap / A HRMM 1025HR-M12 2 25 23 12.5 35 59 M12 1.5 0.1 1026HR-M12 2 26 23 12.5 35 59 M12 1.5 0.1 1030HR-M16 2 30 29 17 40 67 M16 1.5 0.2 1032HR-M16 3 32 29 17 45 72 M16 1.5 0.26 1035HR-M16 3 35 29 17 45 72 M16 1.5 0.23 1040HR-M16 4 40 29 17 45 72 M16 1.5 0.27 HRMM 1332HR-M16 2 32 29 17 40 67 M16 2 0.17 1333HR-M16 2 33 29 17 40 67 M16 2 0.17 1335HR-M16 2 35 29 17 40 67 M16 2 0.19 1340HR-M16 3 40 29 17 45 72 M16 2 0.24 O Available inserts WDKT-MH Cermet Coated Uncoated Type Designation CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A G10 H01 page 10 type WDKT 10T320ZDSR-MH E27 13 type WDKT 130520ZDSR-MH O Available adaptor Designation Available adaptor HRMM 1025HR-M12 MAT-M12 1026HR-M12 1030HR-M16 MAT-M16 1032HR-M16 1035HR-M16 1040HR-M16 1332HR-M16 MAT-M16 1333HR-M16 1335HR-M16 1340HR-M16 Designation: HRMM0820HR-M10 Modular head threading measure size (M10) Adaptor spec.: MAT-M10-030-S20S Adaptor threading measure (M10) O Parts Specification Screw Clamp Clamp screw C-ring Wrench Wrench 025 04O (10 type) FTKA0408 CHH3.5R1 CTX03510 CR03 TW15S - 032, 33, 35 (13 type) FTGA0510-P CHH4.5R1 CTX04513H CR03 - TW20 04O (13 type) FTGA0512-P CHH5.5R1 CTX04513H CR03 - TW20 Milling Q Available inserts E27 0 Available adaptor E371 E372 298
