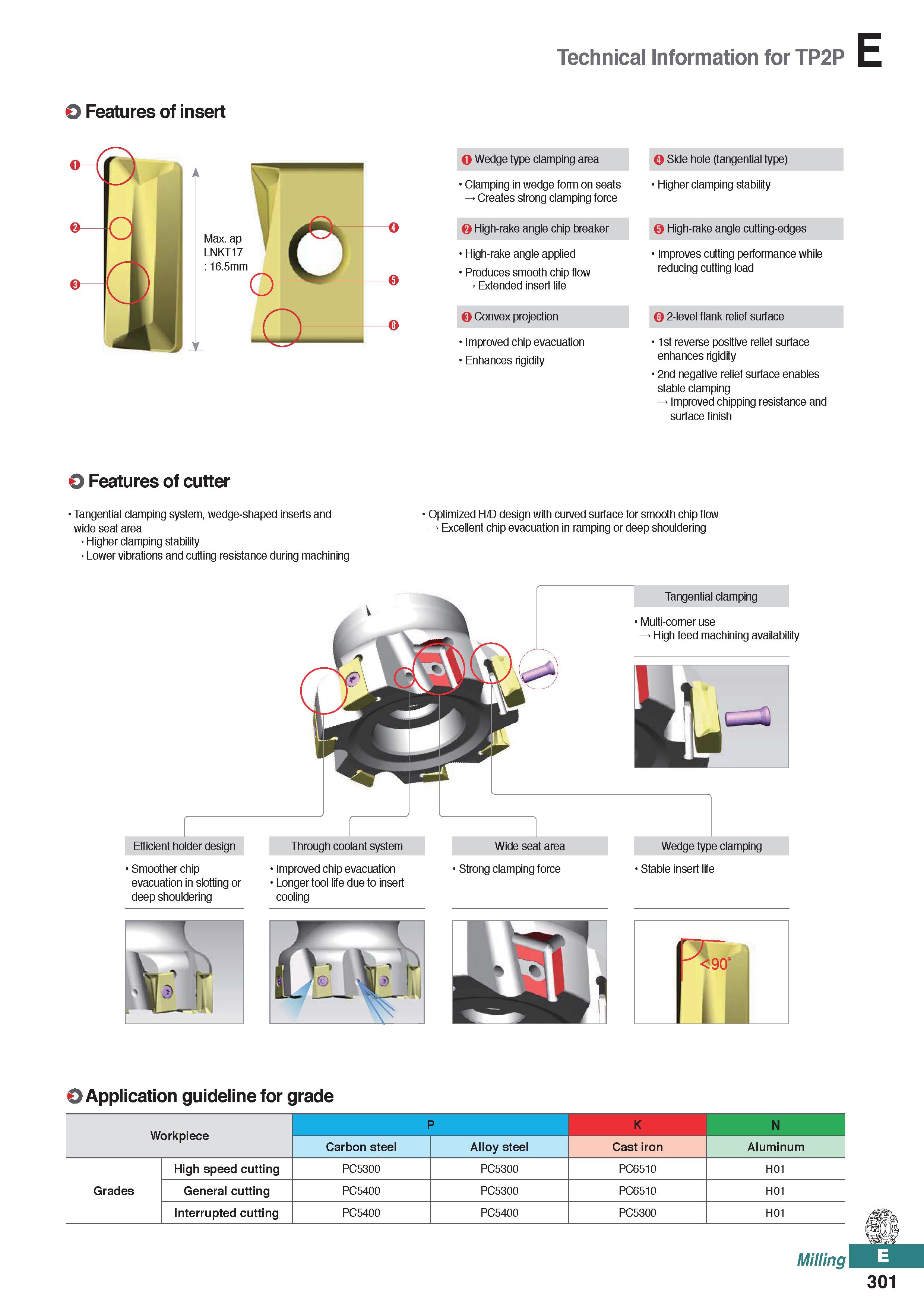

Technical Information for TP2P 0 Features of insert Max. ap LNKT17 : 16.5mm O Wedge type clamping area Side hole (tangential type) Clamping in wedge form on seats Creates strong clamping force Higher clamping stability 0 High-rake angle chip breaker 0 High-rake angle cutting-edges High-rake angle applied Produces smooth chip flow Extended insert life Improves cutting performance while reducing cutting load Convex projection 0 2-level flank relief surface Improved chip evacuation Enhances rigidity 1st reverse positive relief surface enhances rigidity 2nd negative relief surface enables stable clamping Improved chipping resistance and surface finish O Features of cutter Tangential clamping system, wedge-shaped inserts and wide seat area Higher clamping stability Lower vibrations and cutting resistance during machining Optimized H/D design with curved surface for smooth chip flow Excellent chip evacuation in ramping or deep shouldering Tangential clamping Multi-corner use High feed machining availability Efficient holder design Through coolant system Wide seat area Wedge type clamping Smoother chip Improved chip evacuation Strong clamping force Stable insert life evacuation in slotting or Longer tool life due to insert deep shouldering cooling 0 Application guideline for grade Workpiece P K N Carbon steel Alloy steel Cast iron Aluminum Grades High speed cutting PC5300 PC5300 PC6510 H01 General cutting PC5400 PC5300 PC6510 H01 Interrupted cutting PC5400 PC5400 PC5300 H01 Milling 301
