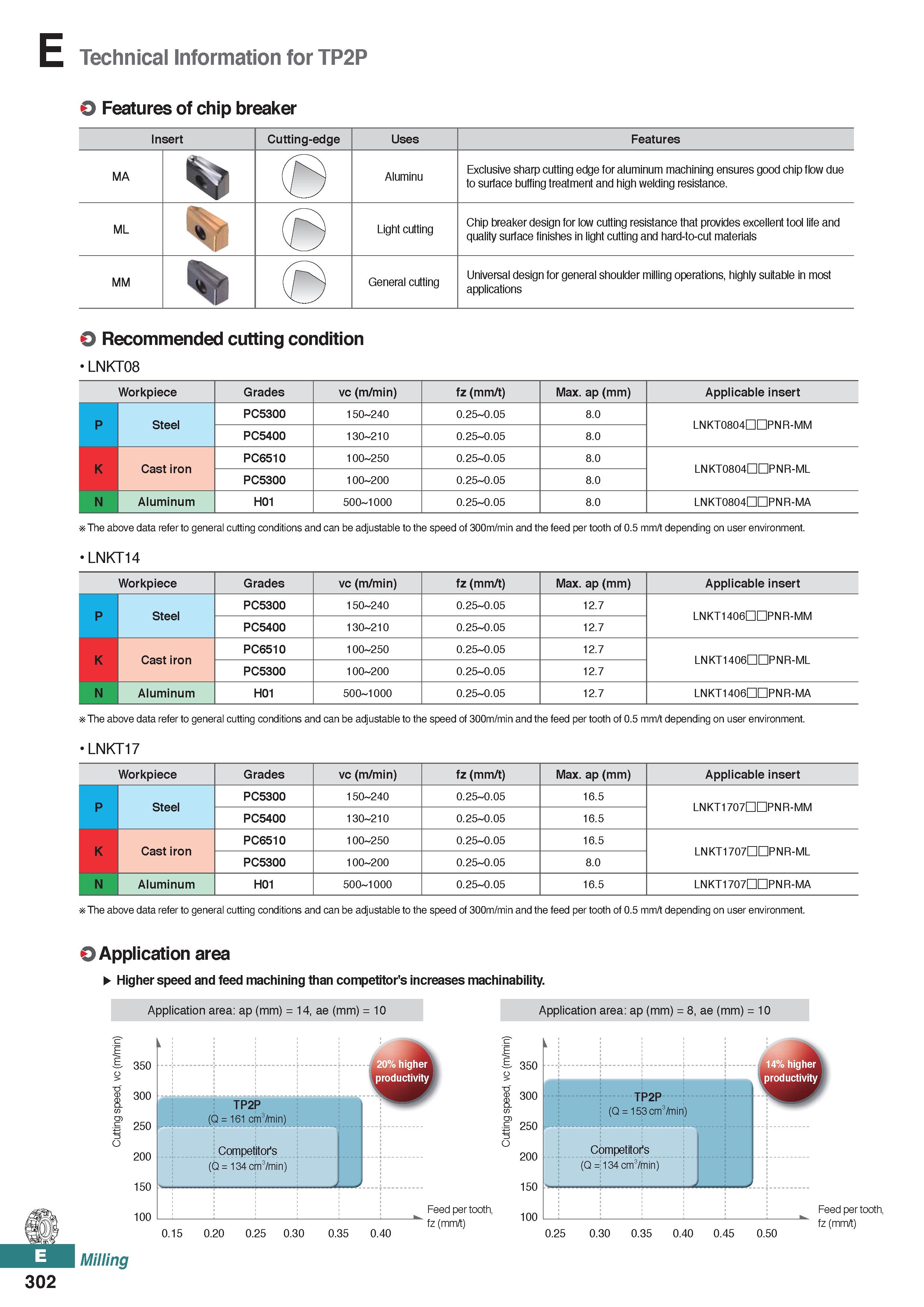

E Technical Information for TP2P O Features of chip breaker Insert Cutting-edge Uses Features MA Aluminu Exclusive sharp cutting edge for aluminum machining ensures good chip flow due to surface buffing treatment and high welding resistance. ML % Light cutting Chip breaker design for low cutting resistance that provides excellent tool life and quality surface finishes in light cutting and hard-to-cut materials MM % General cutting Universal design for general shoulder milling operations, highly suitable in most applications Recommended cutting condition LNKT08 Workpiece Grades vc (m/min) fz (mm/t) Max. ap (mm) Applicable insert P Steel PC5300 150 240 0.25 0.05 8.0 LNKT0804DDPNR-MM PC5400 130 210 0.25 0.05 8.0 K Cast iron PC6510 100 250 0.25 0.05 8.0 LNKT0804DDPNR-ML PC5300 100 200 0.25 0.05 8.0 N Aluminum H01 500 1000 0.25 0.05 8.0 LNKT0804DDPNR-MA The above data refer to general cutting conditions and can be adjustable to the speed of 300m/min and the feed per tooth of 0.5 mm/t depending on user environment. LNKT14 Workpiece Grades vc (m/min) fz (mm/t) Max. ap (mm) Applicable insert P Steel PC5300 150 240 0.25 0.05 12.7 LNKT1406DDPNR-MM PC5400 130 210 0.25 0.05 12.7 K Cast iron PC6510 100 250 0.25 0.05 12.7 LNKT1406DDPNR-ML PC5300 100 200 0.25 0.05 12.7 N Aluminum H01 500 1000 0.25 0.05 12.7 LNKT1406DDPNR-MA The above data refer to general cutting conditions and can be adjustable to the speed of 300m/min and the feed per tooth of 0.5 mm/t depending on user environment. LNKT17 Workpiece Grades vc (m/min) fz (mm/t) Max. ap (mm) Applicable insert P Steel PC5300 150 240 0.25 0.05 16.5 LNKT1707DDPNR-MM PC5400 130 210 0.25 0.05 16.5 K Cast iron PC6510 100 250 0.25 0.05 16.5 LNKT1707DDPNR-ML PC5300 100 200 0.25 0.05 8.0 N Aluminum H01 500 1000 0.25 0.05 16.5 LNKT1707DDPNR-MA The above data refer to general cutting conditions and can be adjustable to the speed of 300m/min and the feed per tooth of 0.5 mm/t depending on user environment. 302 O Application area Higher speed and feed machining than competitor's increases machinability. Application area: ap (mm) = 14, ae (mm) = 10 350 300 sp g ting 250 utt C 200 150 100 Milling TP2P (Q = 161 cm3/min) Competitor's (Q = 134 cm3/min) 0.15 0.20 0.25 0.30 0.35 0.40 Application area: ap (mm) = 8, ae (mm) = 10 (m 350 c > peed,300 sp g ting 250 utt C 200 Feed per tooth, fz (mm/t) 150 100 0.25 0.30 0.35 0.40 0.45 0.50 Feed per tooth, fz (mm/t)
