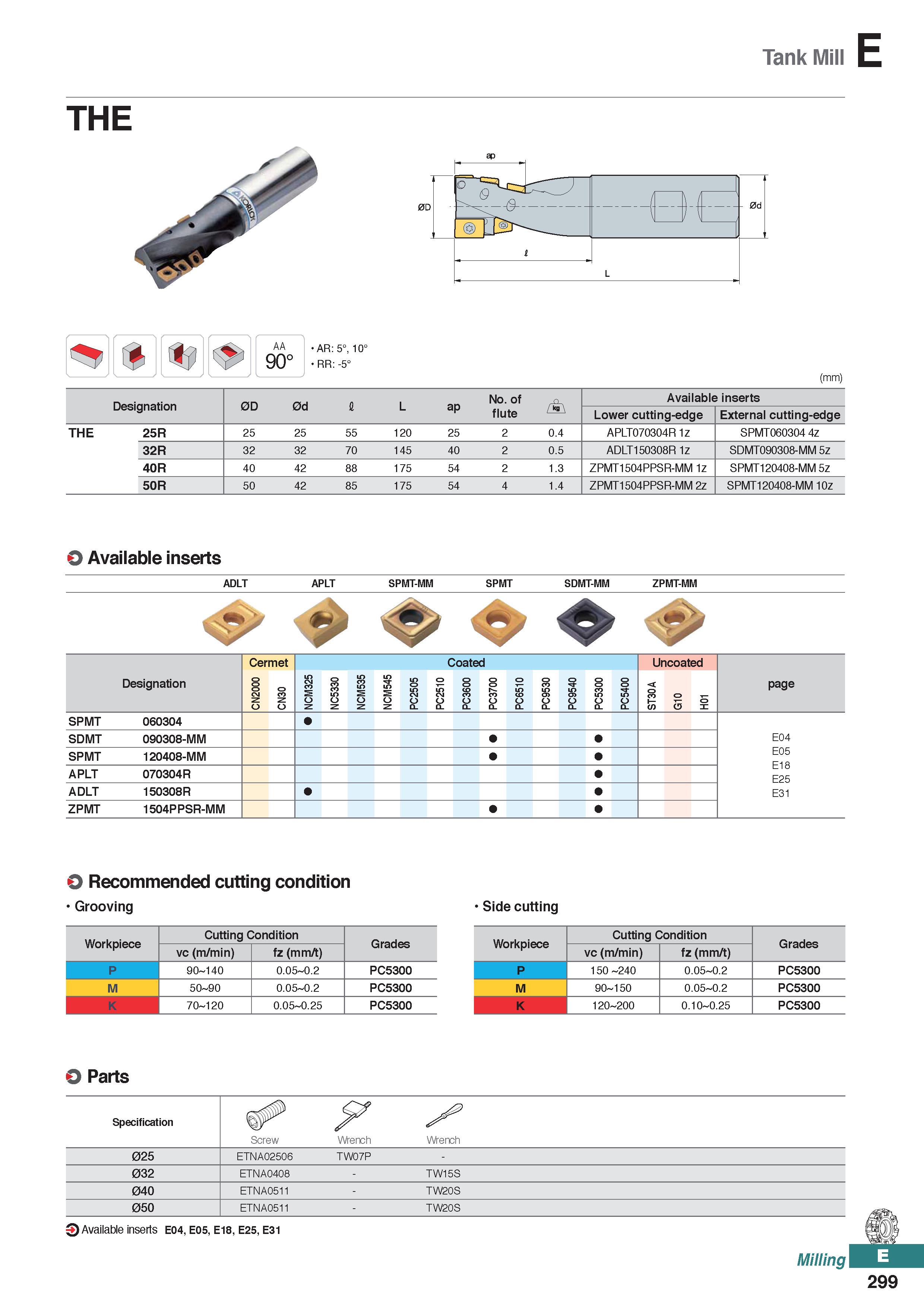

Tank Mill E AA 90° AR: 5°, 10° RR: -5° (mm) Designation 0D 0d I L ap No. of flute Available inserts Lower cutting-edge External cutting-edge THE 25R 25 25 55 120 25 2 0.4 APLT070304R 1z SPMT060304 4z 32R 32 32 70 145 40 2 0.5 ADLT150308R 1z SDMT090308-MM 5z 40R 40 42 88 175 54 2 1.3 ZPMT1504PPSR-MM 1z SPMT120408-MM 5z 50R 50 42 85 175 54 4 1.4 ZPMT1504PPSR-MM 2z SPMT120408-MM 10z O Available inserts ADLT APLT SPMT-MM SPMT SDMT-MM ZPMT-MM Cermet Coated Uncoated Designation CN2000 CN30 50 I 8 S in CC z z 55 34 55 MM CC z z 50 01 55 22 CC Q- CL PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 A o 3 T tn 01 10 G H0 page SPMT 060304 E04 E05 E18 E25 E31 SDMT 090308-MM SPMT 120408-MM APLT 070304R ADLT 150308R ZPMT 1504PPSR-MM O Recommended cutting condition Grooving Side cutting Workpiece Cutting Condition Grades Workpiece Cutting Condition Grades vc (m/min) fz (mm/t) vc (m/min) fz (mm/t) P 90 140 0.05 0.2 PC5300 P 150 240 0.05 0.2 PC5300 M 50 90 0.05 0.2 PC5300 M 90 150 0.05 0.2 PC5300 70 120 0.05 0.25 PC5300 K 120 200 0.10 0.25 PC5300 O Parts Specification Screw y Wrench Wrench 025 ETNA02506 TW07P - 032 ETNA0408 - TW15S 04O ETNA0511 - TW20S 05O ETNA0511 - TW20S Q Available inserts E04, E05, E18, E25, E31 Milling 299
